Запчасти Case IH 1480 (10-47) - HYDRAULICS, HEADER LIFT VALVE, SERIAL NO. 24000 AND BELOW (07) - HYDRAULICS

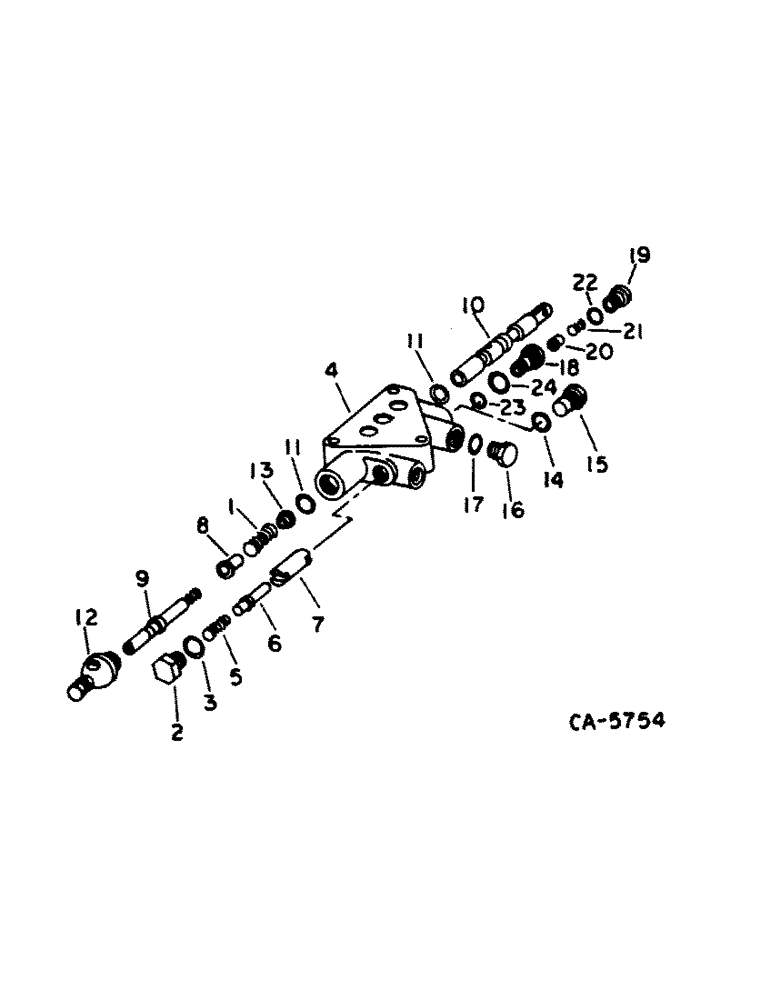

Схема запчастей Case IH 1480 - (10-47) - HYDRAULICS, HEADER LIFT VALVE, SERIAL NO. 24000 AND BELOW (07) - HYDRAULICS
19
20
7
8
2
12
4
23
24
17
18
1
16
14
21
6
9
15
3
5
10
22
11
13
11

№

Артикул

Название

Примечание

Количество

183656C91

VALVE

ASSY, includes ref. nos. 1 thru 17

1шт.

1

583353R1

SPRING, spool centering

1шт.

2

159801C1

PLUG

1шт.

3

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

4

BODY, not serviced separately, order value assy, 183656C91

1шт.

5

159382C1

SPRING

lockout

1шт.

6

159380C91

VALVE

POPPET ASSY

1шт.

7

173859C1

PLUNGER

lockout

1шт.

8

937195R1

SPRING WASHER

spool spring

1шт.

9

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-NF x 3/4 type 5

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

10

SPOOL, single acting, not serviced separately, order value assy, 183656C91

1шт.

11

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

2шт.

12

937198R91

CAP

ASSY

1шт.

13

937194R1

SPRING WASHER

spool spring

1шт.

14

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

1шт.

15

588342R1

PLUG

hex, not for use w/AHC

1шт.

16

9410359

PLUG

3/4-16, not for use w/AHC

1шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.087 x .644 ID, not for use w/AHC

1шт.

18

173827C91

VALVE

PLUG ASSY, check, includes ref. nos. 19 thru 24, for use w/AHC

1шт.

19

PLUG, slotted, not serviced separately, order plug assy, 173827C91

1шт.

20

387436R1

TAPPET

PLUNGER, lift check (Replaces FH30366)

1шт.

21

387437R1

SPRING

lift check

1шт.

22

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

3/32 x 1/2 ID

1шт.

23

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3/32 x 9/16 ID

1шт.

24

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID

1шт.

159383C91

PACKAGE

KIT, consists of

1шт.

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32 x 5/8

4шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3/32 x 9/16

4шт.

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

3/32 x 1/2

4шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4

4шт.

159380C91

VALVE

POPPET ASSY

1шт.

Выбрано товаров: 33
