Запчасти Case IH 1480 (10-46) - HYDRAULICS, HEADER AUTOMATIC FLOW CONTROL VALVE, SERIAL NO. 24000 AND BELOW (07) - HYDRAULICS

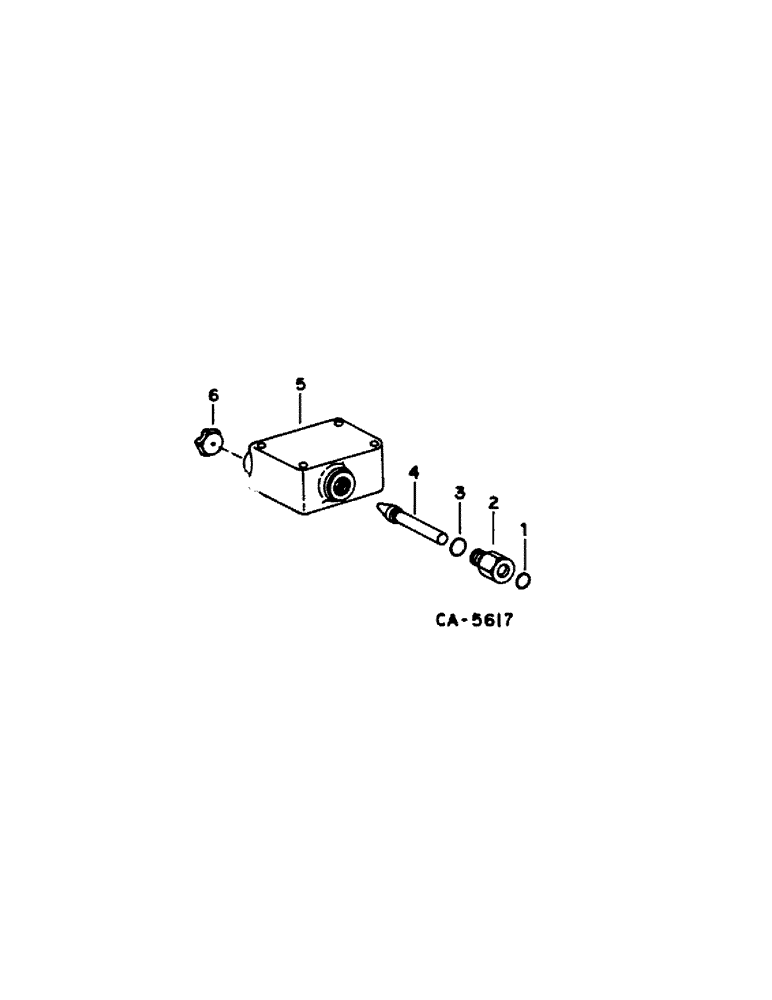

Схема запчастей Case IH 1480 - (10-46) - HYDRAULICS, HEADER AUTOMATIC FLOW CONTROL VALVE, SERIAL NO. 24000 AND BELOW (07) - HYDRAULICS
6
3
5
4
1
2

Артикул

Название

Примечание

Количество

155199C91

VALVE

ASSY, header auto flow control, includes nos. 1 thru 6

1шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, 5/16 x 2-1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/32 x 3/8 ID class 5

1шт.

2

937202R1

PLUG

metering pin

1шт.

3

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

3/32 x 1/2 ID class 5

1шт.

4

937204R1

PIN

metering

1шт.

5

BODY, not serviced separately, order valve assy, 155199C91

1шт.

6

937201R1

PLUG

VENT

1шт.

Выбрано товаров: 9
