Запчасти Case IH 1480 (02-03) - MISCELLANEOUS, PULLEY, BELT, SPROCKET & CHAIN DIAGRAM, RIGHT SIDE, S/N 24000 AND BELOW Accessories & Attachments / Miscellaneous

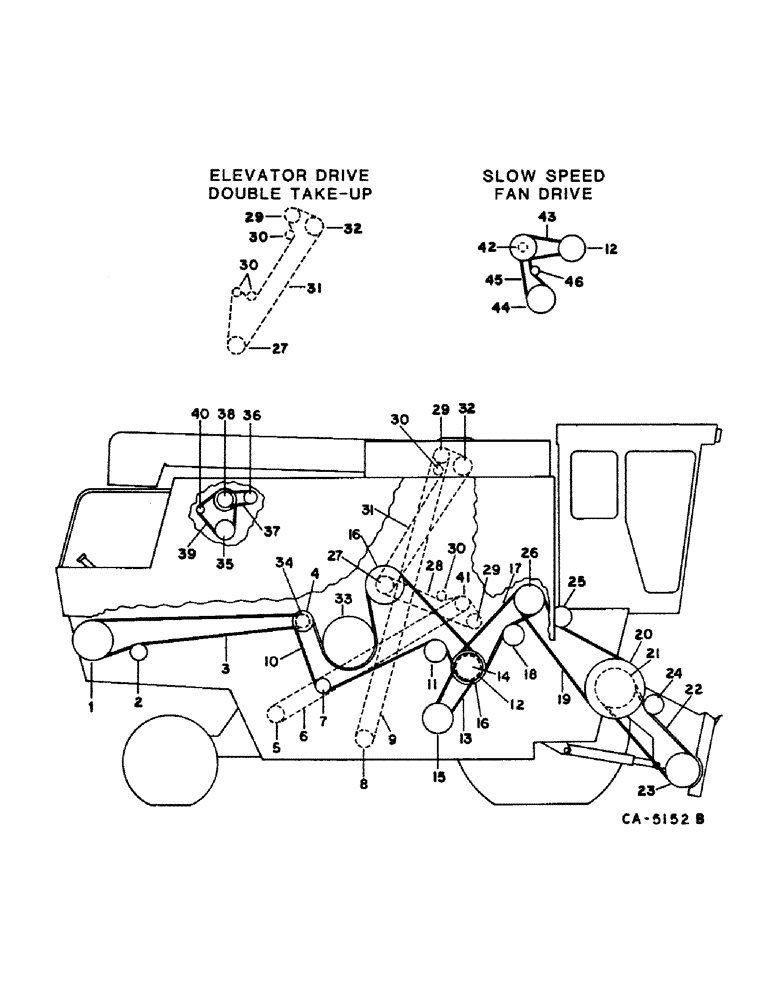

Схема запчастей Case IH 1480 - (02-03) - MISCELLANEOUS, PULLEY, BELT, SPROCKET & CHAIN DIAGRAM, RIGHT SIDE, S/N 24000 AND BELOW Accessories & Attachments / Miscellaneous
34
3
7
5
39
37
30
12
20
17
24
19
22
12
29
30
36
1
18
15
29
27
28
42
8
44
43
27
23
30
33
10
16
13
6
16
25
35
4
26
40
29
31
9
46
32
31
14
32
2
21
30
11
38
45
41

Артикул

Название

Примечание

Количество

1

557917R92

PULLEY

ASSY, straw spreader driven, 15.9 in. OD, 403.9mm OD

1шт.

2

564745R91

PULLEY

spreader tightener drive, 5.50 in. OD, 158.8mm OD

1шт.

3

153359C1

V-BELT,0.63" W x 186.87" L

Straw Spreader Drive 0.63" W x 186.87" L

1шт.

4

195161C1

PULLEY

ASSY, beater drive, 8.38 in. OD, 212.9mm OD

1шт.

5

186720C1

SPROCKET ASSY.

SPROCKET, tailing elevator boot, 6T, Serial Range: -14000

1шт.

5

1302200C1

SPROCKET ASSY.

SPROCKET, tailings elevator boot, 7T, Serial Range: 14001-24000

1шт.

6

192736C93

ELEVATOR CHAIN,C550, 111 Links x 41.4mm = 4595.4mm

CONVEYOR, tailing elevator, Serial Range: -14000

1шт.

6

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR, tailings elevator, Serial Range: 14001-24000

1шт.

7

673214R91

PULLEY

elevator drive fixed idler, 7.3 in. OD, 185.4mm OD

1шт.

8

186720C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 6T, Serial Range: -14000

1шт.

8

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator boot, 7T, Serial Range: 14001-24000

1шт.

9

192840C91

ELEVATOR CHAIN,C550, 155 Links x 41.4mm = 6417mm

CONVEYOR, grain elevator, for grain and corn, Serial Range: -14000

1шт.

9

1302195C91

ELEVATOR CHAIN,CA550, 156 Links x 41.4mm = 6458.4mm

ASSY, grain elevator, for grain and corn, Serial Range: 14001-24000

1шт.

9

185435C91

CONVEYOR

ASSY, raised leveling auger, for rice, Serial Range: -14000

1шт.

9

1302199C91

CONVEYOR

ASSY, raised leveling auger, for rice, Serial Range: 14001-24000

1шт.

10

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, OC 0.879" W x 255.99" L

1шт.

11

673214R91

PULLEY

elevator drive, 7.3 in. OD, 185.4mm OD

1шт.

12

PULLEY ASSY, fan drive, refer to group 24 under fan drive

1шт.

13

195396C2

BELT,31.80 mm W x 1881.58 mm L

V-BELT , Fan drive, OC 31.80 mm W x 1881.58 mm L

1шт.

14

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, elevator jackshaft drive, 9.75 in. OD, 247.7mm OD

1шт.

15

PULLEY ASSY, fan driven fixed, refer to group 24 under fan drive

1шт.

16

PULLEY ASSY, refer to group 20 under belt drive RH side

1шт.

17

188213C1

BELT

fan jackshaft drive, 127 in. OC, 3225.8mm OC

1шт.

18

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan jackshaft drive idler, 8-3/4 in. OD, 222.2mm OD

1шт.

19

194528C1

BELT,0.879" W x 143.37" L, 3 Ribs

V-BELT , Feeder drive, OC 0.879" W x 143.37" L, 3 Ribs

1шт.

20

197387C1

PULLEY

feeder driven, 25.56 in. OD, 573.0mm OD, Serial Range: -14000

1шт.

20

1305297C1

PULLEY

feeder driven, 22.56 in. OD, 573.0mm OD, Serial Range: 14001-24000

1шт.

21

176575C1

PULLEY

feeder jackshaft drive, 16.70 in. OD, 424.2mm OD, Serial Range: -14000

1шт.

21

1305288C1

PULLEY

feeder jackshaft drive, 16.70 in. OD, 424.2mm OD, Serial Range: -14000

1шт.

21

1305288C1

PULLEY

feeder jackshaft drive, 16.70 in. OD, 424.2mm OD, Serial Range: 14001-24000

1шт.

22

1313097C3

V-BELT,22.33 mm W x 3706.69 mm L

Feeder Jackshaft, for 54.5 Feeder 22.33 mm W x 3706.69 mm L

1шт.

22

1308489C2

V-BELT,22.33 mm W x 3990.69 mm L

Feeder Jackshaft Drive, for 60 in. Feeder 22.33 mm W x 3990.69 mm L

1шт.

23

173573C4

PULLEY, feeder jackshaft driven, 13.5 in. OD, 342.9mm OD

1шт.

24

176579C1

IDLER

jackshaft drive tightener, 8.0 in. OD, 203.2mm OD

1шт.

25

174757C1

PULLEY

feeder drive idler, 8.0 in. OD, 203.2mm OD

1шт.

26

193999C1

PULLEY

feeder drive, 12.0 in. OD, 304.88mm OD

1шт.

27

192139C2

SPROCKET

ASSY, grain and tailings elevator drive, 25T

2шт.

28

CHAIN ASSY, tailings elevator drive, use 155 links from a 10 ft. roll marked 1791D and one connecting link 1310D

1шт.

29

186720C1

SPROCKET ASSY.

SPROCKET, grain elevator head, 6T, Serial Range: -14000

1шт.

29

1302200C1

SPROCKET ASSY.

SPROCKET, grain elevator, 7T, Serial Range: 14001-24000

1шт.

29

188188C1

SPROCKET ASSY.

SPROCKET, grain and tailings elevator driven, 27T

1шт.

30

631905R91

SPROCKET

grain and tailings elevator drive idler, 17T

1шт.

31

CHAIN ASSY, grain elevator drive, use 255 links from a 10 ft roll marked 1791D and one connectings link 1310D, for grain and corn, Serial Range: -14000

1шт.

31

CHAIN ASSY, elevator drive, use 285 links from 10 ft roll marked 1791D and one connecting link 1310D, for grain and corn, Serial Range: 14001-24000

1шт.

31

CHAIN ASSY, for raised elevator drive, use 321 links from 10 ft roll marked 1791D and one connecting link 1310D, for rice

1шт.

32

188189C1

SPROCKET ASSY.

SPROCKET, grain elevator driven, 33T, for grain and corn

1шт.

32

183177C1

DRIVE SPROCKET

SPROCKET, grain elevator driven, 42T, for rice

1шт.

33

193682C1

PULLEY

ASSY, shaker shaft driven, 25.0 in. OD, 635.0mm OD

1шт.

34

19513C2

PULLEY ASSY, straw spreader drive, 5.0 in. OD, 127.0mm OD

1шт.

35

DAMPER ASSY, vibration, refer to Eng-5 parts catalog

1шт.

36

117820C1

PULLEY

ASSY, compressor

1шт.

37

874097C1

V-BELT,39.50" L

Compressor 39.50" L

1шт.

38

691562C1

PULLEY

water pump and air conditioner

1шт.

39

537072R91

SET OF BELTS

Matched, Engine fan

1шт.

40

107686C1

PULLEY

alternator-generator

1шт.

41

165292C1

SPROCKET ASSY.

SPROCKET, tailings elevator, 6T, Serial Range: -14000

1шт.

41

168683C1

SPROCKET

tailings elevator, 7T, Serial Range: 14001-24000

1шт.

41

188188C1

SPROCKET ASSY.

SPROCKET, tailings elevator driven, 27T

1шт.

42

181360C1

PULLEY ASSY.

PULLEY ASSY, slow speed fan jackshaft, 5 in. OD, 127.0mm OD

1шт.

43

181359C1

BELT,1.25" W x 66.54" L

V-BELT , Fan jackshaft, OC 1.25" W x 66.54" L

1шт.

44

564569R11

PULLEY ASSY.

PULLEY ASSY, fan hub, 12.68 in. OD, 322.1mm OD

1шт.

45

610521R1

V-BELT

Slow speed fan jackshaft, 76 in. OC, 1930.4mm OC

1шт.

46

564745R91

PULLEY

idler, 5.5 in. OD, 139.7mm OD

1шт.
