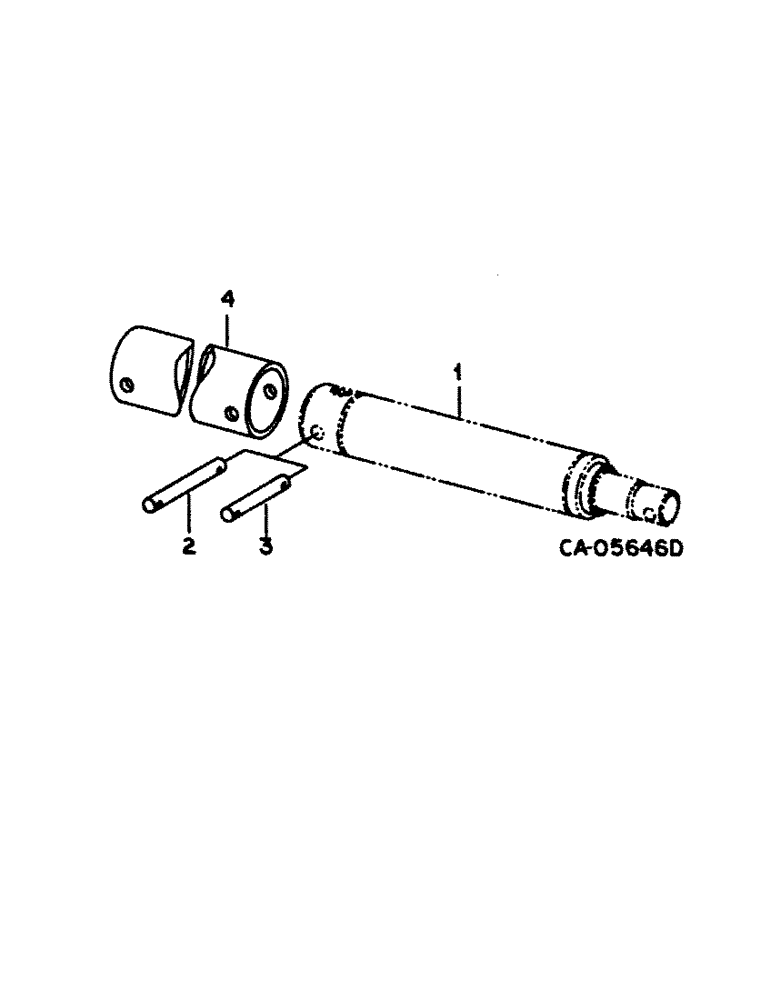

Запчасти Case IH 1480 (10-42) - HYDRAULICS, HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSY, for service parts refer to cyl-1 section A

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1480 CASE IH AXIAL-FLOW COMBINE, ASSY (1/78-12/84)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

195822C1

PIN,25.4mm OD x 228.6mm L

lift cylinder, used w/third cylinder

2шт.

3

573762R1

PIN,25.4mm OD x 130.97mm L

lift cylinder, 2 used w/third cylinder, 4 used w/o third cylinder

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

4

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

SPACER, extension, 12.23 in., 310.75mm, replaces 1320145C1, for use w/rock trap, 2 used w/o third cylinder, 3 used w/third cylinder

1шт.

224718C92

SEAL KIT

KIT, cylinder service

1шт.
