Запчасти Case IH 1480 (10-42[1]) - STEERING CYLINDER (07) - HYDRAULICS

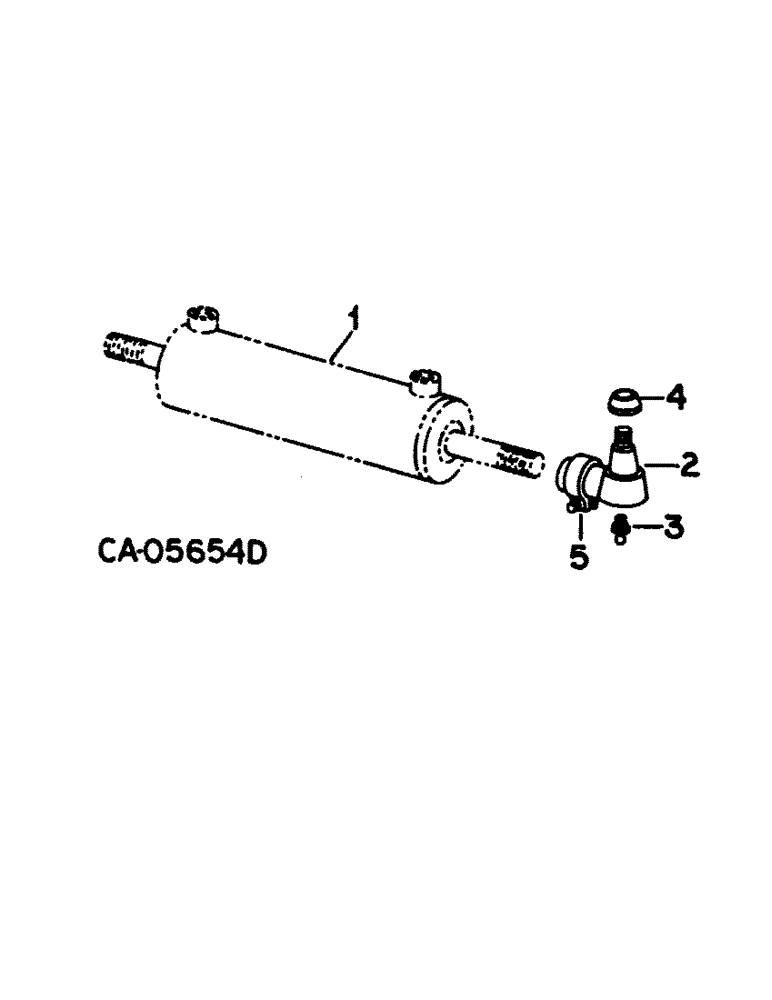

Схема запчастей Case IH 1480 - (10-42[1]) - STEERING CYLINDER (07) - HYDRAULICS
5
1
2
4
3

Артикул

Название

Примечание

Количество

1

127913C92

CYLINDER

ASSY, for service parts refer to cyl-1 secton B

1шт.

2

186140C91

BALL JOINT

SOCKET ASSY, end, includes ref nos. 4 and 5

2шт.

26963R1

NUT,7/8"-14, G8

NUT, 7/8-NF slt type 8

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

4

110373R1

DUST CAP

SEAL, end socket

2шт.

5

446308C91

CLAMP

ASSY, socket end

2шт.

73661C92

SEAL KIT

KIT, cylinder service

1шт.

Выбрано товаров: 8
