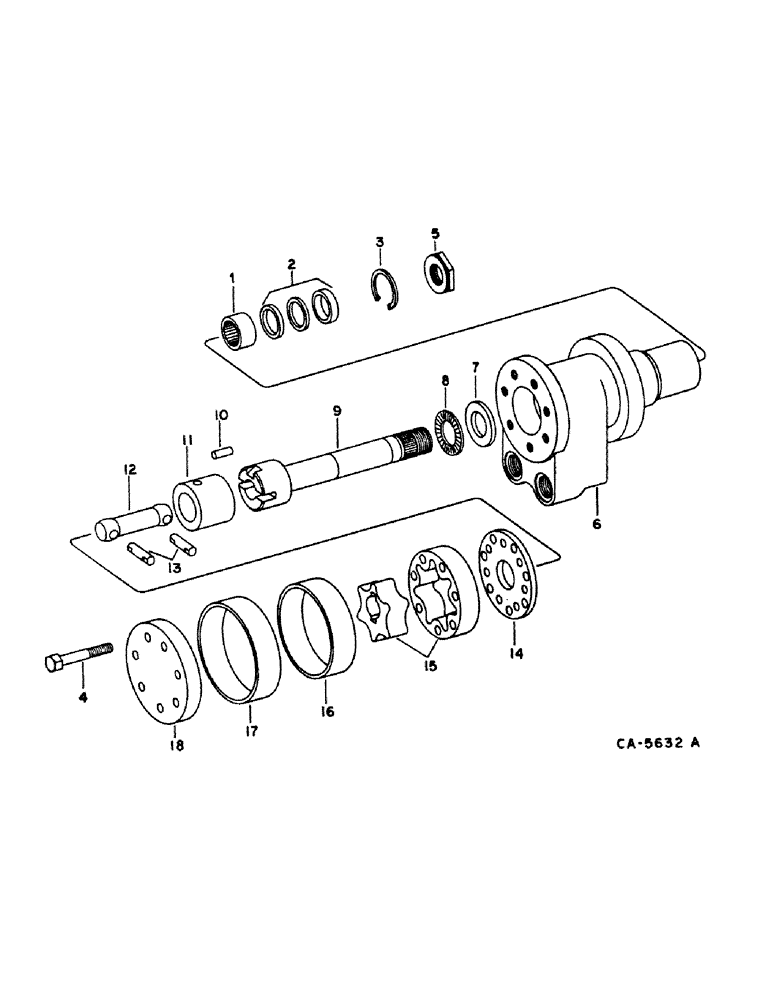

Запчасти Case IH 1480 (10-39) - HYDRAULICS, STEERING HAND PUMP, SERIAL NO. 24000 AND BELOW (07) - HYDRAULICS

378578R97

PUMP

ASSY, steering hand, includes ref. nos. 1 thru 20

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1

10026R1

BEARING

needle

1шт.

2

A47038

SEAL KIT,Pump Shaft

PACKAGE, steering hand pump service

1шт.

3

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

4

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

pump end cover

7шт.

5

F19646

LOCK NUT,13/16"-20, Thin

NUT, coupling shaft wheel

1шт.

6

379694R91

BODY

PUMP BODY, w/bearing assy, includes ref. no. 1

1шт.

7

379785R1

THRUST WASHER

RACE, need thrust

1шт.

8

379783R91

THRUST BEARING

BEARING, needle thrust

1шт.

9

379784R1

SHAFT

coupling

1шт.

10

379700R1

PIN

pump spool

1шт.

11

COMMUTATOR, not serviced separately, order pump body assy, 379694R91

1шт.

12

379701R1

LINK

pump

1шт.

13

379693R1

PIN

pump link

2шт.

14

396545R1

PLATE

SPACER, pump

1шт.

15

379697R3

ROTOR

SET

1шт.

16

379781R1

BOOT

SEAL, motor

1шт.

17

379696R1

RING

RETAINER, seal

1шт.

18

379698R1

COVER

END, cover pump

1шт.

405785R91

PACKAGE, REPAIR

KIT, spring and vane

1шт.
