Запчасти Case IH 1480 (02-01) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, LEFT SIDE Accessories & Attachments / Miscellaneous

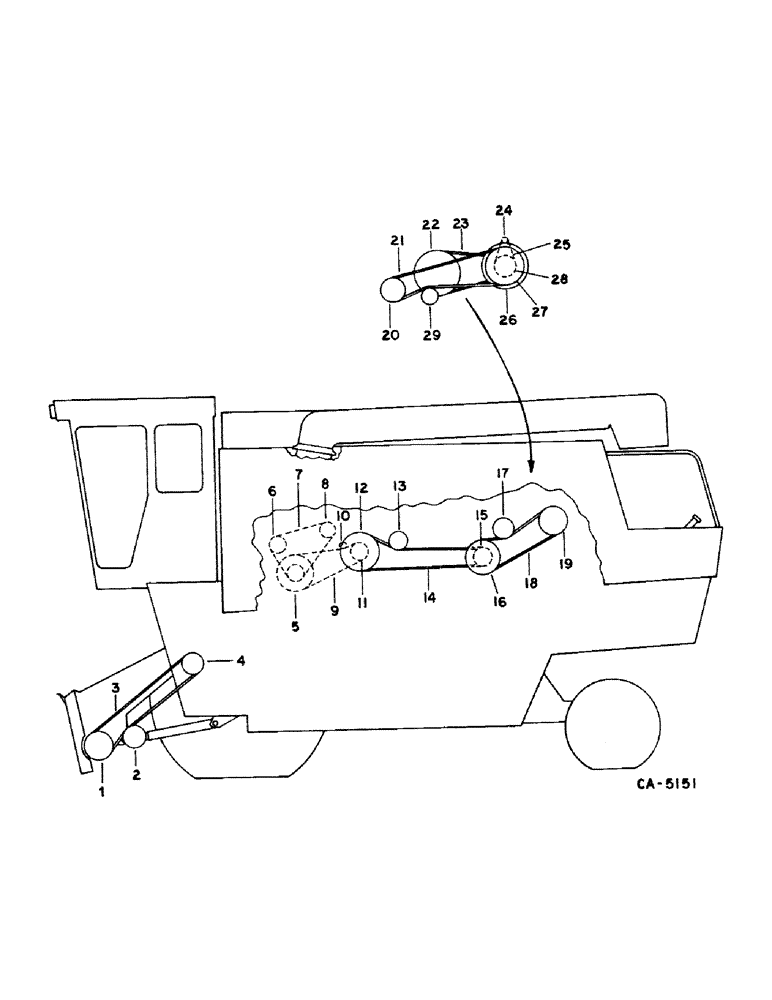

Схема запчастей Case IH 1480 - (02-01) - MISCELLANEOUS, PULLEY, BELT, SPROCKET AND CHAIN DIAGRAM, LEFT SIDE Accessories & Attachments / Miscellaneous
11
3
28
16
20
7
23
4
25
2
17
21
5
9
12
18
1
8
29
26
24
15
6
13
14
27
22
19

Артикул

Название

Примечание

Количество

1

176562C2

PULLEY

ASSY, feeder jackshaft driver, 13.5 in. OD, 342.9mm OD

1шт.

2

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, belt idler, 8.75 in. OD, 222.3mm OD

1шт.

3

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Hydraulic reel drive, for 54.5 in. feeder, OC 22.33 mm W x 3706.69 mm L

1шт.

3

197480C2

BELT,22.33 mm W x 3990.69 mm L

V-BELT , Hydraulic reel drive, for 60 in. feeder, OC 22.33 mm W x 3990.69 mm L

1шт.

4

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D., Serial Range: -24000

1шт.

4

187697C1

PULLEY ASSY.

PULLEY ASSY, pump driven, 7.13 in. OD x 3/4 in bore, Start Serial: 24001

1шт.

5

192511C2

SPROCKET ASSY.

SPROCKET ASSY, unloader drive, 43T and 57T

1шт.

6

192922C1

SPROCKET

ASSY, front auger driven, 43T

1шт.

7

CHAIN ASSY, grain tank auger drive, use 157 links from a 10 ft roll marked 1790D, 2 offset links 1303D and one connecting link 1301D

1шт.

8

192925C1

SPROCKET

ASSY, rear auger driven, 37T

1шт.

9

CHAIN ASSY, vertical auger drive, use 133 links from a 10 ft roll marked 1791D and one connecting link 1310D

1шт.

10

565442R91

SPROCKET

vertical auger chain tightener, 17T

1шт.

11

192199C2

SPROCKET ASSY.

SPROCKET ASSY, rear auger drive, 33T

1шт.

12

192967C1

PULLEY ASSY.

PULLEY ASSY, unloader jackshaft driven, 18.6 in. OD, 472.4mm OD

1шт.

13

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, unloader belt tightener, 8.75 in. OD, 222.3mm OD

1шт.

14

191291C1

BELT,0.879" W x 142.79" L

V-BELT , Unloader jackshaft drive, OC 0.879" W x 142.79" L

1шт.

15

192620C91

PULLEY

ASSY, auxiliary pump drive

1шт.

16

192943C1

PULLEY ASSY.

PULLEY ASSY, auxiliary pump driven, 11.65 in. OD, 295.9mm OD

1шт.

17

192865C1

PULLEY

ASSY, auxiliary pump idler, 8.0 in. OD, 203.2mm OD

1шт.

18

191288C2

BELT,0.879" W x 96.11" L

V-BELT , Auxiliary pump drive, OC 0.879" W x 96.11" L

1шт.

19

186701C1

PULLEY

auxiliary pump drive, serial no. 2899 and below

1шт.

19

196481C1

PULLEY

auxiliary pump drive, 9.25 in. OD, 235.0mm OD, Start Serial: 2900

1шт.

20

191463C1

PULLEY

separator drive, 11.0 in. OD, 279.4mm OD

1шт.

21

191244C1

BELT,0.63" W x 145.75" L, 3 Ribs

V-BELT , Separator drive, OC 0.630" W x 145.75" L, 3 Ribs

1шт.

22

185433C1

PULLEY

fixed variable, 18.5 in. OD, 469.9mm OD

1шт.

22

185417C91

PULLEY ASSY.

PULLEY ASSY, adjustable variable, 18.5 in. OD, 469.9mm OD

1шт.

23

193945C1

BELT

Rotor variable drive, 102 in. OC, 2590.8mm OC

1шт.

24

194337C1

SPROCKET

control, 8T

1шт.

25

CHAIN ASSY, variable drive, use 31 links from a 10 ft roll marked 569088R91 one connecting link 457113R91 and 2 offset links 457114R91

1шт.

26

193620C92

PULLEY ASSY.

PULLEY ASSY, rotor drive variable, 17.5 in. OD, 444.5mm OD

1шт.

26

193622C92

PULLEY ASSY.

PULLEY ASSY, rotor drive stationary, 17.5 in. OD, 444.5mm OD

1шт.

27

191453C1

PULLEY

separator jackshaft driven, 14.75 in. OD, 374.7mm OD, for use w/discharge beater

1шт.

27

181270C1

PULLEY

jackshaft driven, 15/15 in. OD, 384.8mm OD, for use w/straw chopper

1шт.

28

194464C2

SPROCKET

variable male, 25T

1шт.

29

174757C1

PULLEY

separator belt idler, 8.0 in. OD, 203.2mm OD

1шт.

Выбрано товаров: 35
