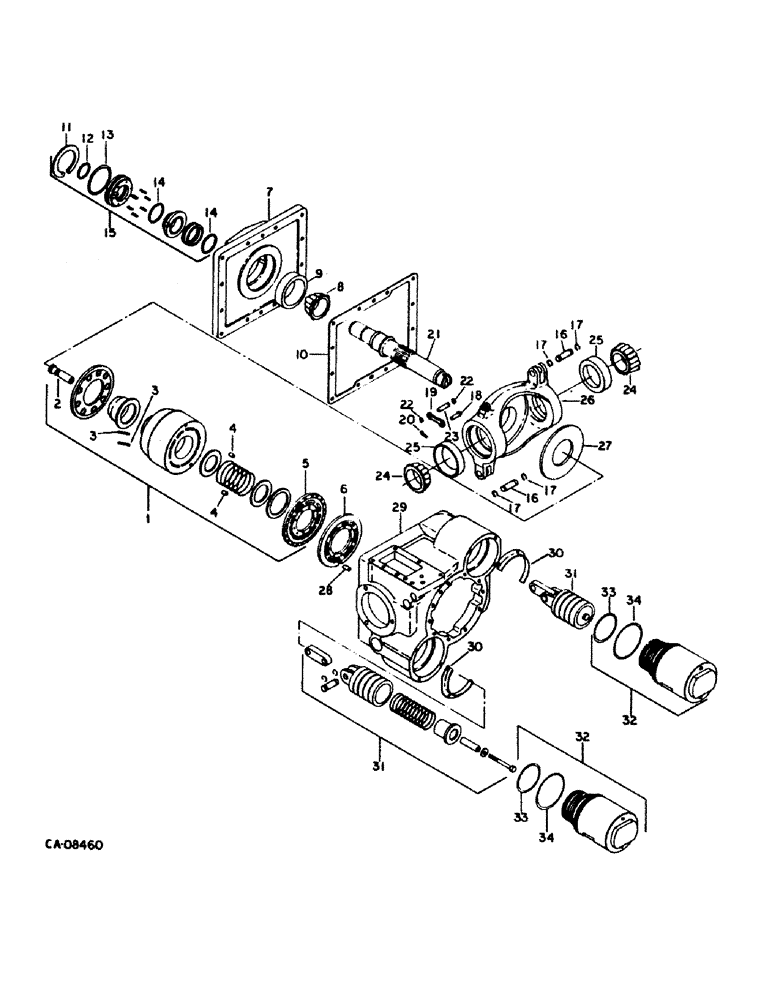

Запчасти Case IH 1480 (10-33) - HYDRAULICS, HYDROSTATIC MOTOR, 2 SPEED, EATON, CYLINDER BLOCK (07) - HYDRAULICS

1252342C93

MOTOR, HYDRAULIC

MOTOR ASSY, hydrostatic drive, renewed

1шт.

1958084C1

MOTOR, HYDRAULIC

HYDRAULIC MOTOR

1шт.

1958085C1

REMAN-HYDROSTAT MOTO

Remanufactured Hydrostatic Motor

1шт.

1958086C1

CORE-HYDROSTAT MOTOR

Return Number

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

283856C1

WASHER

WASHER, 17/32 x 1 x .188

1шт.

166506C1

GASKET,0.81mm Thk

GASKET, hydrostatic motor

1шт.

1

142392C92

KIT

KIT, rotating group

1шт.

2

142393C1

PISTON ASSY.

PISTON, cylinder block

9шт.

3

142394C1

PIN

PIN, pre-load dowl

6шт.

4

140754C1

PIN

PIN, bearing plate dowl

2шт.

5

142395C1

PLATE

PLATE, bearing

1шт.

6

142396C2

PLATE

PLATE, RH pump valve

1шт.

7

FLANGE, mounting, not serviced separately, order pump 1252342C93

1шт.

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

BOLT, 7/16 x 1-1/4 pln type 5

1шт.

8

636826R91

BEARING ASSY,44.45 mm ID x 51 mm OD x 25.4 mm

BEARING ASSY, input shaft cone

1шт.

9

ST987

BEARING CUP

BEARING, input shaft cup

1шт.

10

142399C1

GASKET

GASKET, mounting flange

1шт.

11

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

12

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

O-RING, 1-3/8 x 1-1/2 x 1/16 shaft seal

1шт.

13

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

O-RING, 2-9/16 x 2-3/4 x 3/32 shaft seal

1шт.

14

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING, 1-11/16 x 1-7/8 x 3/32 shaft seal

2шт.

15

142518C92

PACKAGE

KIT, shaft seal, consists of retainer (NSS), springs (NSS), seal (NSS), seal (NSS)

1шт.

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

24472R1

O-RING,0.07" Thk x 1.334" ID, -28, Cl 6, 90 Duro

O-RING

1шт.

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

O-RING

1шт.

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

O-RING

1шт.

16

140766C1

PIN,14.22mm OD x 39.12mm L

PIN, servo linkage

2шт.

17

28145R1

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

4шт.

18

(Not used this application)

1шт.

19

(Not used this application)

1шт.

20

(Not used this application)

1шт.

21

142390C1

SHAFT

SHAFT, input

1шт.

22

(Not used this application)

1шт.

23

(Not used this application)

1шт.

24

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

BEARING ASSY, trunnion cone

2шт.

25

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

BEARING, trunnion cup

2шт.

26

142401C1

HOUSING

HOUSING, variable swashplate, used with thrust plate 142388C1, Serial Range: -44000

1шт.

26

80365C1

HOUSING

HOUSING, variable swash plate, used with thrust plate 80369C1, Start Serial: 44001

1шт.

27

142403C1

PLATE

PLATE, thrust, thick, .230 x 4.92 in., Serial Range: -44000

1шт.

27

80369C1

PLATE

PLATE, thrust, thin, .031 x 4.93 in., Start Serial: 44001

1шт.

28

140754C1

PIN

PIN, pump valve plate dowl

1шт.

29

HOUSING, variable, not serviced separately, order pump 1252342C92

1шт.

30

142408C1

RETAINER

RETAINER, servo

2шт.

28144R1

HEX SOC SCREW,#8 - 32 x 3/8"

SCREW, #8 x 3/8 h/shd cap

1шт.

31

145308C1

PISTON

PISTON ASSY, servo, serviceable item is

2шт.

145309C1

PISTON

PISTON

1шт.

32

142407C1

KIT

KIT, servo sleeve

2шт.

33

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

O-RING, 3 x 3-1/4 x 1/8 class 5 servo piston

2шт.

34

285724R1

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

O-RING, 3-3/8 x 3-5/8 x 1/8 class 5 servo sleeve

2шт.
