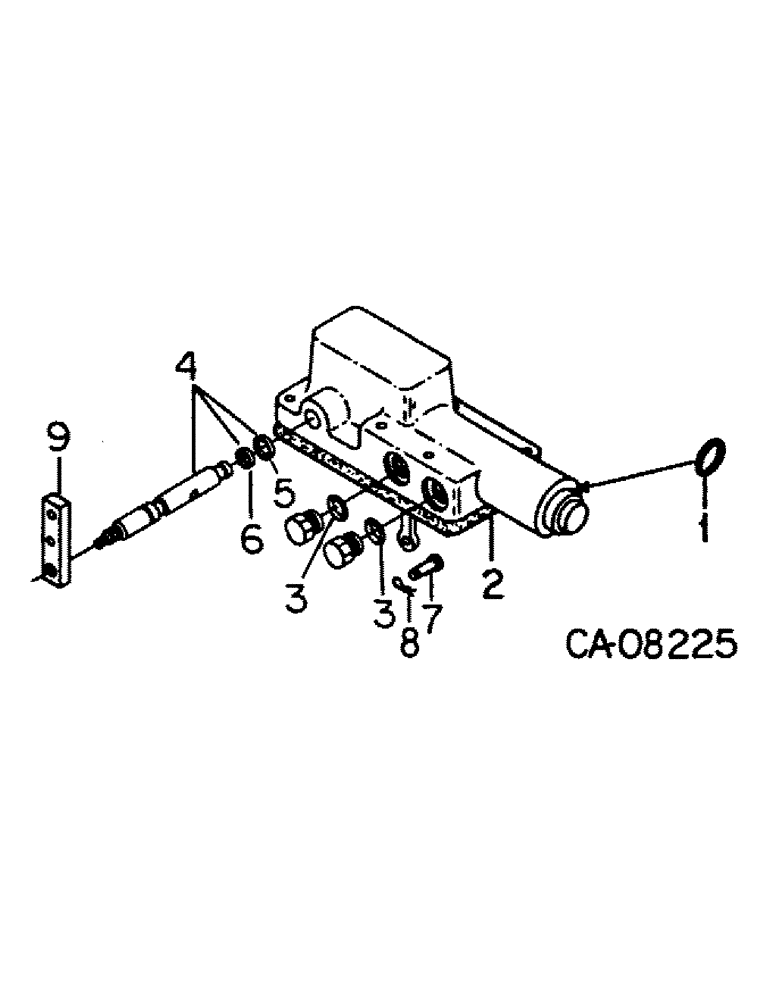

Запчасти Case IH 1480 (10-27) - HYDRAULICS, HYDRAULIC PUMP, CONTROL VALVE ASSY, EATON (07) - HYDRAULICS

133755C93

VALVE

KIT, control valve assy w/gasket

1шт.

1272750C1

ORIFICE

control valve

1шт.

1

80269C1

O-RING KIT

PACKAGE, o-ring and instruction

1шт.

2

133756C1

GASKET

1шт.

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 PHC type 8

1шт.

25750R1

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

5/16 x 1-3/4 PHC type 8

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD, class 6

2шт.

4

1255148C1

SHAFT ASSY.

SHAFT ASSY

1шт.

5

1267111C1

RING,11.18mm ID x 12.7mm OD x 1.78mm Thk

shaft seal

1шт.

6

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

7

133757C1

PIN

linkage clevis, Serial Range: -44000

1шт.

8

133758C1

SPRING

PIN, hitch, Serial Range: -44000

1шт.

9

R23131

HANDLE, shaft

1шт.

Ref # 9 - Use 404782R2 in place of the F 23131

1шт.

NLS

NO LONGER SERVICED

5/16 jam type 5

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

1шт.

92647C1

O-RING,7.52mm ID x 0.574" OD x 3.53mm

orifice retainer

1шт.
