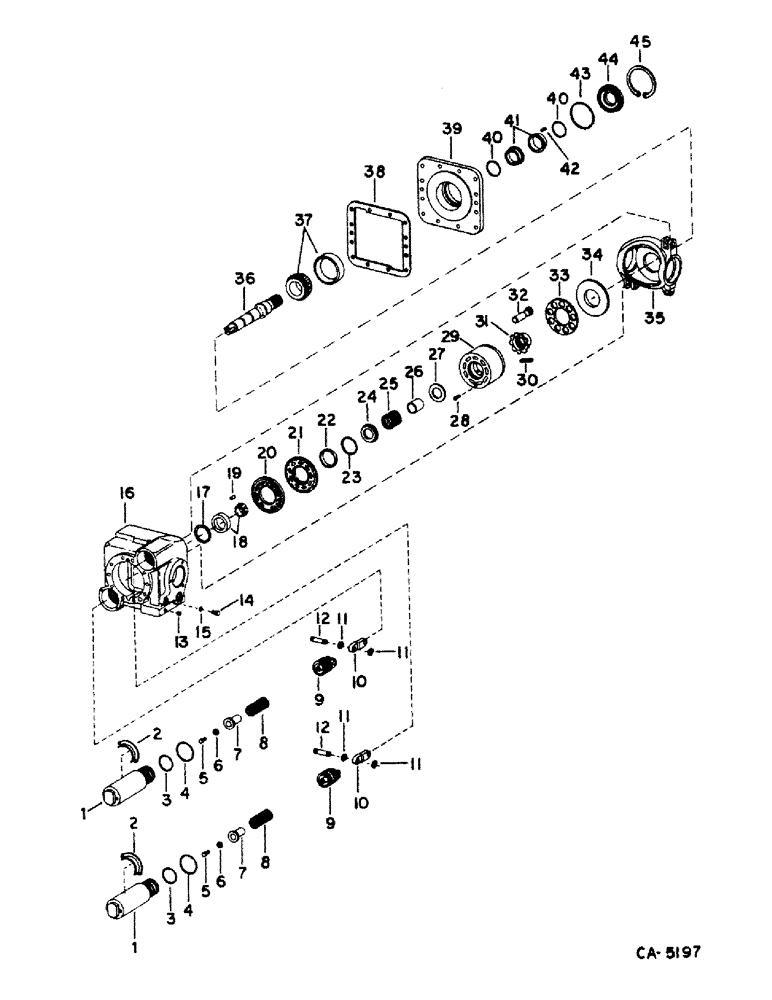

Запчасти Case IH 1480 (10-19) - HYDRAULICS, HYDROSTATIC PUMP, CYLINDER BLOCK, SUNDSTRAND (07) - HYDRAULICS

1252341C91

REMAN-HYD PUMP

PUMP ASSY, hydrostatic transmission, renewed

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856C1

WASHER

17/32 x 1 x .188

1шт.

1

403074R2

SLEEVE

servo piston

2шт.

2

394213R1

RETAINER

servo piston

2шт.

536291R1

SCREW

10-24 x 3/8 self-tap

1шт.

3

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

4

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

2шт.

5

537762R1

SCREW

1/4-20 x 5/8 hex-hd cap nylon coated

2шт.

6

394207R1

WASHER

servo piston bolt

2шт.

7

394211R1

GUIDE

servo piston spring

2шт.

8

549726R1

SPRING

servo piston

2шт.

9

537761R1

PISTON

servo

2шт.

10

549724R1

LINK

servo piston

2шт.

11

269174R1

SNAP RING,#62, Ext

Ring, Snap, , servo piston link #62, Ext

8шт.

12

65797C1

PIN

servo piston line

4шт.

13

444688

PLUG

1/8-27 automotive hex-soc-hd pipe

1шт.

14

9410356

PLUG

7/16-20 hex-hd o-ring boss

3шт.

15

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

16

HOUSING, transmission pump, not serviced separately furnish pump assy 1252341C91

1шт.

17

405128R1

SHIM

.010 rear bearing

1шт.

18

405152R91

BEARING ASSY,1.1875" ID x 2.5317" OD x 0.8468, 0.6563"

ASSY, drive shaft rear pivot

1шт.

19

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel, end cover to valve plate

1шт.

20

114049C1

PLATE

cyl block valve LH

1шт.

21

405141R1

PLATE

cyl. block bearing

1шт.

22

405140R1

RING

cyl. block brg plate pilot

1шт.

23

558383R1

SNAP RING,#250, 2.606, Int, Spiral

RING, drive shaft rear

1шт.

24

405139R1

RETAINER

drive shaft rear spring

1шт.

25

71887C1

SPRING

cyl block

1шт.

26

405137R1

GUIDE

BUSHING, drive shaft rear spring

1шт.

27

405136R1

SEAT

piston cyl block spring

1шт.

28

527636R1

PIN

cyl block bearing plate

1шт.

29

BLOCK ASSY, piston cyl, not serviced separately order kit 133790C91

1шт.

30

67822C1

SPRING

slipper retainer

6шт.

31

405132R1

GUIDE

cyl block piston slipper

1шт.

32

71605C1

PISTON ASSY.

PISTON ASSY, cyl block

9шт.

33

405133R1

RETAINER

cyl block piston slipper

1шт.

34

400965R3

PLATE

piston slipper thrust

1шт.

35

405130R1

HOUSING

SWASHPLATE, transmission pump

1шт.

36

71888C1

SHAFT

pump drive

1шт.

37

405186R91

BEARING ASSY,2" ID x 4" OD x 1.378"

ASSY, drive shaft front

1шт.

38

405129R1

GASKET

transmission pump front cover

1шт.

39

405127R1

COVER

transmission pump front

1шт.

24850R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

1шт.

70427R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 PHC type 8

1шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

1шт.

40

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2 x 2-3/16 x 3/32, drive shaft face seal

2шт.

41

SEAL, shaft, not serviced separately order o-ring & seal package 405125R92

1шт.

42

393882R1

SPRING

drive shaft face

8шт.

43

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

3-1/2 x 3-3/4 x 1/8

1шт.

44

405126R1

RETAINER

ASSY, drive shaft face seal

1шт.

45

D63418

SNAP RING,3.875", Int, #387

Ring, Snap, , drive shaft face seal 3.875", Int, #387

1шт.

D66240

KIT

PACKAGE, o-ring & seal, consists of seal, housing (NSS), seal, shaft (NSS)

1шт.

26079R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

610411C1

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

393882R1

SPRING

8шт.

133790C91

KIT

cylinder block, consists of ref. no. 21 thru 24 and 26 thru 33

1шт.
