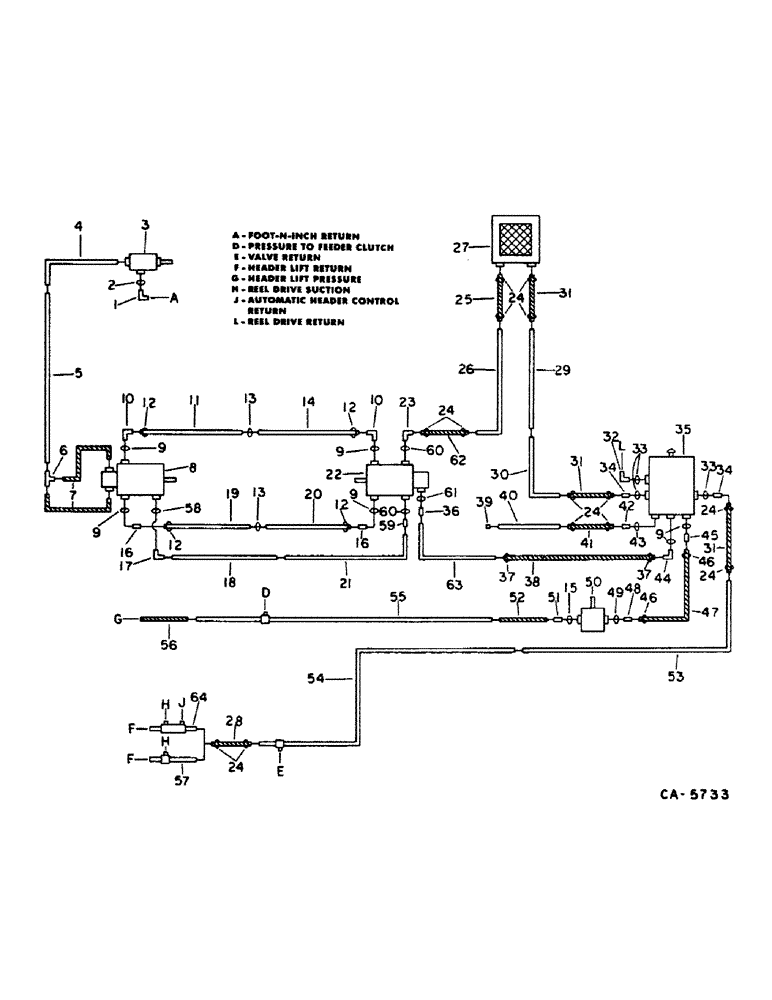

Запчасти Case IH 1480 (10-03) - HYDRAULICS, HYDROSTATIC MOTOR, PUMP AND HEADER LIFT DIAGRAM, S/N 24000 AND BELOW (07) - HYDRAULICS

1

164596C1

ELBOW

9/16-18 hyd tube 90 deg

1шт.

3

VALVE, foot-n-inch, refer to this group under foot-n-inch valve

1шт.

4

187807C1

HYD TUBE

TUBE ASSY, foot-n-inch upper

1шт.

5

187808C3

HYD TUBE,0.25" OD, 1460, 1135 mm Length

TUBE ASSY, foot-n-inch lower

1шт.

6

9402979

TEE,7/16"-20, 37 Degree

7/16-20 37 deg flared tube

1шт.

7

175760C1

HOSE ASSY.

HOSE ASSY, foot-n-inch

2шт.

8

MOTOR, hydrostatic, refer to this group under hydrostatic motor

1шт.

9

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube

6шт.

10

595408R1

90 ELBOW

1-5/16-12 x 1 in. OD tube end 90 deg

2шт.

11

187600C2

TUBE

ASSY, hydrostatic drive reverse lower pressure, includes ref. no. 12

1шт.

12

165722C1

SLEEVE

tube nut rubber

4шт.

13

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8

2шт.

14

187601C2

HYD TUBE

TUBE ASSY, hydrostatic drive reverse upper pressure, includes ref. no. 12

1шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD tube

1шт.

16

163915C1

FITTING

CONNECTOR, 1-5/16-12 37 deg hyd flared

2шт.

17

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube 90 deg, for Sundstrand

1шт.

17

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

1-1/16-12 37 deg hyd flared, for Eaton

1шт.

18

187598C1

HYD TUBE

TUBE ASSY, hydrostatic bleed lower, for Sundstrand

1шт.

18

183591C2

HYD TUBE

TUBE ASSY, hydrostatic bleed lower, for Eaton

1шт.

18

1301012C2

TUBE

ASSY, hydrostatic bleed lower, for Eaton with 2 speed motor

1шт.

19

187602C2

TUBE

ASSY, hydrostatic drive forward lower pressure, includes ref. no. 12

1шт.

20

187603C2

TUBE

ASSY, hydrostatic drive forward upper pressure, includes ref. no. 12

1шт.

21

187599C1

HYD TUBE

TUBE ASSY, hydrostatic bleed upper, for Sundstrand

1шт.

21

183592C1

HYD TUBE

TUBE ASSY, hydrostatic bleed upper, for Eaton

1шт.

22

PUMP, hydrostatic, refer to this group under hydrostatic pump

1шт.

23

173844C1

ELBOW

7/8-14 & 5/8 OD tube end 90 deg, for Sundstrand

1шт.

23

387006R91

ELBOW

1-1/16-12 x 3/4 OD tube end, for eaton

1шт.

24

995218R1

CLAMP

hose

22шт.

25

HOSE, hydrostatic pump to oil cooler, use 18 in. of 5/8 ID hyd hose from 50 ft roll marked S118576

1шт.

26

187803C1

TUBE

ASSY, hydrostatic pump to oil cooler, for Sundstrand, Serial Range: -1500

1шт.

26

183832C1

HYD TUBE

TUBE ASSY, hydrostatic pump to cooler for Sundstrand, Start Serial: 1501

1шт.

26

183565C1

HYD TUBE

TUBE ASSY, hyd pump to oil cooler, for Eaton, Serial Range: -1500

1шт.

26

183831C1

HYD TUBE

TUBE ASSY, hydrostatic pump to cooler, for Eaton, Start Serial: 1501

1шт.

27

OIL COOLER, refer to this group under oil cooler

1шт.

28

HOSE, header lift return, use 7 in. of 3/4 ID hyd hose from 25 ft roll marked 180720C2

1шт.

29

187805C1

TUBE

ASSY, reservoir to oil cooler, Serial Range: -1500

1шт.

29

183830C1

HYD TUBE

TUBE ASSY, reservoir to cooler, Start Serial: 1501

1шт.

30

187804C1

HYD TUBE

TUBE ASSY, reservoir to oil cooler

1шт.

31

HOSE, reservoir to oil cooler and header lift return, use 18 in. 3/4 ID hyd hose from 25 ft roll marked 180720C2

3шт.

32

171949C1

ELBOW

90 deg

1шт.

33

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/8 in. OD

3шт.

34

470420R11

FITTING

return and cooler

2шт.

35

RESERVOIR, hydraulic, refer to this group under hydraulic reservoir

1шт.

36

387488R1

CONNECTOR, ELEC

CONNECTOR, 7/8-14 and 3/4 beaded hyd flared tube reducing, for Sundstrand

1шт.

36

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR, 1-5/16-12 37 deg hyd flared, for Eaton

1шт.

37

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, suction hose, for Sundstrand

2шт.

37

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, charge suction hose, for Eaton

1шт.

38

HOSE, charge suction, use 24.5 inl. of 3/4 ID hose from 50 ft roll marked S118569, for Sundstrand

1шт.

38

183601C1

HOSE,25.4 mm ID x 355.60 mm, SAE 100R4 CLASS 4, SAE 100R3 CLASS 5

charge suction, 14 in., 355.6mm, for Eaton

1шт.

39

9403373

CAP,37 Degree, 7/8"-14

reservoir drain hose

1шт.

40

187822C1

HYD TUBE,5/8" OD, 14, 1.2" Length

TUBE ASSY, reservoir drain

1шт.

41

HOSE, reservoir drain, use 7 in. of 5/8 ID hose from 25 ft roll marked S118576

1шт.

42

196816C1

FITTING

1/2 port 5/8 bead

1шт.

43

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 in. OD tube

1шт.

44

187631C1

ELBOW

charge pump suction, for Sundstrand

1шт.

44

179379C1

ELBOW

charge suction, for Eaton

1шт.

45

180182C1

FITTING

1 in. port pump suction

1шт.

46

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, header lift suction hose

2шт.

47

1272624C1

HOSE,1.00" ID x 8.25"

- Header lift suction, Replaces 187827C2 1.00" ID x 8.25"

1шт.

48

180182C1

FITTING

CONNECTOR, 1-5/16-12 x 1 in. beaded, for use w/187746C91 pump

1шт.

49

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD, for use w/187746C91 pump

1шт.

50

PUMP, hydraulic auxiliary, refer to this group under auxiliary hydraulic pump

1шт.

51

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg flared tube

1шт.

52

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

header lift pressure

1шт.

53

1324887C1

TUBE,90 Degree, 9/16"-18 x 7/16"-20

ASSY, header lift return rear

1шт.

54

187810C1

HYD TUBE,.375" OD, 45.7, 20.8" Length

TUBE ASSY, header lift return front, order 1324887C1

1шт.

1324887C1

TUBE,90 Degree, 9/16"-18 x 7/16"-20

ASSY, header lift return, single piece tube replaces two piece construction ref no. 53 and 54

1шт.

55

187811C1

HYD TUBE

TUBE ASSY, header lift pressure

1шт.

56

381170R91

HOSE

header lift pressure

1шт.

57

187887C1

TUBE

ASSY, header lift return, reel drive suction & AHC return

1шт.

58

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD tube, for Sundstrand

1шт.

58

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 in. OD tube, for Eaton

1шт.

59

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared, for Sundstrand

1шт.

59

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 1-1/16-12 37 deg hyd flared, for Eaton

1шт.

60

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD tube, for Sundstrand

2шт.

60

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

for 3/4 in. OD tube, for Eaton

2шт.

61

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

for 5/8 in. OD tube, for Sundstrand

1шт.

61

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

for 1 in. OD tube, for Eaton

1шт.

62

HOSE, hydrostatic pump to oil cooler, use 18 in. of 5/8 ID hyd hose from 25 ft roll marked S118576, for Sundstrand

1шт.

62

HOSE, hydrostatic pump to oil cooler, use 18 in. of 3/4 ID hyd hose from 50 ft roll marked 180720C2, for Eaton

1шт.

63

183593C1

HYD TUBE

TUBE ASSY, charge suction, for Eaton

1шт.

64

187888C1

TUBE

ASSY, header lift return reel drive suction and AHC return, Start Serial: 1501

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
