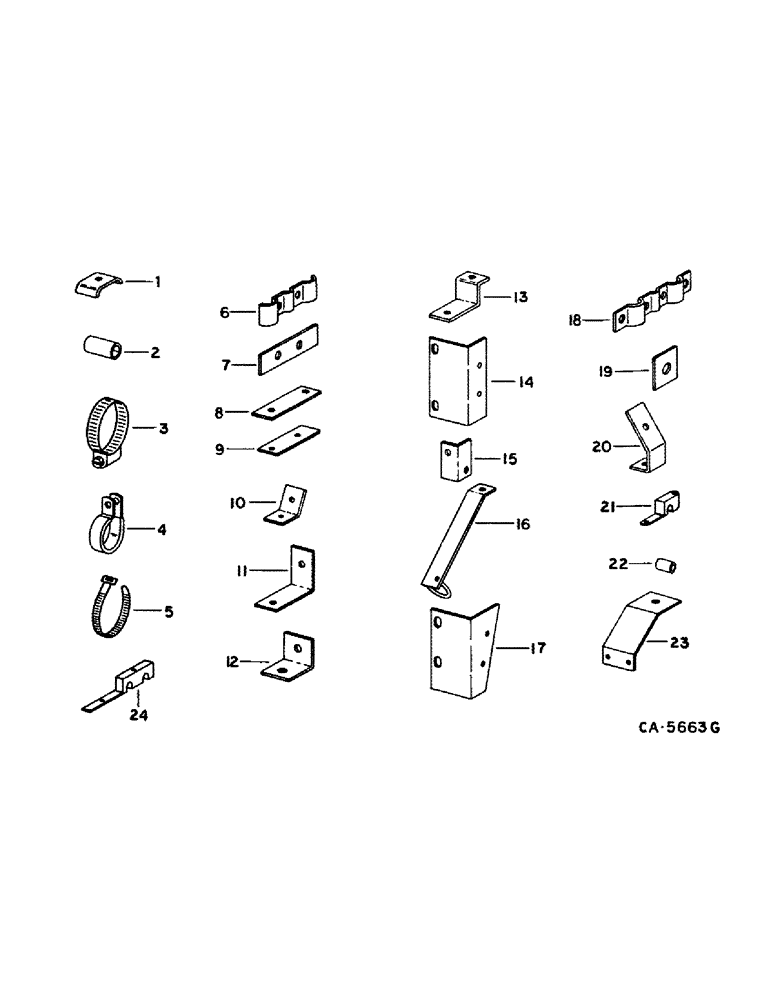

Запчасти Case IH 1480 (10-01) - HYDRAULICS, HYDRAULIC CLAMPS, STRIPS AND SUPPORTS (07) - HYDRAULICS

1

165601C1

CLAMP

.406 dia. hole, for use with, (3) automatic header control lower pressure, (6) header lift, (5) pump to cooler reel drive, (3) reel drive, (3) reservoir to cooler, reservoir drain tube

1шт.

1

165602C1

CLAMP

.344 dia. hole, for use with, (7) feeder clutch and steering, (2) reel lift tubes, steering rearward tubes

1шт.

2

163489C1

STRIP

for 1/4 in. OD tube, for use with, unloader swing cyl. tube

5шт.

2

163490C1

RUBBER INSULATOR

STRIP, 3/8 in. OD tube, for use with, (14) feeder clutch and steering, (2) reel lift tubes, (3) steering tubes

1шт.

2

163492C1

RUBBER INSULATOR

STRIP, for 5/8 in. OD tube, for use with, (5) automatic header control lower pressure, (6) header lift, (3) pump to cooler reel drive, (3) reel drive, reservoir to cooler, reservoir drain tube

1шт.

2

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

for 3/4 in. OD tube, for use with, (3) header lift, (2) hydrostatic tube bleed, pump to cooler, (2), Serial Range: reservoir-cooler

1шт.

2

187935C1

STRIP

hydrostatic pressure tube

1шт.

2

163491C1

RUBBER INSULATOR

STRIP, for 1/2 in. OD tube, used for, reel drive

1шт.

2

183827C1

STRIP

for 5/8 in. OD tube

1шт.

3

995218R1

CLAMP

no. 12, for use with, (4) cooler to reservoir, (4) header lift return, (4) pump to cooler, (2) reel drive return, (2) reservoir drain hose

1шт.

3

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, header lift suction hose and charge suction hose

2шт.

3

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

For use with, (2) clutch return, (2) feeder clutch return, (2) steering return, (2) swing valve return #06, .44/.78 Type F Worm

1шт.

3

279038R91

HOSE CLAMP,#32, 1.56/2.50 Type F Worm

CLAMP, no. 32, used for, unloader swing cylinder tube

1шт.

3

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP, no. 16, used for, charge suction

2шт.

3

995219R91

CLAMP

no. 24, used for, reel drive suction

2шт.

4

26613R1

CLAMP,1 7/8", Insul, 1/2" Bolt

used for, separator clutch hose, (3) steering hose

1шт.

Insulated

1шт.

4

573674R1

CLIP

used for, foot-n-inch

3шт.

Uninsulated

1шт.

4

589980R2

CLIP

CLAMP, used for, steering

1шт.

Insulated

1шт.

4

406381C1

CLIP

CLAMP, used for, separator clutch

1шт.

Insulated

1шт.

4

515-2863

CLAMP,1/4", 3/8" Bolt

used for, LH feeder clutch tube

1шт.

Insulated

1шт.

4

299399C1

CLIP

CLAMP, used for, charge pressure tubes

3шт.

Insulated

1шт.

4

299566C1

CLAMP

used for, charge pressure tube

1шт.

Insulated

1шт.

5

702093C1

CABLE TIE

STRAP, used for, feeder clutch hose, separator clutch

1шт.

5

306132C1

CABLE TIE,14.5" L

STRAP, used for, steering hand pump hose, reel drive suction hose

1шт.

5

289862C1

CABLE TIE,3/16" x 7"

STRAP, used for, charge pressure hose

1шт.

6

178984C1

CLAMP

used for, hydrostatic drive lower

2шт.

7

150779C1

TUBE

STRAP, 1/4 in., used for, hydrostatic drive lower

2шт.

7

150780C1

STRAP

1/8 in., used for, hydrostatic drive lower

2шт.

7

187840C1

STRAP

used for, hydrostatic drive lower

2шт.

8

187509C1

BAR

header lift

1шт.

8

187510C2

BAR

SUPPORT, header lift tubes

1шт.

9

196868C1

BAR

reservoir to coolar and reel drive return

1шт.

10

178960C1

BRACKET

ANGLE, steering rearward tubes

1шт.

11

178950C1

ANGLE

header lift support

1шт.

11

183899C1

ANGLE

steering hand pump hose

1шт.

11

187839C1

BAR

SUPPORT, oil cooler to reservoir tubes

1шт.

12

176394C1

ANGLE

header lift tube

1шт.

12

187833C1

SUPPORT

ANGLE, used for, (3) feeder clutch lower, (3) header lift tubes

1шт.

12

187834C1

ANGLE

feeder clutch upper

2шт.

13

196517C1

SUPPORT TUBE

SUPPORT, for use with, feeder clutch and steering hydrostatic pump to cooler, Serial Range: reservoir-cooler

4шт.

14

187936C2

BRACKET

ANGLE, hydrostatic tube support rear

1шт.

15

196872C1

ANGLE

steering support

2шт.

16

173143C1

SUPPORT ASSY.

SUPPORT ASSY, header lift hose

1шт.

17

187937C2

BRACKET

ANGLE, hydrostatic tube support front

1шт.

18

187934C1

CLAMP

hydrostatic tube, for Eaton

4шт.

19

156715C1

BAR

tube clamp

1шт.

19

573186R1

PLATE

BAR, reel drive

1шт.

20

183829C1

BRACKET

SUPPORT, Serial Range: reservoir-cooler

1шт.

21

196447C1

CLAMP

clutch oil cooler

2шт.

21

183820C1

CLAMP

(AR) for 1/4 tube, used for, (3) foot-n-inch, RH feeder clutch tube

1шт.

21

183821C1

CLAMP

(AR) for 3/8 tube, used for, reel lift tube

1шт.

21

183822C1

CLAMP

for 5/8 tube, used for, header lift pressure tube

1шт.

21

183823C1

CLAMP

for 3/4 tube, used for, Serial Range: reservoir-cooler

1шт.

22

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

tube clamp .407 x .625 x 1.00

4шт.

23

187510C2

BAR

SUPPORT, reel lift pressure and return tube front

1шт.

24

183824C1

CLAMP

1/4 x 1/4, used for, unloader swing tubes

2шт.

24

183825C1

CLAMP

3/8 x 3/8 , used for, (4) feeder clutch tubes, (6) steering tubes

1шт.

24

183826C1

CLAMP

3/4 x 3/4, used for, oil cooler

2шт.

24

121714C1

CLAMP

3/4 x 5/8 , used for, header lift tubes, reel drive

1шт.

24

1301178C1

CLAMP

used for, steering tubes

2шт.
