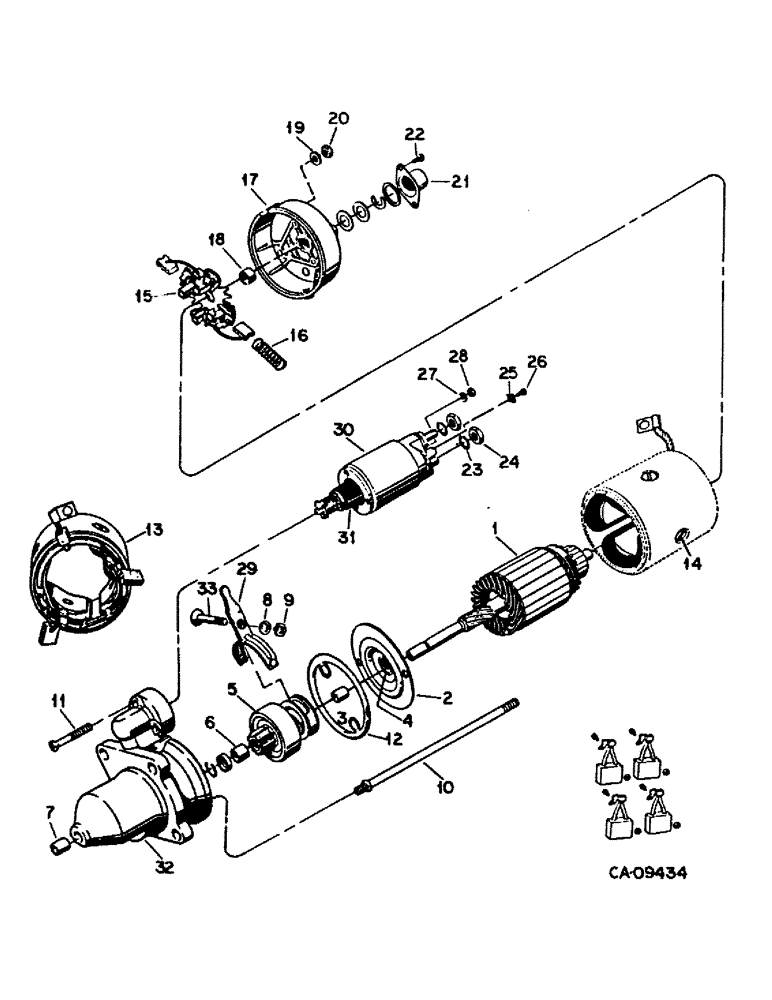

Запчасти Case IH 1480 (08-32) - ELECTRICAL, FEEDER REVERSER MOTOR (06) - ELECTRICAL

245927C91

STARTING MOTOR

MOTOR, feeder reverser

1шт.

245927C93R

REMAN-STARTER

REMANUFACTURED STARTING MOTOR

1шт.

245927C93C

CORE-STARTER

Return Number, STARTING MOTOR

1шт.

1

A186232

ARMATURE

ARMATURE

1шт.

2

A186233

HOUSING

BEARING

1шт.

3

3079432R1

BUSHING

BUSHING

1шт.

4

A186234

SEAL

SEAL

1шт.

5

A186235

DRIVE,Starter

DRIVE, clutch

1шт.

6

3079254R1

BUSHING

BUSHING

2шт.

7

3055738R1

BUSHING

BUSHING

1шт.

8

3053133R1

SEALING RING,M8 x 11.5 x 1

RING

1шт.

9

691265C1

NUT

NUT

1шт.

10

3079172R1

STUD

STUD

2шт.

11

A186236

SCREW,Torx, M5 x 45mm

SCREW, flat head

3шт.

12

A186237

RETAINER

RING

1шт.

13

A186238

COIL

ARMATURE

1шт.

14

3129639R1

SCREW

SCREW

4шт.

15

3079174R1

HOLDER

HOLDER

1шт.

16

3079420R1

SPRING

SPRING, compression

4шт.

17

A186239

COVER

SHIELD

1шт.

18

3079170R1

BUSHING

BUSHING

1шт.

19

3079176R1

WASHER

WASHER, plain

2шт.

20

30208R1

NUT,M6, Cl 10

NUT, M6 class 8 hex

2шт.

21

3079177R1

CAP

CAP, closure

1шт.

22

3079426R1

SCREW

SCREW, M5 x 16mm fil-head

2шт.

23

A186240

WASHER

WASHER, spring lock

2шт.

24

100016

NUT,M10 x 1.5, Cl 8

NUT, M10, Cl 8

2шт.

25

A186241

CLAMP

SADDLE, clamping

1шт.

26

K965151

SCREW

SCREW, saddle clamp

1шт.

27

A186243

WASHER

WASHER, spring lock

2шт.

28

933824R1

THIN NUT,Thin, M4 x .5, Cl 04

NUT, M4 hex

2шт.

29

3078965R1

LEVER

LEVER, fork

1шт.

30

A186244

SWITCH

SWITCH, solenoid

1шт.

31

A186245

DIAPHRAGM

DIAPHRAGM

1шт.

32

A186246

FRAME

SHIELD, drive end

1шт.

33

3079430R1

BOLT,Flat

SCREW, fork pivot

1шт.

3079359R91

BRUSH, COMMUTATOR

BRUSH BRUSH SET, carbon

1шт.

3079555R91

PACKAGE

PART SET

1шт.
