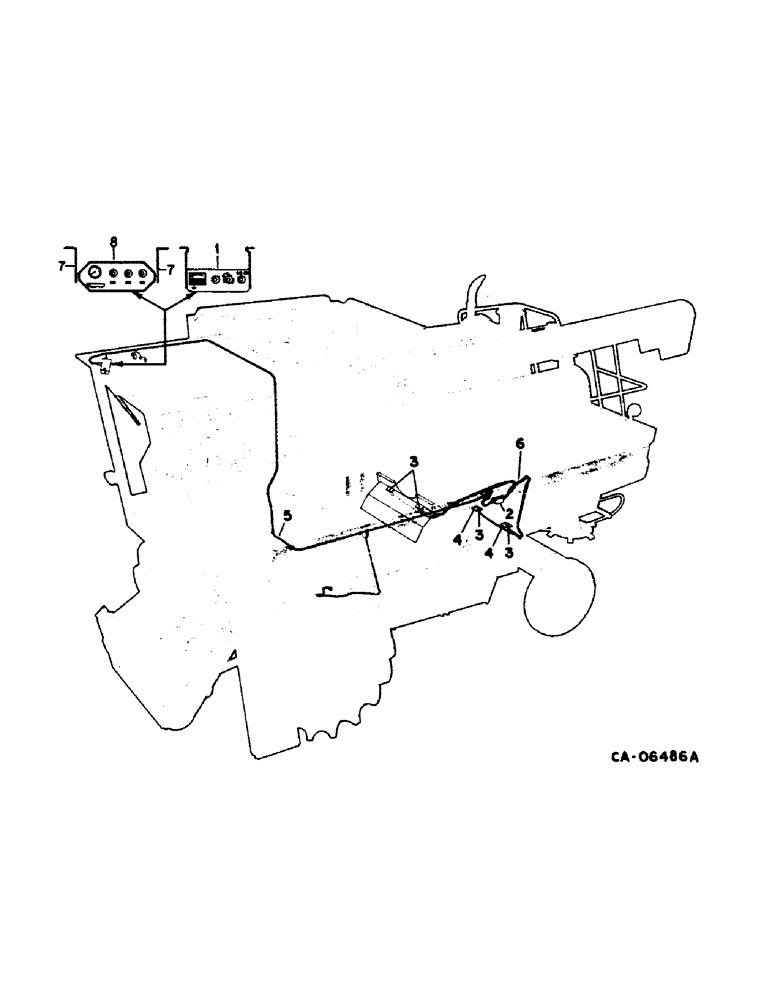

Запчасти Case IH 1480 (08-30) - ELECTRICAL, GRAIN LOSS MONITOR (06) - ELECTRICAL

1

1310676C2

CONTROL

grain loss monitor, SED

1шт.

2

245736C1

BLOCK

monitor control junction, replaces 1310677C1 and 245069C2, SED

1шт.

2

245306C1

HARNESS

ASSY, Y-connector, Dickey John

1шт.

Ref #2a - Should be changed to read Ref "#9" (245706c1). This is a short Y-Patch Connector Harness used with the Dickey-John system. It is located off the end of the Distance Harness and connects the the Transmission Distance Sensor.

1шт.

3

1301700C1

TRANSMITTER

SENSOR, monitor control, SED

4шт.

3

245283C1

SENSOR

AND BRACKET, sieve, Dickey John

2шт.

3

245285C1

SENSOR

AND BRACKET, rotor, Dickey John

2шт.

4

1310680C1

SUPPORT

sensor mounting, SED

2шт.

5

245067C1

HARNESS

ASSY, main, replaces 1310678C1, SED

1шт.

Ref. 5 Is as shown for SED.

1шт.

5

245304C1

HARNESS

ASSY, main, Dickey John

1шт.

Ref. 5a Is the main harness for Dickey-John system. It goes the full length of the machine. It does not send a lead to the Transmission Distance Sensor. It goes directly to the sensors without P/N 12526609C1.

1шт.

6

245737C1

HARNESS

ASSY, distance cable, replaces 1310679C1 and 245068C1, SED

1шт.

Ref. 6, Is actually the rear sensor harness for SED not the distance harness.

1шт.

6

245305C1

HARNESS

ASSY, distance cable, Dickey John

1шт.

Ref. 6a Should be changed to Ref.10. This is the distance cable for the Dickey-John system. it hooks to the Y-Patch cable aththe transmission and parallels all the way to the monitor in the cab roof.

1шт.

7

1319499C1

SUPPORT

BRACKET, monitor control mounting, Dickey John

2шт.

8

245757C1

INSTRUMENT CLUSTER

CONTROL, grain loss monitor, replaces 245250C1, Dickey John

1шт.

145510

FUSE,1 Amp, Type 3AG

1 amp

1шт.

245328C1

EXTENSION

battery cable, not illustrated, used with Dickey John monitor only, connects monitor to 12 volt power supply

1шт.

See print eeg 086 for better info.

1шт.
