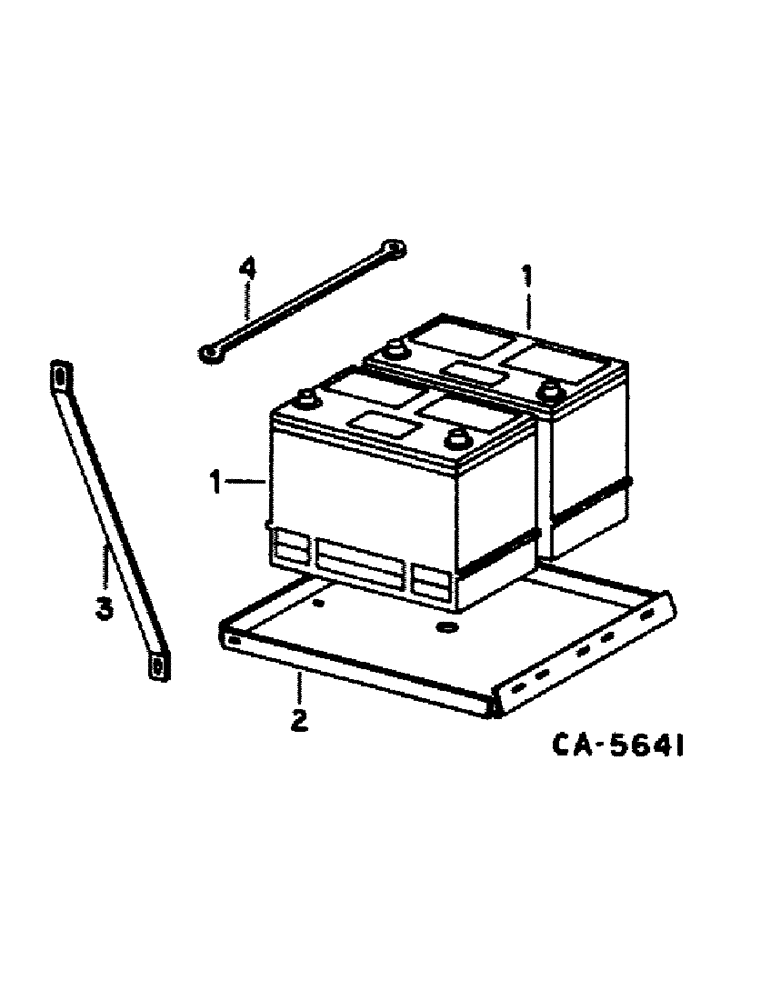

Запчасти Case IH 1480 (08-29) - ELECTRICAL, BATTERY AND MOUNTING (06) - ELECTRICAL

1

B2472

DRY BATTERY

BATTERY, 12 volt, replaces 121787C1

2шт.

2

194267C3

TRAY

battery

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

3

194265C1

SUPPORT

battery tray

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

188116C1

CLAMP

battery hold down

1шт.

21080R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 9 1/2", Gr 2

BOLT, 5/16 x 9-1/2 crg type 1

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

7500032

BUSHING

NUT, 5/16 wing

1шт.
