Запчасти Case IH 1480 (08-26) - ELECTRICAL, LIGHTS AND MOUNTING (06) - ELECTRICAL

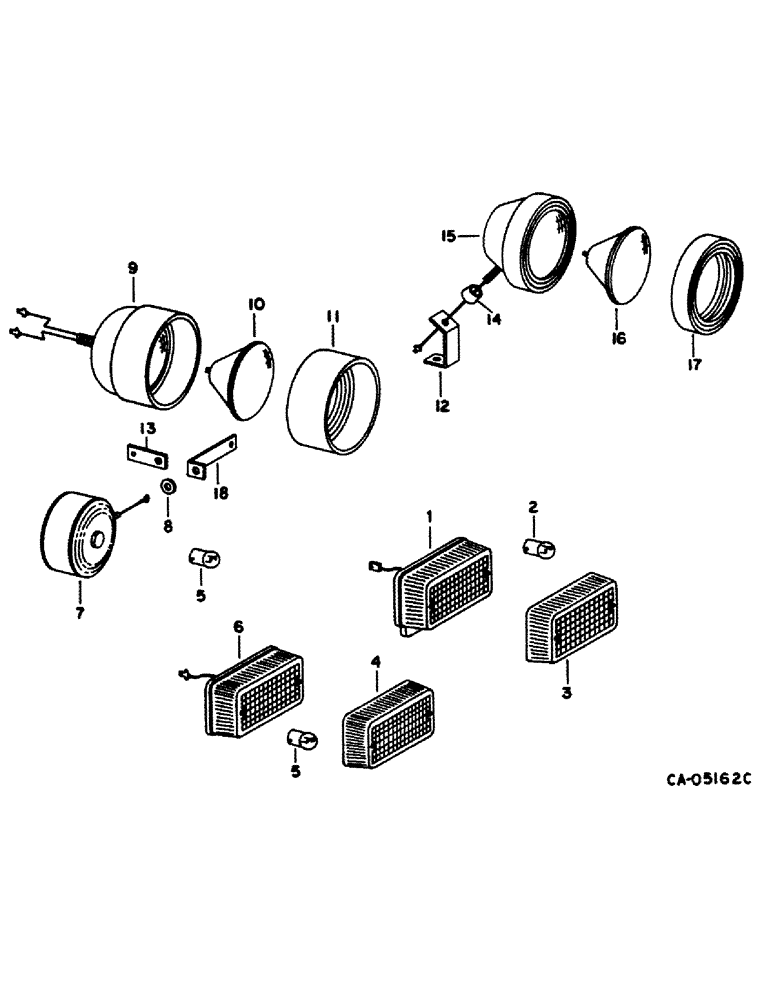

Схема запчастей Case IH 1480 - (08-26) - ELECTRICAL, LIGHTS AND MOUNTING (06) - ELECTRICAL
5
13
14
11
8
4
2
10
16
18
3
12
17
9
7
15
1
5
6

Артикул

Название

Примечание

Количество

1

216044C92

LAMP

TAIL LAMP ASSY, includes ref. nos. 2 and 3

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

26618R1

SCREW

#10 x 2-1/2 PHC p/hdcr mach

1шт.

28151R1

SCREW

no. 10 x 2-1/4 PHC p/hdcr mach

1шт.

2

9417867

BULB,C6, #1157, 12.8V

no. 1157

2шт.

3

216045C1

LENS

tail lamp

2шт.

4

130883C1

LENS

warning lamp

2шт.

5

A41264

BULB,#1156, 12V

1шт.

6

130882C91

LAMP

LAMP ASSY, rear warning, includes ref. nos. 4 and 5

2шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

26618R1

SCREW

no. 10 x 2-1/2 PHC p/hdcr mach

1шт.

28151R1

SCREW

no. 10 x 2-1/4 PHC p/hdcr mach

1шт.

7

196978C91

LIGHT

LAMP ASSY, flasher front, includes ref. no. 5

2шт.

120371

NUT,1/2"-20, G5

1шт.

8

394262R1

WASHER

rubber

2шт.

9

388945R91

HEADLIGHT

LAMP ASSY, night light, includes ref. nos. 10 and 11, replaces 175569C91 and 1310871C91

2шт.

10

373662R91

LAMP

UNIT

2шт.

11

175570C1

SEAL RETAINER

night light lamp, used with lamp assy 175569C1

2шт.

11

1310872C1

SEAL

night light lamp, used with lamp assy 1310871C91

1шт.

11

676078R1

RETAINER

SEAL, night light lamp, used with lamp 388945R91

1шт.

12

561915R1

BRACKET

lamp mounting

6шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

28015R1

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 h/whd tap

1шт.

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW, 3/8 x 1-1/2 h/hd flange

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

568395R1

SPACER,5/8" Tube x 5/8"

5/8 x .562 tube, unloader light bracket

1шт.

13

183720C2

BAR

SUPPORT, RH front flasher

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

14

1267358C2

SEAT

INSULATOR, lamp

7шт.

15

391005R91

HEADLIGHT

LAMP ASSY, includes ref. nos. 16 and 17

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

530029R91

CONNECTOR, ELEC

CONNECTOR, head light, for Hobbs light assy

1шт.

16

373662R91

LAMP

UNIT, no. 4411 or

6шт.

16

131508C1

LAMP BASE

LAMP UNIT, no. H7610

6шт.

17

678078R1

RETAINER, light, for Hobbs light assy

6шт.

17

12526609C1

RETAINER, light, for Midwest light assy (Replaces 1256609C1)

6шт.

18

(Not used this application)

1шт.

Выбрано товаров: 43
