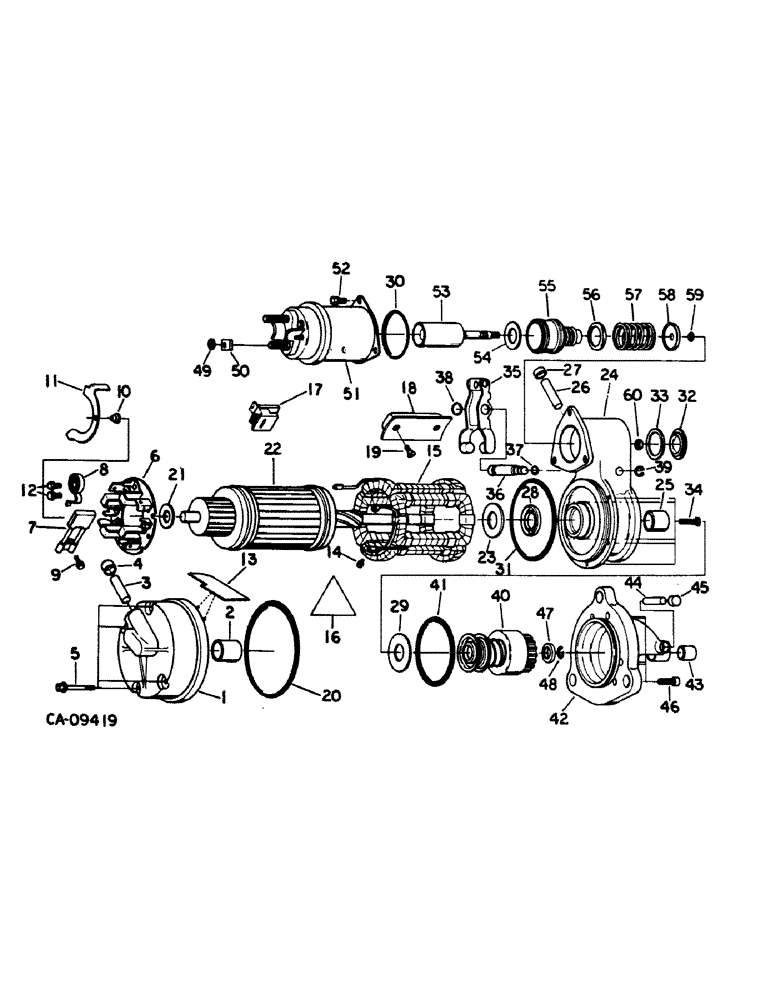

Запчасти Case IH 1480 (08-24) - ELECTRICAL, CRANKING MOTOR, DELCO REMY, HEAVY DUTY SEALED (06) - ELECTRICAL

1990321

STARTING MOTOR

MOTOR, cranking, 245153C91, replaces 1113444

1шт.

104211A1GV

STARTER MOTOR

Value

1шт.

104211A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104211A1C

CORE-STARTER

Return Number

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8 x 4-1/2 znd type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

WASHER, 3/8 hvy-int tooth lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1

1985315

FRAME

FRAME ASSY, commutator end, includes ref no. 2, 3 & 4

1шт.

2

1955994

BUSHING

BUSHING

1шт.

3

A49573

PLUG

WICK-OIL RESERVOIR

1шт.

4

1985246

CUP

CUP-OIL RESERVOIR

1шт.

5

1985333

SCREW

SCREW, w/washer, commutator frame

4шт.

6

1985303

PLATE

BRUSH PLATE ASSY, includes ref no. 7 thru 11

1шт.

7

1852889

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

8

A49575

SPRING

SPRING, brush

4шт.

9

A49576

SELF-TAP SCREW,Hex Washer, #8 - 32 x 0.44"

SCREW, brush att

4шт.

10

A49561

INSULATOR

INSULATOR, conductor

1шт.

11

1985714

CABLE

CONDUCTOR

1шт.

12

453661

SCREW

SCREW, brush plate

2шт.

13

1985248

INSULATOR

INSULATOR, brush plate

2шт.

14

A47894

SCREW,#8 - 32 x 5/16"

SCREW, field coil lead to brush holder

1шт.

15

1985324

COIL

FIELD COIL ASSY, (4 coils)

1шт.

16

1914873

INSULATOR

INSULATOR, field coil

2шт.

17

1985318

GROMMET

GROMMET, field coil

1шт.

18

A49579

PLATE

POLE SHOE

4шт.

19

1968396

SCREW

SCREW, pole shoe

8шт.

20

A49749

O-RING,4.737" ID x 4.943" OD

O-RING, on motor frame

1шт.

21

1985617

WASHER

WASHER, thrust

1шт.

22

1085249

ARMATURE

ARMATURE

1шт.

23

A49625

SPACER

SPACER, between armature & lever hsg

1шт.

24

A49580

HOUSING

LEVER HOUSING ASSY, includes ref no. 25 thru 30

1шт.

25

A49581

BUSHING

BUSHING, lever hsg

1шт.

26

A49567

WICK

WICK, oil reservoir

1шт.

27

A49573

PLUG

CUP, oil reservoir

1шт.

28

A49562

OIL SEAL

SEAL, oil

1шт.

29

1985235

WASHER

WASHER, brake

1шт.

30

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING, between housing & lever

1шт.

31

1916272

O-RING

O-RING, between lever hsg & frame

1шт.

32

1945356

PLUG

PLUG, inspection, lever hsg

1шт.

33

1964857

GASKET

GASKET, inspection plug, lever hsg

1шт.

34

1914869

SCREW

SCREW, lever housing

5шт.

35

A49583

LEVER

SHIFT LEVER ASSY

1шт.

36

1948529

SHAFT

SHAFT, shift lever

1шт.

37

1894642

RING

O-RING, shift lever shaft (3/8 OD)

1шт.

38

1894643

O-RING

O-RING, shift lever shaft (1/2 OD)

1шт.

39

G46146

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

40

A49754

DRIVE

MOTOR DRIVE

1шт.

41

1851960

O-RING

O-RING, between dr hsg & lever hsb

1шт.

42

1986351

HOUSING

HOUSING, drive end, includes ref no. 43, 44 & 45

1шт.

43

1955994

BUSHING

BUSHING

1шт.

44

A49567

WICK

WICK, oil reservoir

1шт.

45

A49573

PLUG

CUP, oil reservoir

1шт.

46

1948537

SCREW

SCREW, drive housing

6шт.

47

1985982

STOP

STOP, pinion

1шт.

48

1986928

RING

RING, retaining, pinion stop

1шт.

49

280136

NUT,3/8"-16, G8

NUT, , Field coil connect to switch 3/8"-16, G8

1шт.

50

1987678

CLIP

CLIP, field coil, Serial Range: connect-switch

1шт.

51

1115589

SOLENOID SWITCH

SOLENOID SWITCH

1шт.

52

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW, w/washer, switch

3шт.

53

A49757

PLUNGER

PLUNGER, solenoid

1шт.

54

1948519

WASHER

WASHER, plunger assy

1шт.

55

A49589

BOOT

BOOT, plunger

1шт.

56

1948520

RETAINER

RETAINER, plunger spring

1шт.

57

1948521

SPRING

SPRING, plunger

1шт.

58

1948526

RETAINER

RETAINER, plunger spring

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger assy #37, Ext

1шт.

60

9412305

NUT

NUT, plunger rod guide adjusting

1шт.
