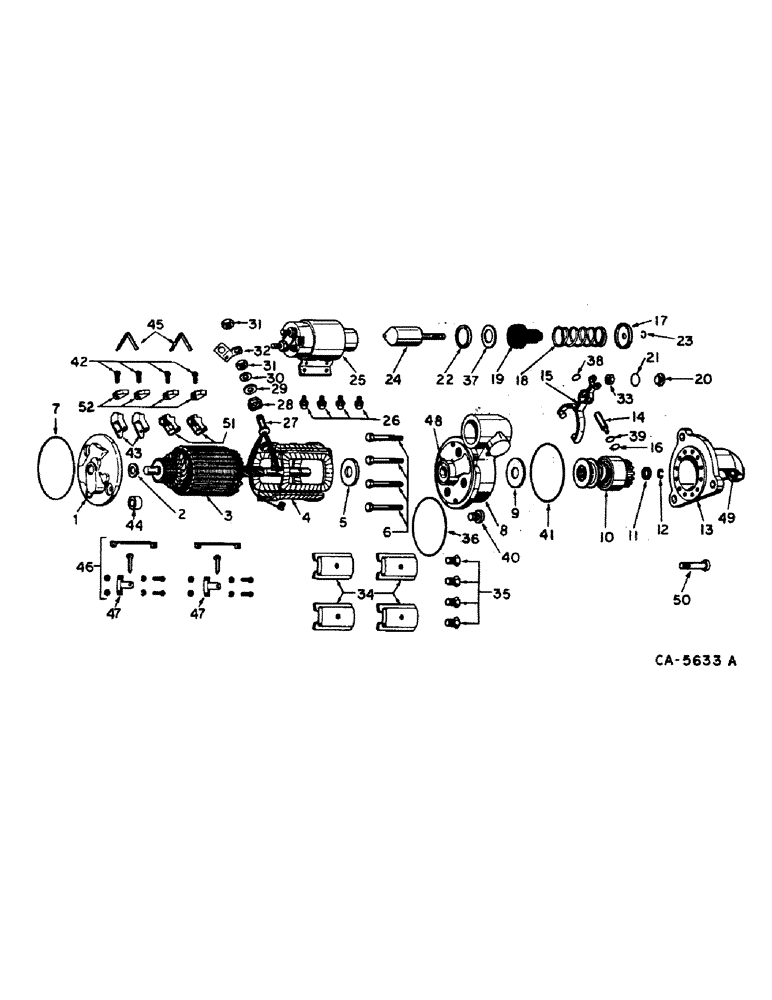

Запчасти Case IH 1480 (08-22) - ELECTRICAL, CRANKING MOTOR (06) - ELECTRICAL

MOTOR ASSY, cranking, 1113444, furnish cranking motor 1990321

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

WASHER, 3/8 hvy-int tooth lock

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

1

1891925

FRAME

commutator end

1шт.

1891929

WICK

1шт.

2

1914842

WASHER

spacer

1шт.

3

1851961

ARMATURE

1шт.

4

A43860

COIL

ASSY, field

1шт.

5

1851959

SPACER

1шт.

6

1914869

SCREW

frame attaching

4шт.

7

1916272

O-RING

commutator end frame

1шт.

8

1852967

HOUSING

lever

1шт.

1916439

WICK

1шт.

9

NLS

NO LONGER SERVICED

brake

1шт.

10

146484C1

DRIVE

MOTOR, clutch drive

1шт.

11

1851546

COLLAR

pinion stop

1шт.

12

1928022

SNAP RING

RING, pinion stop

1шт.

13

830711

HOUSING

drive

1шт.

1916439

WICK

1шт.

14

1851953

SHAFT

shift lever

1шт.

15

1851954

LEVER

ASSY, shift

1шт.

16

213262R1

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

17

1948526

RETAINER

plunger spring

1шт.

18

1948521

SPRING

plunger

1шт.

19

801077

BOOT

plunger

1шт.

20

1945356

PLUG

lever housing inspection

1шт.

21

1964857

GASKET

lever housing inspection plug

1шт.

22

1948520

RETAINER

spring

1шт.

23

213262R1

SNAP RING,#37, Ext

Ring, Snap, , plunger spring #37, Ext

1шт.

24

1851966

PLUNGER

ASSY

1шт.

25

121904C1

SOLENOID SWITCH

SWITCH, solenoid

1шт.

26

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

and lockwasher, switch attaching Cross Pan Hd, 1/4"-20 x 1/2"

4шт.

27

1950561

STUD

terminal

1шт.

28

1965472

PACKAGE

BUSHING PACKAGE, insulating terminal stud

1шт.

29

1922457

WASHER

insulating terminal stud

2шт.

30

1914647

WASHER

terminal stud, plain

1шт.

31

9414418

NUT

terminal stud

2шт.

32

CONNECTOR, switch to field, not used in this application

1шт.

33

A43856

NUT

plunger rod guide adjusting

1шт.

34

POLE, shoe, not serviced separately order 1990321

1шт.

35

1968396

SCREW

pole shoe

4шт.

36

1851960

O-RING

brake lever housing

1шт.

37

1948519

WASHER

plunger spring retainer

1шт.

38

1894642

RING

O-RING, shaft lever

1шт.

39

1894643

O-RING

shaft lever

1шт.

40

1914869

SCREW

lever housing attaching

5шт.

41

1916272

O-RING

drive end housing seal

1шт.

42

167077

SCREW

brush attaching

4шт.

43

1940477

HOLDER

brush ground

2шт.

44

1891927

BUSHING

commutator end frame

1шт.

45

A185114

SPRING

brush

2шт.

46

A47072

BRUSH, COMMUTATOR

BRUSH, support package, includes ref. no. 47

2шт.

47

1914873

INSULATOR

INSULATION, field coil

2шт.

48

1933999

BUSHING

lever housing

1шт.

49

1955994

BUSHING

drive housing

1шт.

50

A47141

SCREW,Hex, 1/4" - 28 x 7/8"

drive housing attaching

6шт.

51

1988414

HOLDER

brush insulated

2шт.

52

A45153

BRUSH, COMMUTATOR

BRUSH

4шт.
