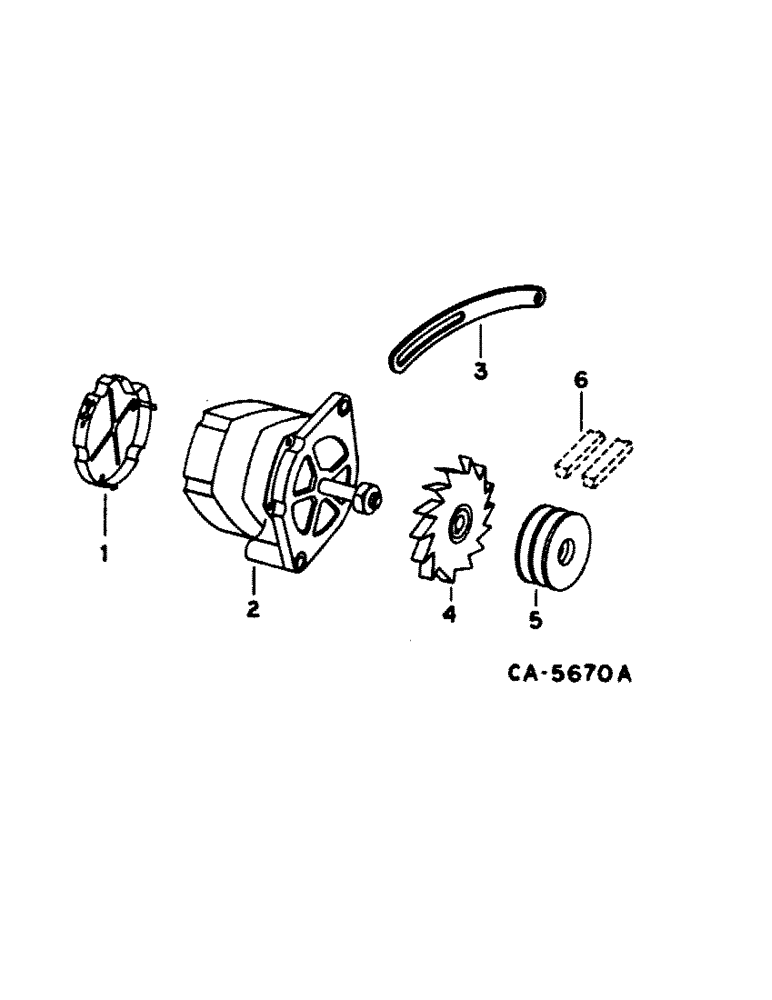

Запчасти Case IH 1480 (08-20) - ELECTRICAL, ALTERNATOR-GENERATOR AND MOUNTINGS, ALL EXCEPT 90 AMP MOTOROLA ALTERNATOR (06) - ELECTRICAL

1

(Not used in this application)

1шт.

2

ALTERNATOR-GENERATOR, refer to this group under alternator- generator

1шт.

3

532418R1

BRACE

adjusting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

1014921C1

BOLT

BOLT, M8 x 30 pln class 8.8

1шт.

4

221425R1

FAN

alternator-generator

1шт.

5

107686C1

PULLEY

alternator-generator, 4.35 in. dia, S/N and below

1шт.

5

1252602C1

X

PULLEY, alternator-generator or

1шт.

5

131042C1

PULLEY

alternator-generator, 3.5 in. dia., S/N and above

1шт.

6

BELT, matched set, refer to group 12 under engine belt diagram

1шт.
