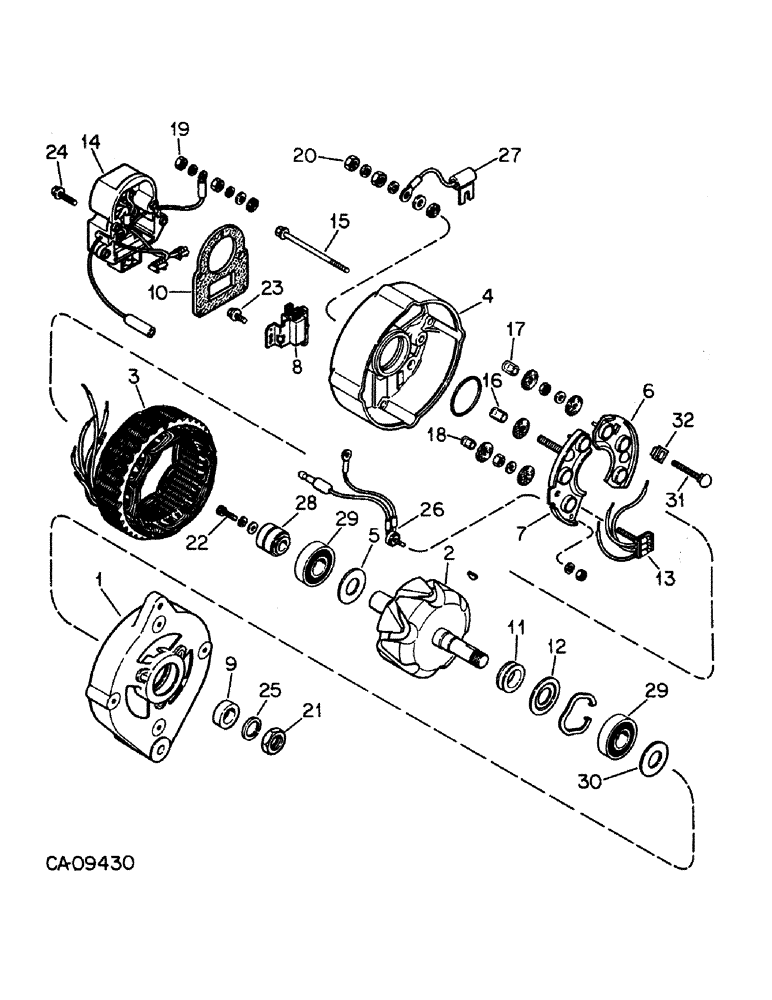

Запчасти Case IH 1480 (08-19) - ELECTRICAL, ALTERNATOR-GENERATOR, 90 AMPERE MOTOROLA (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
245713C92
ALTERNATOR
ALTERNATOR-GENERATOR ASSY, 90 amp, replaces 146466C91 by also ordering package 91906C91
1шт.
87297294
REMAN-ALTERNATOR
Reman for New PN 245713C92
1шт.
87297295
CORE-ALTERNATOR
Return Part Number
1шт.
A163085GV
ALTERNATOR
Value, 12V, 105A
1шт.
103807A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 Volt 105 Ampere
1шт.
103807A1C
CORE-ALTERNATOR
Return Part Number
1шт.
146466C91
ALTERNATOR
Alternator, 12 VOLT, 80 AMP
1шт.
104023A1R
REMAN-ALTERNATOR
Remanufactured 12 Volt, 80 Amp Alternator
1шт.
104023A1C
CORE-ALTERNATOR
Return Part Number\r\n, 12 Volt, 80 Amp Alternator
1шт.
146472C91
GENERATOR
ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere
1шт.
104024A1R
REMAN-ALTERNATOR
Remanufactured 12 Volt, 100 Amp Alternator
1шт.
104024A1C
CORE-ALTERNATOR
Return Part Number, 12 Volt, 100 Amp Alternator
1шт.
125849A1R
REMAN-ALTERNATOR
Remanufactured Alternator, 12 Volt 135 Ampere
1шт.
125849A1C
CORE-ALTERNATOR
Return Part Number
1шт.
125849A1GV
ALTERNATOR
Value, 12 Volt, 100 Amp
1шт.
91448C2
ALTERNATOR
ALTERNATOR N114V-40/110A SEE FZG20075
1шт.
91448C2R
REMAN-ALTERNATOR
Reman for New PN 91448C2
1шт.
91448C2C
CORE-ALTERNATOR
Return Part Number
1шт.
91448C2GV
ALTERNATOR
Value, 14V, 110A
1шт.
1
91533C1
HOUSING
HOUSING, front
1шт.
2
91534C1
ROTOR
ROTOR ASSY
1шт.
3
91535C1
STATOR
STATOR ASSY
1шт.
4
91536C1
HOUSING
HOUSING, rear
1шт.
5
91537C1
RETAINER
RETAINER, rear bearing
1шт.
6
91538C1
RECTIFIER
RECTIFIER, diode negative
1шт.
7
91539C1
RECTIFIER
RECTIFIER, diode positive
1шт.
8
91540C1
BRACKET
BRUSH ASSY
1шт.
9
91541C2
SPACER
SPACER, fan
1шт.
10
91542C1
GASKET
GASKET, CVR
1шт.
11
91543C1
RING
RING, V
1шт.
91544C1
SPACER
SPACER
1шт.
12
91545C1
SEALING RING
SEAL RING
1шт.
13
A49690
RECTIFIER
RECTIFIER, diode field
1шт.
14
91547C1
REGULATOR
REGULATOR, voltage
1шт.
15
91548C1
BOLT
BOLT, thru
2шт.
91549C1
WASHER
WASHER, 1/4 x 3/4 OD
1шт.
91550C1
SLEEVE
SLEEVE, plastic no. 10 x 19/32
1шт.
16
91551C1
INSULATOR
INSULATOR, sleeve, 1/4 x 1/2
1шт.
17
91552C1
INSULATOR
INSULATOR, sleeve no. 10 x 1/2
1шт.
18
91553C1
INSULATOR
INSULATOR, .75 x .06 x .265
1шт.
19
91554C1
NUT
NUT, no. 10 x 24 hex CAD
1шт.
91555C1
NUT
NUT, no. 10 x 24 hex lock
1шт.
20
91556C1
NUT
NUT, 1/4 hex
1шт.
21
91557C1
NUT
NUT, 5/8 hex
1шт.
91558C1
NUT
NUT, hex
1шт.
91559C1
NUT
NUT, no. 10-32 sq
1шт.
120614
NUT,Hex, #10 - 32
NUT, , Replaces 91560C1 #10-32
1шт.
22
91561C1
SCREW,Hex, 5/8" - 10 x 32"
SCREW, no. 10-32 x 5/8 hex
1шт.
23
91562C1
SELF-TAP SCREW,Hex, 8"-20 x 1/2"
SCREW, no. 8 x 1/2 hex tapping
1шт.
24
91563C1
SELF-TAP SCREW,8" x 3/4"
SCREW, no. 8 x 3/4 hex tapping
1шт.
91564C1
WASHER
WASHER, no. 10 x 7/16
1шт.
91565C1
WASHER
WASHER, no. 10 x 5/16
1шт.
91566C1
LOCK WASHER
WASHER, lock
1шт.
91567C1
LOCK WASHER
WASHER, 1/4 lock
1шт.
25
91568C1
LOCK WASHER
WASHER, 5/8 lock
1шт.
26
91569C1
SWITCH
SWITCH, thermal
1шт.
91570C1
BRACKET
BRACKET, ident.
1шт.
91571C1
INSULATOR
INSULATOR, armite
1шт.
869707C1
STRAP,368.3mm L
STRAP, nylon, replaces 91572C1
1шт.
91573C1
CONNECTOR, ELEC
CONNECTOR CONNECTOR, sleeve
1шт.
27
91574C1
CAPACITOR
CAPACITOR
1шт.
28
A44581
RING
RING ASSY, slip
1шт.
450145C1
WASHER
WASHER, 10 x 3/4 OD
1шт.
29
76675C91
BALL BEARING,0.6693" ID x 1.5748" OD x 1.724"
BEARING, front and rear
2шт.
30
452688C1
RETAINER
RETAINER, front bearing
1шт.
31
91935C1
BOLT
BOLT, 2-1/2 carriage iridite
1шт.
32
91936C1
INSULATOR
INSULATOR, molded square
1шт.
Выбрано товаров: 67
