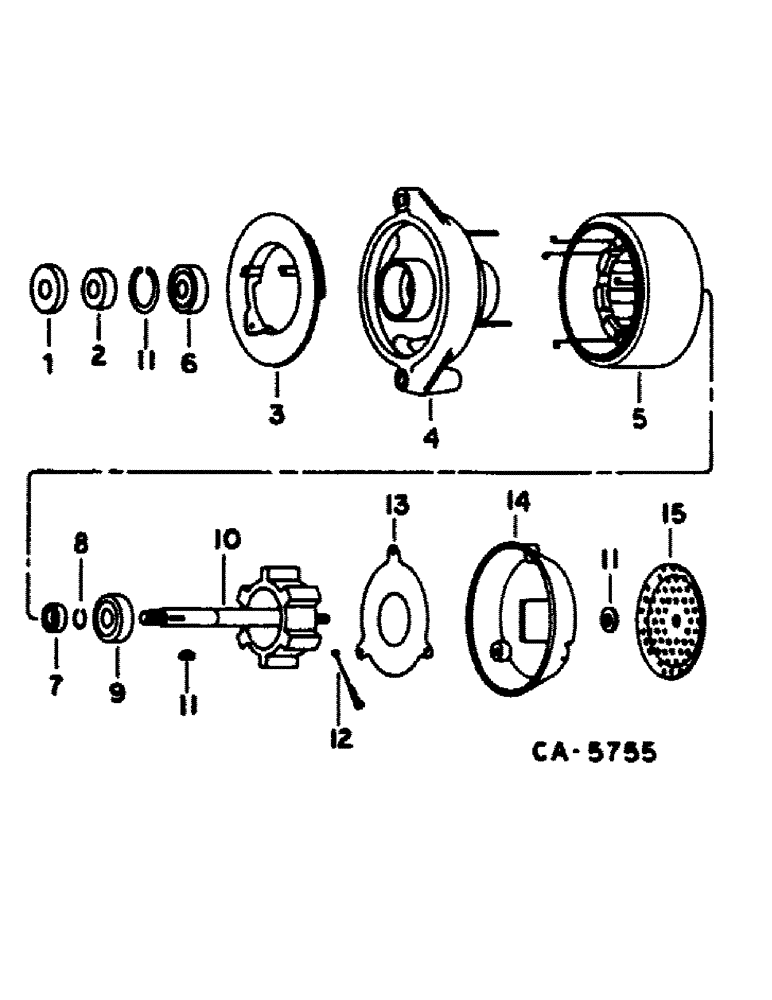

Запчасти Case IH 1480 (08-18) - ELECTRICAL, ALTERNATOR-GENERATOR, W/INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL

.

ALTERNATOR GENERATOR ASSY, for service replacement of alt-gen 146466C91 furnish alt-gen 245713C92 and package 91906C91, the following parts are for 146466C91 only

1шт.

A163085GV

ALTERNATOR

Value, 12V, 105A

1шт.

103807A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 105 Ampere

1шт.

103807A1C

CORE-ALTERNATOR

Return Part Number

1шт.

146466C91

ALTERNATOR

Alternator, 12 VOLT, 80 AMP

1шт.

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 80 Amp Alternator

1шт.

104023A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 Volt, 80 Amp Alternator

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 Volt, 100 Amp Alternator

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 135 Ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

933833R1

LOCK WASHER,M6

LOCK WASHER, M6

1шт.

30033R1

BOLT,Hex, M10 x 90mm, Cl 10.9

BOLT, M10 x 90 PHC class 10.9

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

NUT, M10 PHC P/T class 10

1шт.

30208R1

NUT,M6, Cl 10

NUT, M6 PHC class 10

1шт.

1

130991C1

CUP WASHER

WASHER, front spring and bearing cover

1шт.

2

130992C1

SPACER

SPACER, front

1шт.

3

130994C1

AMPLIFIER ASSY.

AMPLIFIER ASSY, rectifier and heat sink

1шт.

4

130995C2

FRAME ASSY

FRAME ASSY, field winding and end

1шт.

5

130997C2

SHELL

SHELL AND STATOR ASSY

1шт.

6

131097C91

BALL BEARING,0.6693" ID x 1.8504" OD x 0.5512"

BEARING, front

1шт.

7

130998C1

CUP WASHER

WASHER, retainer cup

1шт.

8

130993C1

RING

RING, retainer

1шт.

9

131098C91

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING, rear

1шт.

10

131000C1

ROTOR ASSY.

ROTOR ASSY

1шт.

11

131005C2

KIT

PACKAGE, miscellaneous hardware service

1шт.

12

131003C1

CABLE ASSY.

CABLE ASSY, ground

1шт.

13

131001C1

REGULATOR

REGULATOR ASSY, voltage

1шт.

14

131002C1

COVER

COVER, voltage regulator

1шт.

15

131004C1

SCREEN

SCREEN

1шт.

91906C91

KIT

PACKAGE, alternator completing, consists of

1шт.

91884C1

HARNESS

HARNESS

1шт.

91904C1

HARNESS

HARNESS

1шт.

402314C1

CONNECTION

CONNECTOR

1шт.

702093C1

CABLE TIE

CABLE STRAP STRAP, tie

1шт.

631800C1

TERMINAL CONNECTOR,Female, 1 - 2 mm2

TERMINAL

1шт.

19351R1

GROMMET,1" ID x 1 5/8" x .125", Diag Cut

GROMMET

1шт.

245952C1

HARNESS

ADAPTER

1шт.

245165C1

SHIELD

SHIELD

1шт.

245163C1

STRAP

STRAP

1шт.

30476R1

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT, M10 x 100mm class 8.8

1шт.

30327R1

WASHER,M10 x 21.5 x 2.5, HT

WASHER, 10.8 x 21 x 2.5mm

1шт.

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, M8 x 30mm class 8.8

1шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

WASHER, 8.8 x 21 x 2.5mm

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

.

INSTRUCTIONS (NSS)

1шт.
