(08-16) - ELECTRICAL, CONTROL, REEL SPEED TO GROUND SPEED AUTOMATIC FEEDER CUT OFF CONTROLS, S/N 34001 & ABOVE

Запчасти Case IH 1480 (08-16) - ELECTRICAL, CONTROL, REEL SPEED TO GROUND SPEED AUTOMATIC FEEDER CUT OFF CONTROLS, S/N 34001 & ABOVE (06) - ELECTRICAL

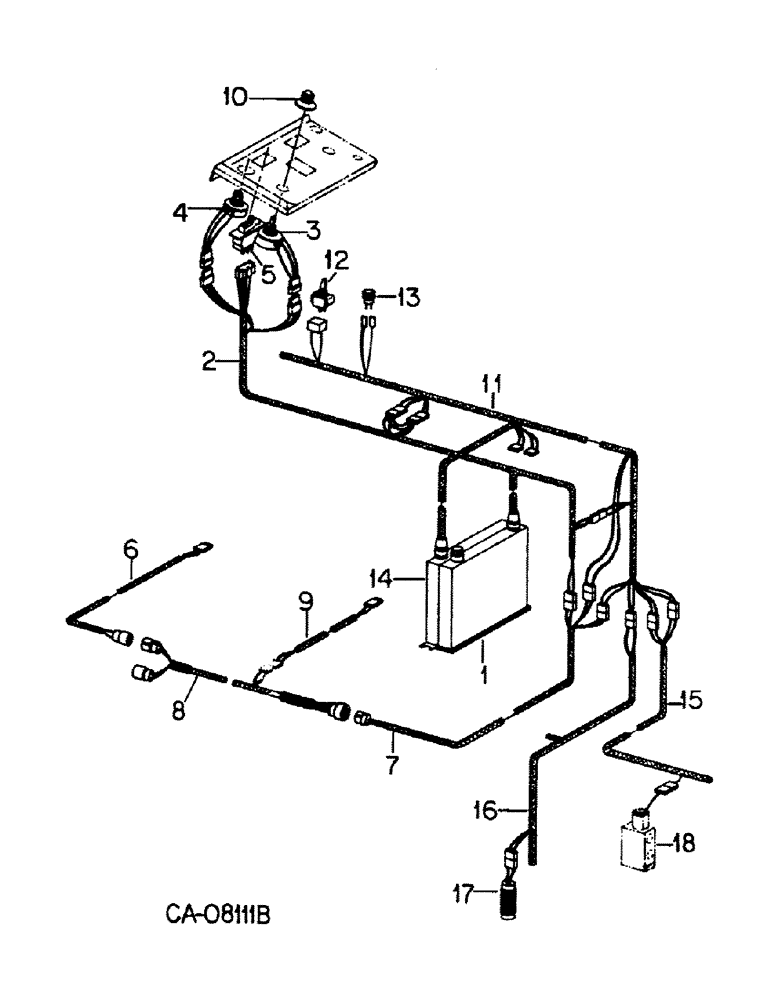

Схема запчастей Case IH 1480 - (08-16) - ELECTRICAL, CONTROL, REEL SPEED TO GROUND SPEED AUTOMATIC FEEDER CUT OFF CONTROLS, S/N 34001 & ABOVE (06) - ELECTRICAL
16
14
15
18
4
5
2
6
13
8
17
1
3
9
7
11
12
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1301289C2

CONTROL

ASSY, auto reel speed to ground speed

1шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT, 1/4 PHC P/T lock type 8

1шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .072 HDN

1шт.

2

1301290C2

HARNESS

ASSY, RH console

1шт.

3

1301443C1

POTENTIOMETER

Reel Speed to Ground Speed Ratio

1шт.

4

1301574C1

POTENTIOMETER

Speed Calibration

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

5

183896C1

SWITCH

potentiometer calibration

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

6

1301584C1

WIRE HARNESS

HARNESS ASSY, reel speed pickup

1шт.

7

HARNESS ASSY, AHC platform, refer to group 10 under automatic header control

1шт.

8

HARNESS ASSY, AHC feeder, refer to group 10 under automatic header control

1шт.

9

1301419C1

HARNESS

ASSY, feeder transducer

1шт.

10

1301036C1

BUTTON

KNOB, control

1шт.

11

HARNESS ASSY, console, refer to this group under instrument panel, Serial Range: -24001

1шт.

12

1301522C1

SWITCH

ASSY, feeder clutch machines w/o feeder reverser

1шт.

12

245634C1

SWITCH

ASSY, feeder clutch machines w/feeder reverser

1шт.

13

109369C91

LIGHT ASSY.

LIGHT ASSY, feeder cutoff indicator, serviceable items are

1шт.

71652C1

LENS

1шт.

200557H1

BULB,C2V, #1815, 14V

LAMP, no. 1815

1шт.

14

1310805C1

CONTROL

ASSY, feeder cutoff

1шт.

26110R1

LOCK NUT,1/4"-20, GC

NUT, 1/4 PHC P/T lock type 8

1шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .072 HDN

1шт.

15

HARNESS ASSY, main front left, refer to this group under left turn, grain tank, unloader, rear lights and fuel pump, Start Serial: 24001

1шт.

16

HARNESS ASSY, tachometer, refer to this group under right turn signal, head lights, digital readout and slip clutch, Start Serial: 24001

1шт.

17

GAGE, reluctance pickup, refer to group 7 under transmission, differential shaft and gears

1шт.

18

SOLENOID, fender clutch valve, refer to group 10 under feeder and separator clutch valve

1шт.
