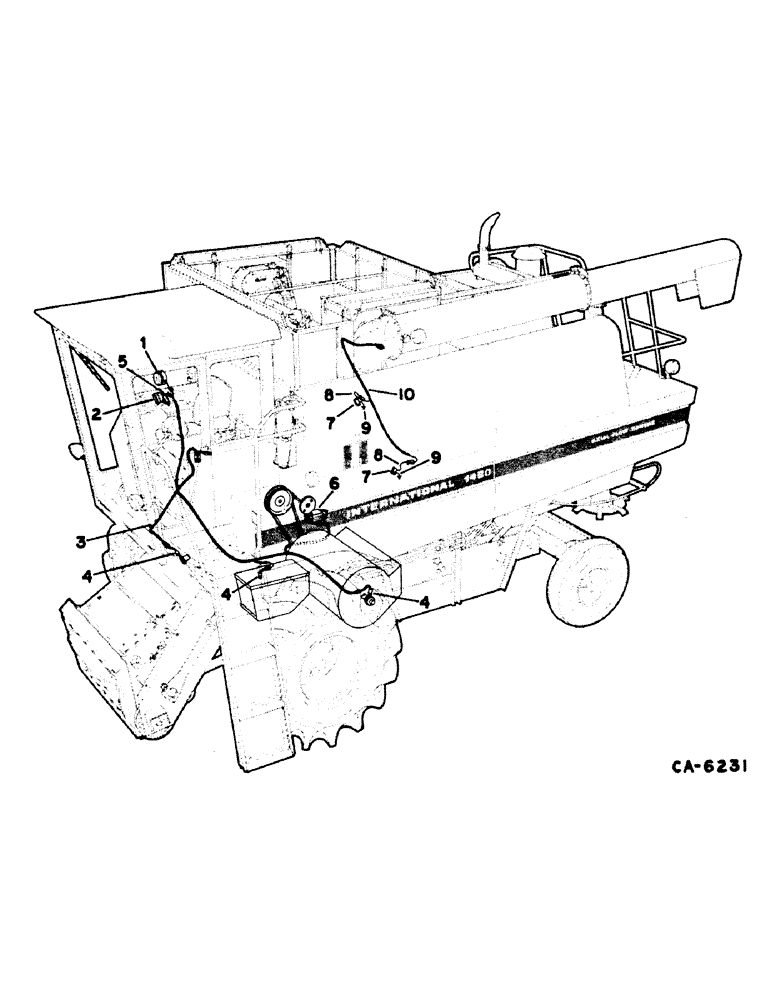

Запчасти Case IH 1480 (08-13) - ELECTRICAL, WIRING DIAGRAM, SERIAL NO. 24000 AND BELOW (06) - ELECTRICAL

1

LAMP ASSY, flasher RH, refer to this group under lights and mountings

1шт.

2

LAMP ASSY, RH head light, refer to this group under lights and mountings

1шт.

3

187796C3

HARNESS

ASSY, tachometer and front lights

1шт.

4

GAGE, reluctance pickup, refer to group 7 under power take off drive, refer to group 21 under rotor, refer to group 24 under cleaning fan and shields

3шт.

5

178890C1

CABLE

ASSY, headlight ground

1шт.

6

MOTOR, fan speed control, refer to group 24 under fan drive

1шт.

7

SWITCH ASSY, elevator and shaker shaft alarm, refer to group 23 under shaker shaft and auger drive, refer to group 25 under grain and tailings elevator drive

2шт.

8

187736C1

CABLE

ASSY, slip clutch

2шт.

9

175008C1

CABLE ASSY.

CABLE ASSY, warning switch ground

2шт.

10

183586C1

HARNESS

ASSY, slip clutch

1шт.
