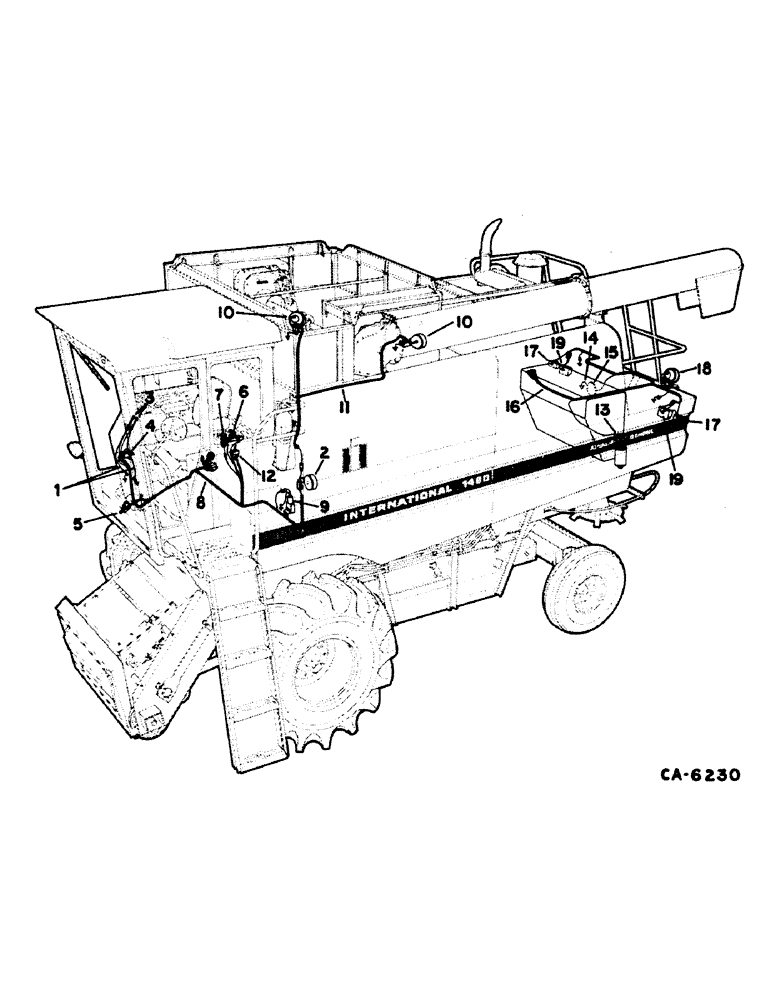

Запчасти Case IH 1480 (08-09) - ELECTRICAL, WIRING DIAGRAM, LEFT TURN, GRAIN TANK, UNLOADER, REAR LIGHTS & FUEL PUMP S/N 24000&BELOW (06) - ELECTRICAL

1

187586C1

HARNESS

CABLE ASSY, indicator lights ground

2шт.

2

LAMP ASSY, flasher front LH, refer to this group under lights and mountings

1шт.

3

121684C91

LIGHT ASSY.

INDICATOR LIGHT

2шт.

71892C1

LENS

2шт.

200557HA

BULB, no. 1815

2шт.

4

131066C91

SWITCH

ASSY, turn signal

1шт.

5

196825C1

IGNITION SWITCH

SWITCH ASSY, safety start

1шт.

124934

HOSE

1/2-NF jam type 5

1шт.

6

633643R91

SWITCH

ASSY, parking brake warning light

1шт.

131044

LOCK WASHER

Lock, #6

1шт.

68107H

LOCK NUT

parking brake warning light switch

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

7

195778C91

LIGHTER, CIGARETTE

LIGHTER ASSY, cigarette

1шт.

8

195782C2

CABLE

HARNESS ASSY, main front

1шт.

9

SOLENOID, feeder clutch valve, refer to group 10 under feeder and separator clutch valve

1шт.

10

LAMP ASSY, grain tank & unloader, refer to this group under lights and mountings

2шт.

11

187792C2

HARNESS

ASSY, grain tank and unloader lights

1шт.

12

131039C1

SWITCH

ASSY, fan speed control

1шт.

13

PUMP ASSY, fuel, refer to group 12 under fuel lines

1шт.

14

196262C2

CABLE ASSY.

CABLE ASSY, fuel gage ground

1шт.

15

GAGE ASSY, fuel tank, refer to group 12 under fuel tank

1шт.

16

1301535C2

HARNESS

ASSY, main rear

1шт.

17

LAMP ASSY, rear warning, refer to this group under lights and mountings

2шт.

18

LAMP ASSY, night light, refer to this group under lights and mountings

1шт.

19

LAMP ASSY, tail, refer to this group under lights and mountings

2шт.

71485C1

PACKAGE

KIT, turn signal switch and hardware

1шт.
