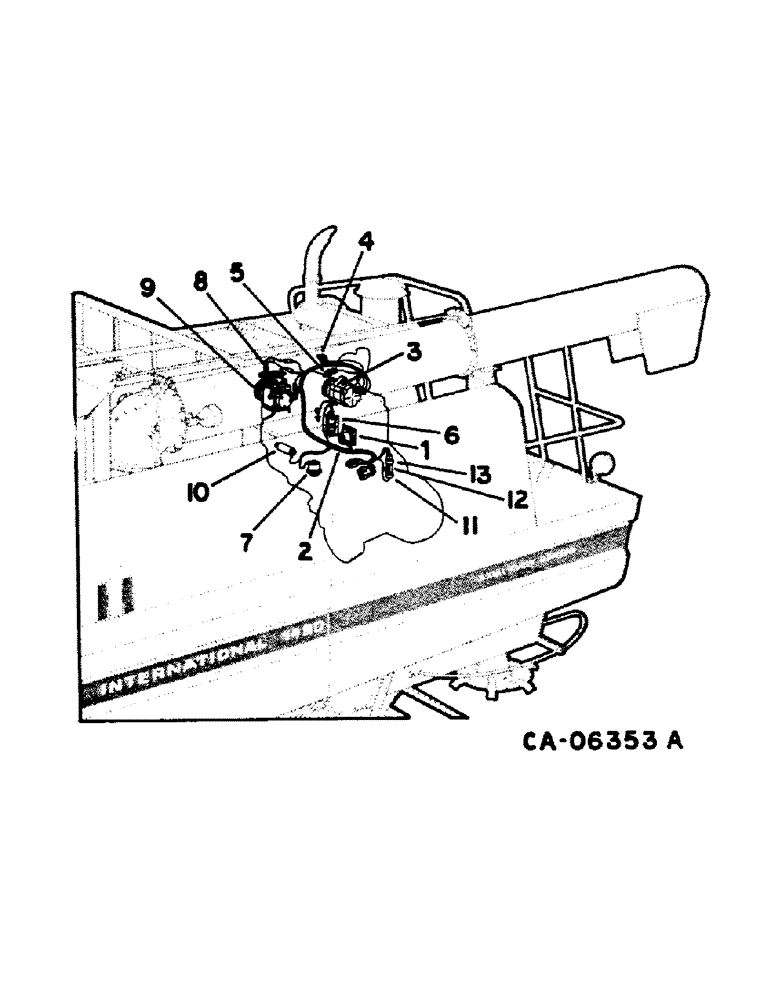

Запчасти Case IH 1480 (08-08) - ELECTRICAL, WIRING DIAGRAM, ENGINE (06) - ELECTRICAL

1

RELAY, cranking motor solenoid, refer to this group under wiring diagram main harness, starter and battery

1шт.

2

121549C1

CABLE

HARNESS ASSY, engine, Serial Range: -24000

1шт.

2

245950C1

HARNESS

ASSY, engine, replaces 107644C2, Start Serial: 24001

1шт.

3

ALTERNATOR-GENERATOR, refer to this group under alternator- generator

1шт.

4

121756C2

SENSOR

SENDER, water temperature gage

1шт.

5

130861C1

SWITCH

water hi-temp light

1шт.

6

SOLENOID ASSY, ether injection, refer to group 12 under ether starting

1шт.

7

130707C3

SENDER UNIT

SENDER, oil pressure gage

1шт.

8

SWITCH, high pressure, refer to group 13 under air conditioner compressor and condenser

1шт.

9

CLUTCH ASSY, compressor, refer to group 13 under air conditioner compressor and condenser

1шт.

10

681494C92

RELAY

SOLENOID ASSY, injection pump

1шт.

Ref #10 - 1803195c91 Solenoid Assy, elec-fuel Shut-off Fuction. 10/19/95 be

1шт.

11

392249R92

SWITCH

low oil pressure light

1шт.

12

9409939

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

PIPE, tee 1/8-27, Start Serial: 24001

1шт.

443998

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

1/8-27 pln auto pipe

1шт.

13

131424C1

SWITCH

pressure, Start Serial: 24001

1шт.
