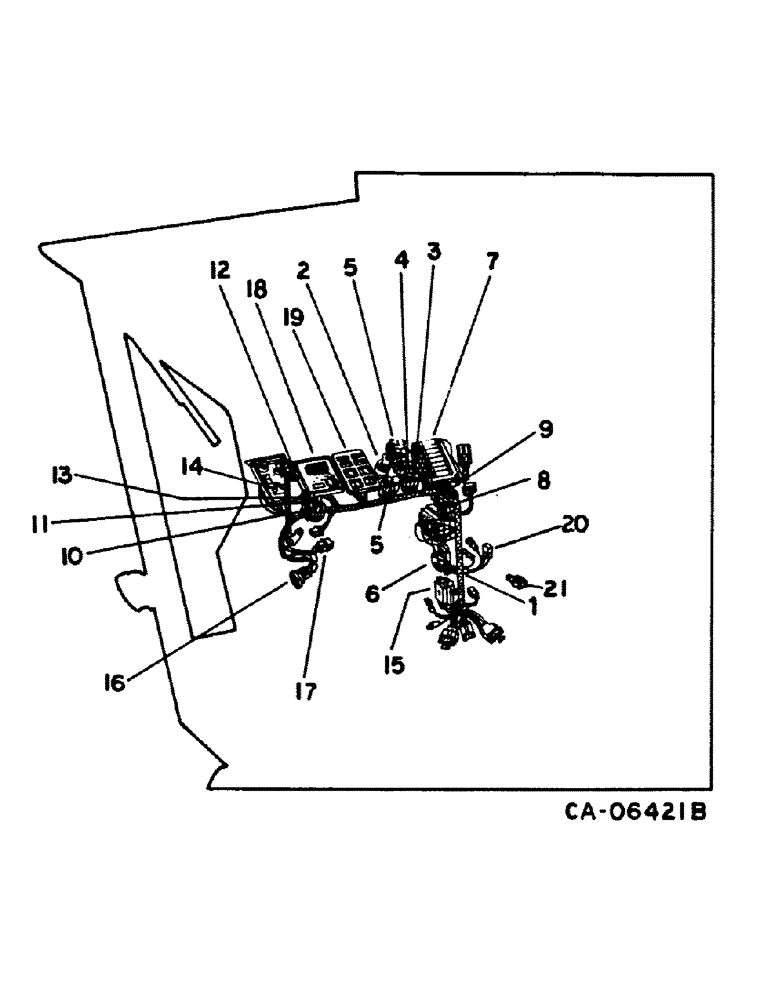

Запчасти Case IH 1480 (08-06) - ELECTRICAL, WIRING DIAGRAM, INSTRUMENT PANEL, SERIAL NO. 24001 AND ABOVE (06) - ELECTRICAL

1

245298C1

HARNESS

ASSY, console, replaces 1301530C3

1шт.

NLS

NO LONGER SERVICED

no. 10 x 3/4 znp h/hd mach

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

2

107682C1

SWITCH

ASSY, key starting

1шт.

131313C1

KEY, IGNITION

switch

1шт.

365502R1

NUT

ignition switch

1шт.

375431R1

LOCK WASHER

19/32 x 1 x 11 ga

1шт.

3

195605C1

SWITCH

ASSY, night & flasher lights

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

4

1301004C1

SWITCH

ASSY, headlights

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

5

198960C1

SWITCH

ASSY, ether start & rotor speed & fan speed

3шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

6

107655C1

SOLENOID SWITCH

SWITCH ASSY, magnetic start

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 t/hds

1шт.

7

196875C1

BLOCK

fuse panel

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

1шт.

9426334

FUSE,10 Amp, Type 3AG

cartridge type, 10 amp

4шт.

9428126

FUSE,20 Amp, Type SFE

cartridge type, 20 amp

2шт.

223-31

FUSE,10 Amp, Type 3AG

cartridge type, 30 amp

1шт.

9426868

FUSE,5 Amp, Type 3AG

cartridge type, 5 amp

1шт.

8

121590C1

RELAY

alternator, Serial Range: 24001-54000

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

9

262969C91

FUSE

BREAKER, circuit, 30 amp

2шт.

262965C91

BREAKER

circuit, 10 amp

1шт.

245870C1

BRACKET

circuit breaker, replaces 1301156C1 and 1202952C1

1шт.

1301157C1

BAR

circuit breaker

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

1шт.

10

1301521C1

SWITCH

ASSY, separator clutch

1шт.

11

SWITCH ASSY, feeder clutch, refer to this group under control reel speed to ground speed and feeder cutoff

1шт.

12

91926C1

SWITCH

ASSY, header lift control, replaces 1301092C1

1шт.

13

1301175C1

SWITCH

reel lift control

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

14

1301176C1

SWITCH

ASSY, reel speed

1шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

15

187609C1

RECTIFIER

ASSY, diode

1шт.

Diode reduces 12 Volt system to 6 Volt to accept 6volt relay 121590C1 if relay is burning out, replace diode.

1шт.

937875R1

SCREW,Serr, 1/4" - 20

no. 1/4 x 3/4 t/hds

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

16

121628C1

BUZZER

audible alarm

1шт.

17

1301079C1

HARNESS

ASSY, header lift handle

1шт.

18

TACHOMETER, multi-position, refer to group 11 under instruments and gages

1шт.

19

GAGE CLUSTER, refer to group 11 under instruments and gages

1шт.

20

3221235R2

RELAY

miniture

1шт.

21

245952C1

HARNESS

alternator relay connector

1шт.
