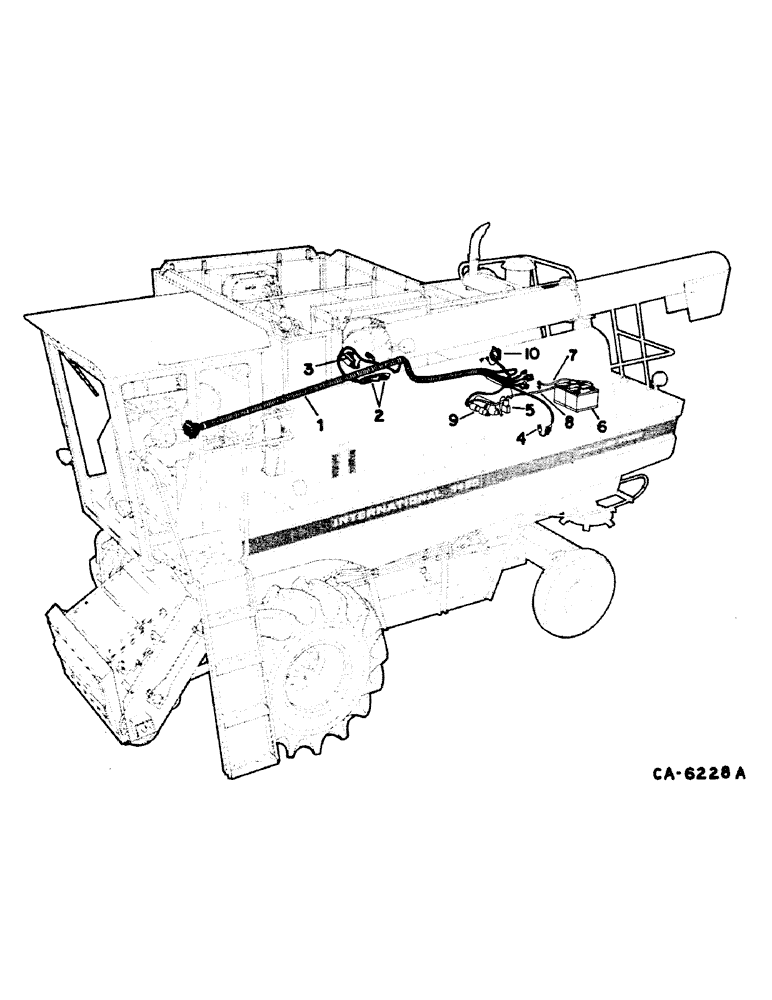

Запчасти Case IH 1480 (08-03) - ELECTRICAL, WIRING DIAGRAM, MAIN HARNESS, STARTER AND BATTERY (06) - ELECTRICAL

1

187791C1

HARNESS

ASSY, main center, Serial Range: -24000

1шт.

1

1301534C3

HARNESS

ASSY, main front, Start Serial: 24001

1шт.

2

186057C1

SWITCH

variable pulley limit

2шт.

186058C1

IGNITION SWITCH

ACTUATOR, limit switch

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hds mach

1шт.

138526

LOCK WASHER

no. 6 int tooth lock

1шт.

103337

WASHER,#6

1шт.

3

MOTOR ASSY, variable electric, refer to group 21 under rotor drive adjustment

1шт.

4

GAGE, reluctance pick-up, refer to group 7 under power take off drive

1шт.

5

SOLENOID, separator clutch valve, refer to group 10 under feeder and separator clutch valve

1шт.

6

BATTERY, refer to this group under battery and mounting

1шт.

7

194377C1

CABLE ASSY.

CABLE ASSY, battery ground

1шт.

8

194378C1

CABLE ASSY.

CABLE ASSY, battery positive

1шт.

364910R1

BOOT

battery to solenoid cable

1шт.

9

CRANKING MOTOR, refer to this group under cranking motor

1шт.

10

121613C1

IGNITION SWITCH

RELAY, cranking motor solenoid

1шт.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4 x 3/4 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

158477C91

CABLE

ASSY, engine to combine ground, not illustrated

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
