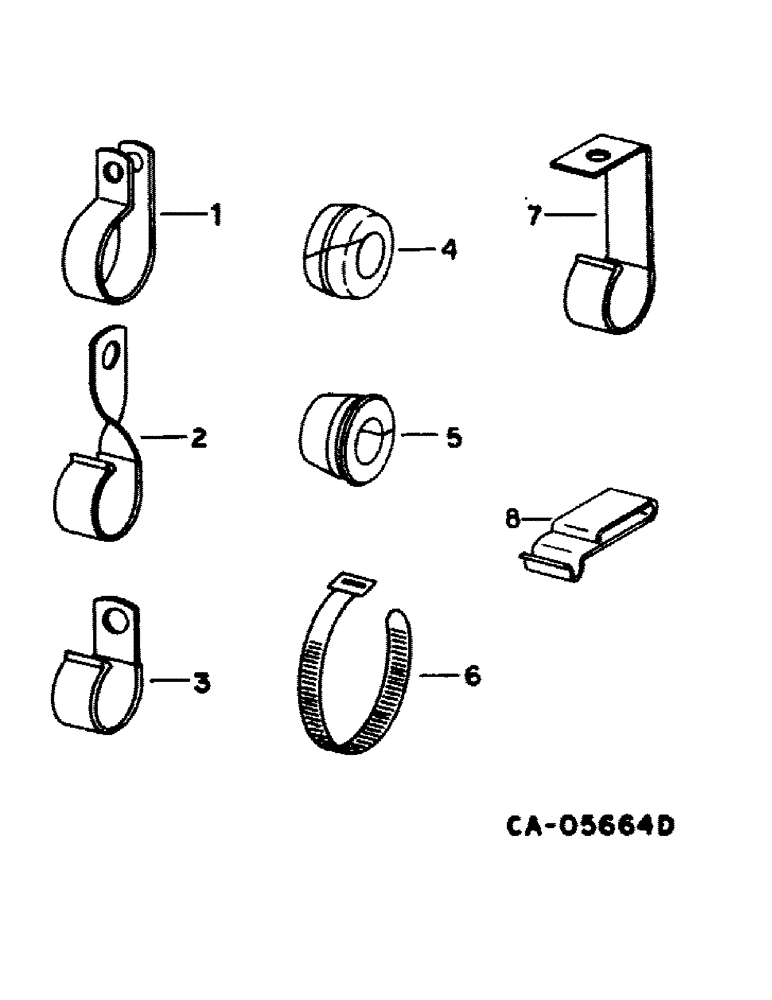

Запчасти Case IH 1480 (08-01) - ELECTRICAL, CLIPS, GROMMETS AND STRIPS (06) - ELECTRICAL

1

129355H1

NO LONGER SERVICED

CLIP, center harness

3шт.

Uninsulated

1шт.

1

299607C1

CLIP,1 3/16", Insul, 1/4" Bolt

console harness

3шт.

Insulated

1шт.

1

573099R2

CLIP

battery cable

2шт.

Insulated

1шт.

1

1300542C1

CLAMP,1 3/8", 5/16" Bolt

CLIP, main center harness, replaces 315411R1

3шт.

2

363660R1

CLIP

used for, (2) alternator, front left harness, feeder harness, (2) cranking motor

1шт.

Insulated

1шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, used for, (5) fan motor lower, (12) front work light, (4) front left harness, (16) main center harness, (4) RH light harness, (10) tachometer, throttle bracket, pulley limit switch, (2) hyd. motor harness

1шт.

Insulated

1шт.

3

362126R1

CLIP

used for, center harness long, (2) front left

1шт.

Insulated

1шт.

3

366460R1

CABLE CLIP

CLIP, used for, (3) shaft speed monitor control

1шт.

Insulated

1шт.

3

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP, used for, (2) main center harness, (2) console harness, (8) feeder harness, (7) front harness, fuel filter bracket, (13) rear harness, RH light harness, steering column, (3) tachometer, power unit

1шт.

Insulated

1шт.

3

366460R1

CABLE CLIP

CLIP, used for, (16) center harness, (7) front work light harness

1шт.

Insulated

1шт.

3

362123R1

CLIP

(2) crankcase and water pump

1шт.

Insulated

1шт.

3

362667R1

CLIP

ether solenoid bracket, A/C clutch wire

1шт.

Insulated

1шт.

3

362666R1

CLIP

shaft speed monitor harness

1шт.

Insulated

1шт.

4

117959

GROMMET,5/16" ID x .719" x .062"

5/16 x .75, used for, shaft speed monitor, (3) center harness, rotary air screen sensor, RH light harness tachometer

1шт.

Ref. 4 Part should be P/N128449C1.

1шт.

4

117973

GROMMET,5/16" ID x 1 3/8" x .062", Diag Cut

5/16 x 1.375, used for, RH light harness, tachometer

1шт.

4

117971

GROMMET,1/4" ID x 1" x .062", Diag Cut

1/4 x 3/4, used for, rear harness

1шт.

4

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

5/16 x 1, use for, RH light harness

1шт.

4

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

1/2 x 1-1/16 x 7/16, used for, tachometer harness

1шт.

4

128449

GROMMET, transducer harness

1шт.

5

198820C1

GROMMET

plug, used for, w/o air conditioning, w/o shaft speed monitor, w/o heater, w/o auto load control, w/o grain loss monitor, w/o power guide drive, w/o automatic control, auto reel drive and feeder cut-off, unloader cable hole

1шт.

5

198821C1

GROMMET,3.18mm ID x 41.1mm OD x 26.9mm Thk

1/8 in, ID, used for, unloader cable

1шт.

5

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

cable seal 1/4 in, ID

2шт.

5

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

cable seal 3/8 in, ID, used for, parking brake cable, transmission shift cable, throttle

1шт.

5

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

cable seal 1/2 in. ID, used for, shaft speed monitor, right light harness

1шт.

5

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

cable seal 5/8 in. ID, used for feeder harness, hydrostatic drive, left light harness, right deck harness

1шт.

5

195803C1

GROMMET

used for, RH light harness

1шт.

5

195806C1

GROMMET

1.12 x .750, used for, operators platform harness

1шт.

6

702093C1

CABLE TIE

STRAP, tie

1шт.

Used for, (3) engine, (3) battery cable, hyd. motor harness, (3) fan motor lower, (4) front left harness, fuel tank ground cable, (6) automatic reel speed harness, (3) feeder harness, (11) monitor harness, (8) AHC control harness, indicator lights ground cable, (10) main rear, (2) RH light harness, (24) shaft speed monitor control, (2) steering column, (2) tachometer

1шт.

6

306132C1

CABLE TIE,14.5" L

STRAP, tie, used for, fan motor lower

1шт.

6

289862C1

CABLE TIE,3/16" x 7"

STRAP, tie, used for, head light ground cable

1шт.

7

(Not used this application)

1шт.

8

(Not used this application)

1шт.
