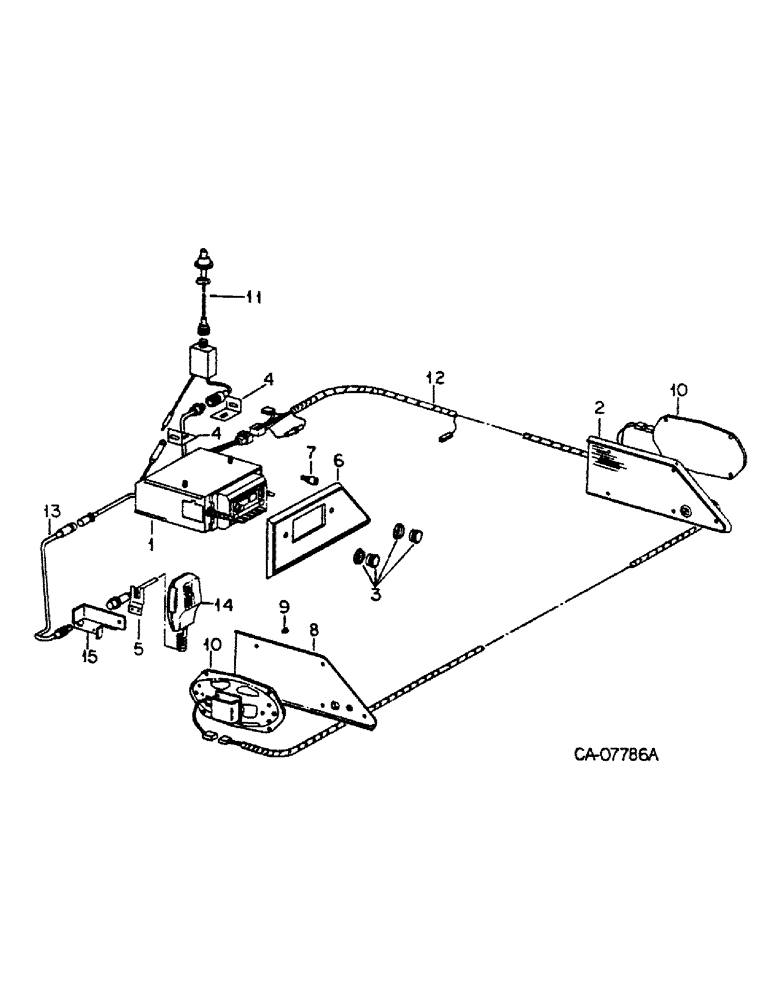

Запчасти Case IH 1480 (13-34) - SUPERSTRUCTURE, RADIO, AM/FM/CB MULTIPLEX (05) - SUPERSTRUCTURE

142947C93

RADIO

PARTS ACCESSORY, AM/FM/CB MPX

1шт.

1

143328C1

RADIO

AM/FM/CM MPX

1шт.

142920C1

WASHER

shaft

2шт.

142974C1

NUT

M9 x .75 small shaft

2шт.

142945C1

STUD, adapter

1шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER, 1/4 int-ext tooth lock

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

2

111403C1

PANEL

speaker trim, RH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC o/hdcr tap

1шт.

3

117993C1

PACKAGE

KIT, radio control knobs, consists of (2) knob, chrome (NSS), knob, volume (NSS), knob, tuning (NSS)

1шт.

4

117818C1

ANGLE

radio mounting

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

5

118598C1

CLIP

microphone mounting

1шт.

142937C1

SCREW,Phil Pan Hd, #8 - 18 x 1/2"

8-18 x 1/2 cr tap

1шт.

6

1252433C1

PANEL, radio trim

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC o/hdcr tap

1шт.

7

117995C1

PACKAGE

KIT, trim panel fastener, consists of 5 fasteners

3шт.

8

111402C2

PANEL

speaker trim, LH

1шт.

27689R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW, #8-18 x 1-3/4 PHC o/hdcr tap

1шт.

9

353402

PLUG, plastic, replaces 117730C1

1шт.

9

353406

PLUG, plastic, replaces 142940C1

1шт.

10

142956C1

SPEAKER

4 x 8 4 OHM

2шт.

11

118439C91

ANTENNA

ASSY, combination AM/FM/CB, consists of the following serviceable parts

1шт.

80919C1

COUPLING

COUPLER ASSY

1шт.

80921C1

BASE

ASSY

1шт.

80922C1

ANTENNA

replaces the following parts

1шт.

142978C1

UNION

COUPLER ASSY

1шт.

142979C1

BASE

ASSY

1шт.

142982C1

VALVE SPRING

SPRING

1шт.

142980C1

SCREW,M6 x 0.86"

1шт.

142981C1

NUT

1шт.

143113C1

SCREW,Hex Skt, M5 x 0.156" L

1шт.

142983C1

BAR

ANTENNA

1шт.

142969C1

NUT

1шт.

142984C1

SCREW,M3 x 3.70"

see note, also furnish 2 in. of 1-3/4 in. duct or plastic tape for use with antenna 118439C91

1шт.

12

143117C1

HEATER TUBE,0.625" OD, 1863.895 mm Length

HARNESS ASSY, radio and speaker

1шт.

126049

FUSE,5 Amp, Type 1AG

1AG5, 5 amp

1шт.

13

142995C1

CABLE

ASSY, microphone extension

1шт.

14

1252436C91

TRANSMITTER

MICROPHONE ASSY

1шт.

15

118595C1

BRACKET

ASSY, microphone mounting

1шт.

444272

SCREW, #8 x 1/4 znp p/hdcr l/w mach

1шт.

27328R1

SCREW

no. 8 x 1/2 PHC p/hdcr mach

1шт.

445106

SPARE PART

NUT, 8-32 PHC style 1

1шт.
