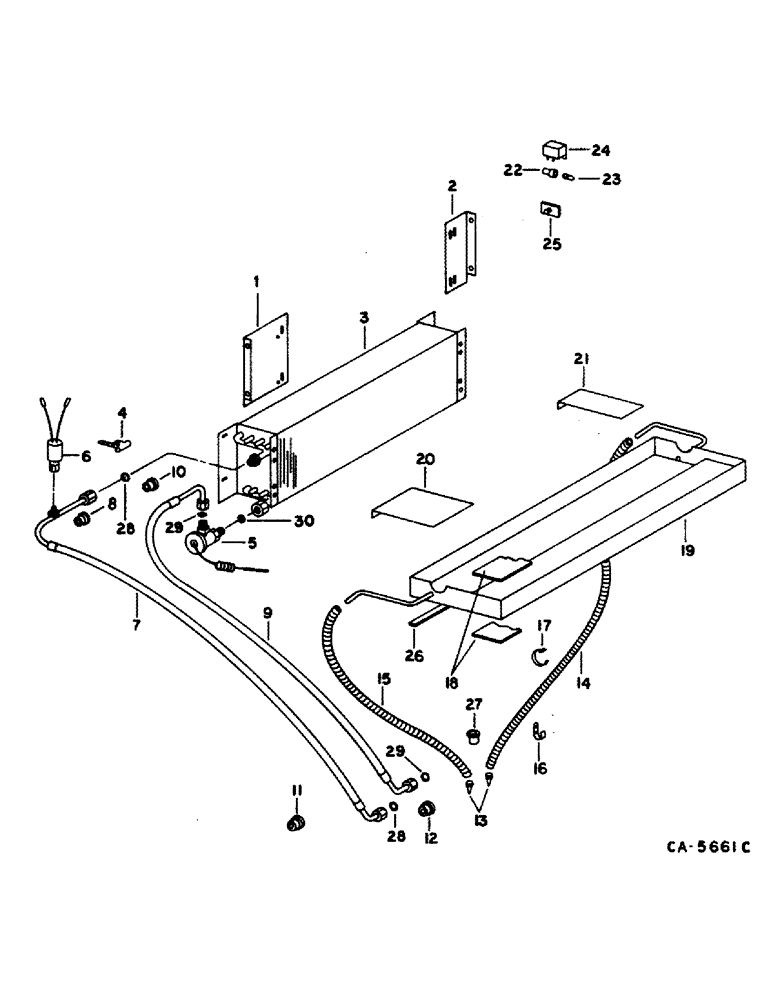

Запчасти Case IH 1480 (13-27) - SUPERSTRUCTURE, AIR CONDITIONER EVAPORATOR (05) - SUPERSTRUCTURE

1

198093C1

SUPPORT ASSY.

SUPPORT, evaporator mtg LH, Serial Range: -14000

1шт.

1

1301248C1

SUPPORT

evaporator mtg LH, Start Serial: 14001

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

2

1982871C

SUPPORT, evaporator mtg RH, Serial Range: -14000

1шт.

2

1301320C1

SUPPORT

evaporator mtg RH, Start Serial: 14001

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

3

111468C2

CORE

ASSY, evaporator, Serial Range: -14000

1шт.

3

118315C1

EVAPORATOR

CORE ASSY, evaporator, Start Serial: 14001

1шт.

23998R1

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Hd, 1/4" x 1/2"

1шт.

25707R1

WASHER,.281" x 5/8" x .075", HDN

.281 x .625 x .072 HDN

1шт.

4

118444C1

CLAMP

expansion valve

1шт.

5

66398C1

VALVE

expansion, Serial Range: -14000

1шт.

5

1280333C1

VALVE

expansion, replaces 118305C3, Start Serial: 14001

1шт.

6

111267C4

SWITCH, A/C LOW PRES

SWITCH, low pressure

1шт.

6

111267C4GV

SWITCH, A/C LOW PRES

SWITCH, low pressure

1шт.

7

198552C1

HOSE

ASSY, air conditioner upper, Serial Range: -14000

1шт.

7

183904C1

A/C HOSE

HOSE ASSY, air conditioner upper, Start Serial: 14001

1шт.

8

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

air conditioner lower hose

1шт.

9

198279C2

HOSE ASSY.

HOSE ASSY, air conditioner lower, Serial Range: -14000

1шт.

9

183905C1

HOSE ASSY.

HOSE ASSY, air conditioner lower, Start Serial: 14001

1шт.

10

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

air conditioner upper hose

1шт.

11

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID

1шт.

12

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8 ID

1шт.

13

109239C2

CHECK VALVE

VALVE, CHECK, Condensate drain hose

2шт.

14

HOSE, condensate RH, use 140 in. of 1/2 ID hose from roll marked 198091C1

1шт.

15

HOSE, condensate LH, use 75 in. of .5 ID hose from bulk stock marked 198091C1

1шт.

16

362126R1

CLIP

RH condensate hose

3шт.

17

702093C1

CABLE TIE

STRAP, condensate hose

1шт.

17

306132C1

CABLE TIE,14.5" L

STRAP, condensate hose

3шт.

18

198144C2

STRIP

condensate drain pan

2шт.

19

198199C2

PAN

ASSY, condensate drain

1шт.

172378

SCREW,Hex, #10 - 32 x 1/2"

#10NF x 1/2 h/hd tap

1шт.

20

198298C1

SUPPORT

condensate drain pan LH

1шт.

167156

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10NF x 3/8 p/hdcr tap

1шт.

21

198275C1

SUPPORT

condensate drain pan RH

1шт.

167156

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10NF x 3/8 p/hdcr tap

1шт.

22

LAMP ASSY, air conditioner low pressure indicator light, refer to this group under wiring diagram, operators cab

1шт.

23

200557H1

BULB,C2V, #1815, 14V

no. 1815

1шт.

24

RELAY, air conditioner low pressure, indicator light, refer to this group under wiring diagram, operators cab

1шт.

25

BLOCK ASSY, junction, refer to this group nder wiring diagram, operators cab

1шт.

26

STRIP, condensate drain pan, use 34.5 in. from bulk stock marked 187874C1

1шт.

27

195806C1

GROMMET

condensate hose

2шт.

28

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

upper hose, Start Serial: 14001

2шт.

29

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Lower hose, Start Serial: 14001

2шт.

30

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

expansion valve, Start Serial: 14001

1шт.

TAPE, insulation, use 3050mm from bulk roll marked 1954475C1

1шт.
