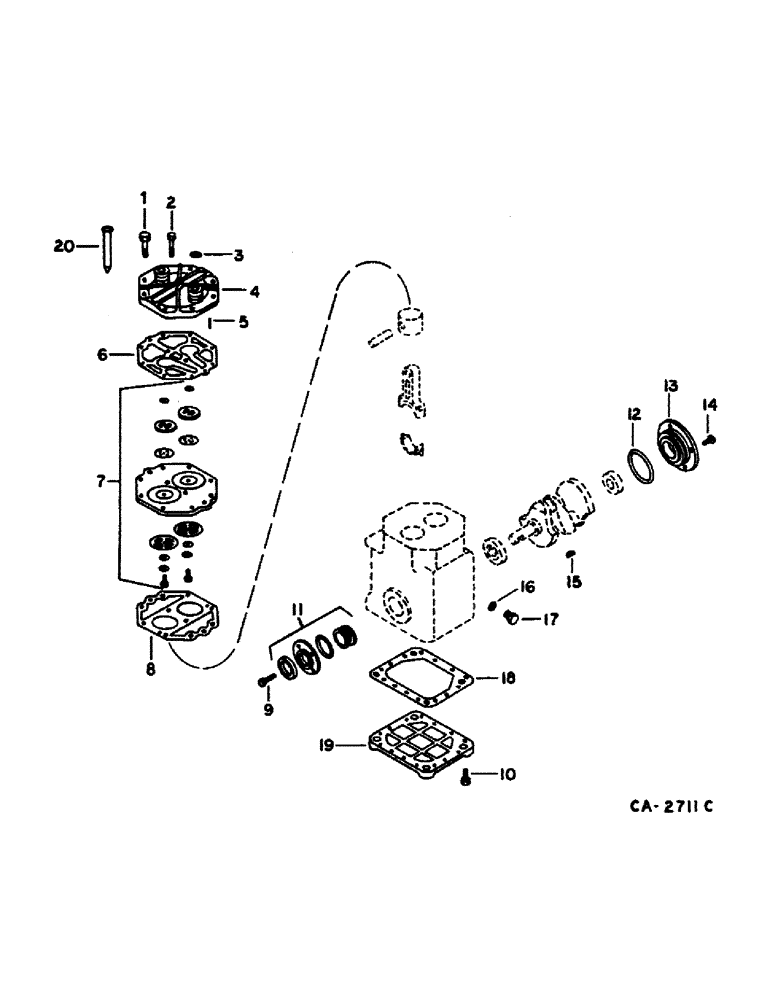

Запчасти Case IH 1480 (13-26) - SUPERSTRUCTURE, COMPRESSOR, AIR CONDITIONER (05) - SUPERSTRUCTURE

118250C91

COMPRESSOR

ASSY, air conditioner

1шт.

1924006C2

REMAN-A/C COMPRESSOR

REMANUFACTURED AIR COMPRESSOR ASSY

1шт.

1924007C1

CORE-A/C COMPRESSOR

Return Number, AIR COMPRESSOR ASSY

1шт.

1

20641R1

SCREW

5/16 x 1-3/8 pln h/hd mach

8шт.

2

374805R1

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

SCREW, 5/16 x 1.500 type 8 12 PT flt

2шт.

3

118469C1

GASKET

service valve

2шт.

4

479011C91

KIT

cylinder head w/gaskets, includes ref nos. 6 and 8

1шт.

5

21247R1

DOWEL,1/8" x 3/4"

PIN, 1/8 x 3/4 dowel

2шт.

6

431756C1

CYLINDER HEAD GASKET

head

1шт.

7

394430C91

KIT

valve plate w/gaskets, includes ref nos. 6 and 8

1шт.

8

431761C1

CYLINDER HEAD GASKET

valve plate

1шт.

9

443874

BRACKET

no. 10 x 1/2 znp h/hd mach

6шт.

10

21024R1

SCREW

1/4 x 5/8 znp h/hd mach

14шт.

11

592263C91

SEAL KIT

shaft seal front, replaces 428606C91

1шт.

12

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

o-ring

1шт.

13

431757C1

HOUSING

rear bearing

1шт.

14

120585

SCREW,Sl Flat Hd, 1/4" - 20 x 5/8"

Slotted Flat Hd, 1/4"-20 x 5/8"

4шт.

15

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

16

431764C1

SEAL,8.484mm ID x 1.778mm Width

o-ring oil plug

2шт.

17

86982693

PLUG

3/8-24 hex. outside hd filler

2шт.

18

431760C2

GASKET

base

1шт.

19

431755C1

PLATE

base

1шт.

20

118210C1

FILTER SCREEN

SCREEN, suction filter

1шт.
