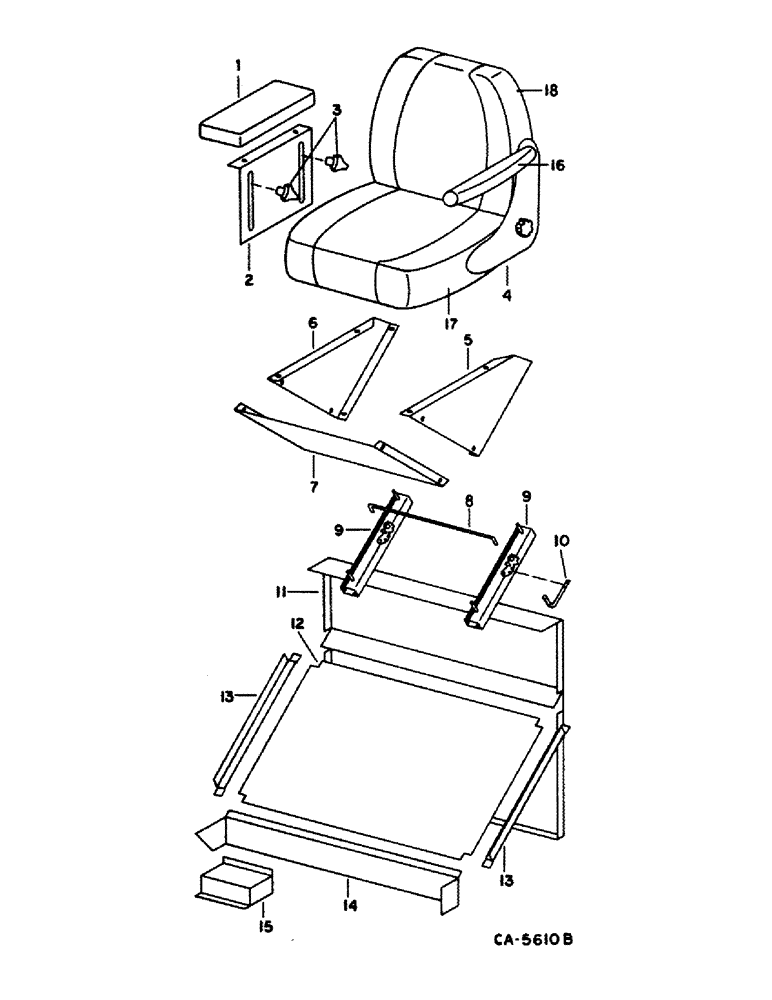

Запчасти Case IH 1480 (13-12) - SUPERSTRUCTURE, OPERATORS SEAT, SERIAL NO. 24000 AND BELOW (05) - SUPERSTRUCTURE

1

1301216C3

ARMREST

REST, seat arm

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

2

192999C1

SUPPORT

arm rest mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 51/6 x 3/4 crg type 5

1шт.

3

196970C1

KNOB

arm rest

2шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

4

187567C1

SEAT

ASSY, operators, includes ref nos. 16 thru 18

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

192993C1

SUPPORT

seat LH

1шт.

59803R1

BOLT, 5/16 x 1 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

21496R1

WASHER

.344 x .750 x .105

1шт.

6

192994C1

SUPPORT

seat RH

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

1шт.

9838017R1

NUT, 5/16 flange lock

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

7

194764C1

CHANNEL

seat bracket

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

192996C1

ROD

seat adjusting

1шт.

9

192995C1

ADJUSTER

ASSY, seat

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

98199C1

ROD

seat adjuster, replaces 192997C1

1шт.

26667R1

SCREW

no. 10 x 3/4 PHC p/hdcr mach

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

11

193003C1

SUPPORT ASSY.

SUPPORT ASSY, operator platform center rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

12

193000C1

PLATE

operator platform center

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

13

193001C2

SUPPORT

ASSY, operator platform center side

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

14

193006C3

SUPPORT

ASSY, operator platform center front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

195554C1

COVER ASSY

brake master cylinder

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

16

180919C1

CUSHION

ASSY, arm rest L.H.

1шт.

17

180917C1

CUSHION

ASSY, seat

1шт.

18

180918C1

CUSHION

ASSY, back

1шт.
