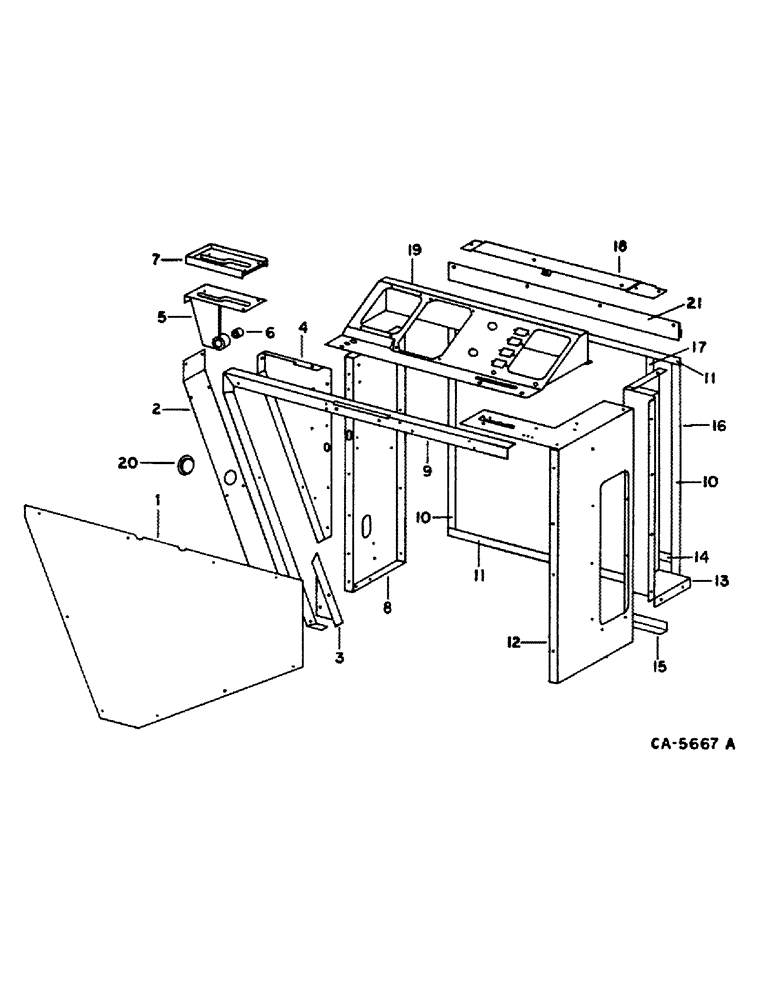

Запчасти Case IH 1480 (13-06) - SUPERSTRUCTURE, RIGHT CONSOLE, SERIAL NO. 24000 AND BELOW (05) - SUPERSTRUCTURE

1

193035C3

LARGE PLATE

PLATE, right console inner

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 p/hdcr tap

1шт.

2

193034C1

SUPPORT

right console extension front

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 p/hdcr tap

1шт.

3

195991C1

SUPPORT

RH console extension lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

195992C2

SUPPORT

RH console extension RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

51/6 x 3/4 znp slt-truss-hd

1шт.

5

193277C91

SUPPORT ASSY.

SUPPORT ASSY, console extension, hydrostatic drive, includes ref. no. 6

1шт.

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 PHC p/hdcr tap

1шт.

6

165704C1

BUSHING

console extension support

1шт.

7

198988C1

COVER

console, hydrostatic drive

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

8

193064C8

SUPPORT

right console front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

51/6 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

9

193031C3

SUPPORT

ASSY, right console front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

10

STRIP, console cover, use 26.7 in. from bulk stock marked 195917C2

2шт.

11

STRIP, console cover, use 27.2 in. from bulk stock marked 195917c2

2шт.

12

193030C2

SUPPORT

right console rear

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

13

195958C1

SUPPORT

right console electrical

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

STRIP, console cover, use 3.0 in.. from bulk stock marked 195917C2

1шт.

15

193033C2

ANGLE

right console outer lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

16

1301218C1

PLATE

right console outer, replaces 193037C1

1шт.

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 PHC p/hdcr tap

1шт.

17

STRIP, console cover, use 25.4 in. from bulk stock marked 195917C2

1шт.

18

196681C1

SUPPORT

ASSY, right console outer top

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flang elock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

19

195667C2

PANEL

ASSY, instrument

1шт.

167163

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10NF x 1/2 p/hdcr tap

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

20

187768

HOLE PLUG BUTTON,2 1/2"

PLUG, 2-1/2 button

1шт.

21

1301334C1

SUPPORT

RH outer cover, Start Serial: 14001

1шт.
