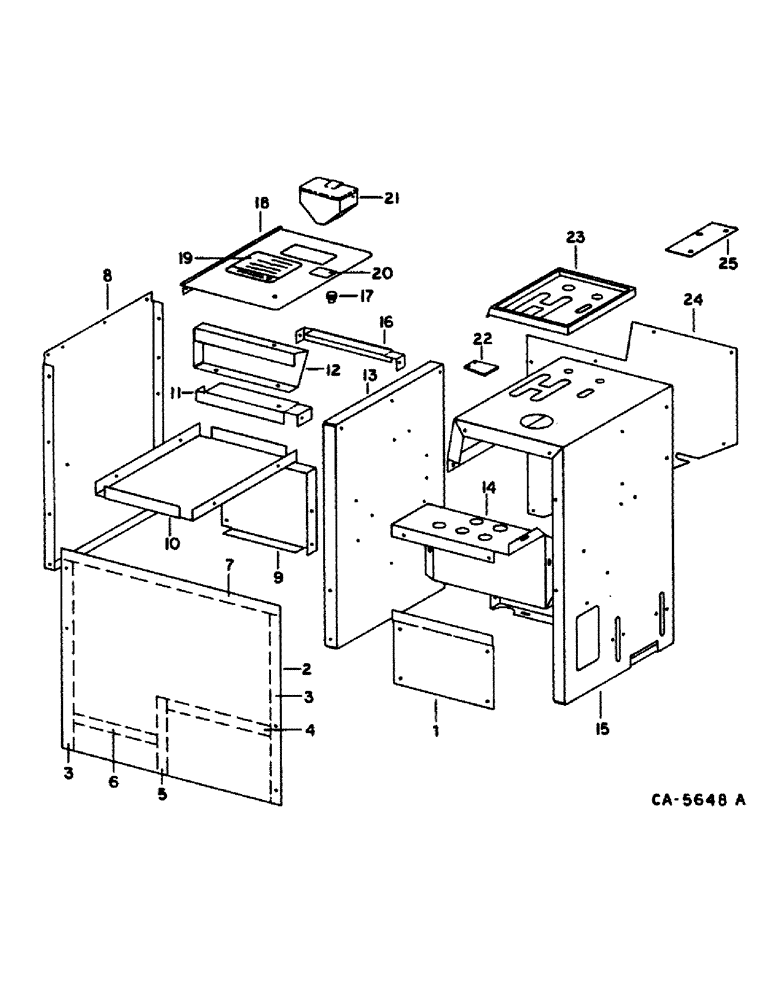

Запчасти Case IH 1480 (13-04) - SUPERSTRUCTURE, LEFT CONSOLE (05) - SUPERSTRUCTURE

1

193062C1

SUPPORT

left console lower outer, Serial Range: -24000

1шт.

1

1301517C1

SUPPORT

left console lower outer, Start Serial: 24001

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

2

193061C3

PLATE

left console outer cover

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 h/whd tap

1шт.

3

STRIP, console cover, use 18.3 in. from bulk stock marked 195917C2

2шт.

4

STRIP, console cover, use 11.8 in. from bulk stock marked 195917C2

1шт.

5

STRIP, console cover, use 7.0 in. from bulk stock marked 195917C2

1шт.

6

STRIP, console cover, use 9.0 in. from bulk stock marked 195917C2

1шт.

7

STRIP, console cover, use 23.0 in. from bulk stock marked 195917C2

1шт.

8

193009C3

SUPPORT

LH console front

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

51/6 x 3/4 znp slt-truss-hd

1шт.

9

196595C1

SUPPORT

manual box lower inner, Serial Range: -24000

1шт.

10

193010C2

SUPPORT

manual box

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

11

193011C1

SUPPORT

manual box cover left

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

12

193013C1

SUPPORT

operator cab LH side

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

13

193008C4

SUPPORT

manual box rear

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

14

195533C4

SUPPORT

left console lower

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

15

193065C7

SUPPORT

operator control rear left

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

16

193012C1

SUPPORT

manual box cover right

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

17

198981C1

KNOB

manual box door

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

18

186187C92

DOOR

ASSY, LH manual box, includes ref. nos. 19 and 20

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

19

2753929R5

DECAL

PRODUCT GRAPHIC, safety and operating instr.

1шт.

20

61907C1

DECAL

PRODUCT GRAPHIC, operating caution

1шт.

21

111396C1

ASH TRAY

TRAY, ash

1шт.

22

195239C2

BAR

H pattern filler

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

23

198805C1

COVER

left console

1шт.

27204R1

SELF-TAP SCREW

no. 8-18 x 3/4 pln o/hdcr tap

1шт.

24

193056C1

PLATE

left console inner

1шт.

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-126 x 1/2 p/hdcr tap

1шт.

25

1301357C2

BAR

LH console switch support, Serial Range: -24001

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
