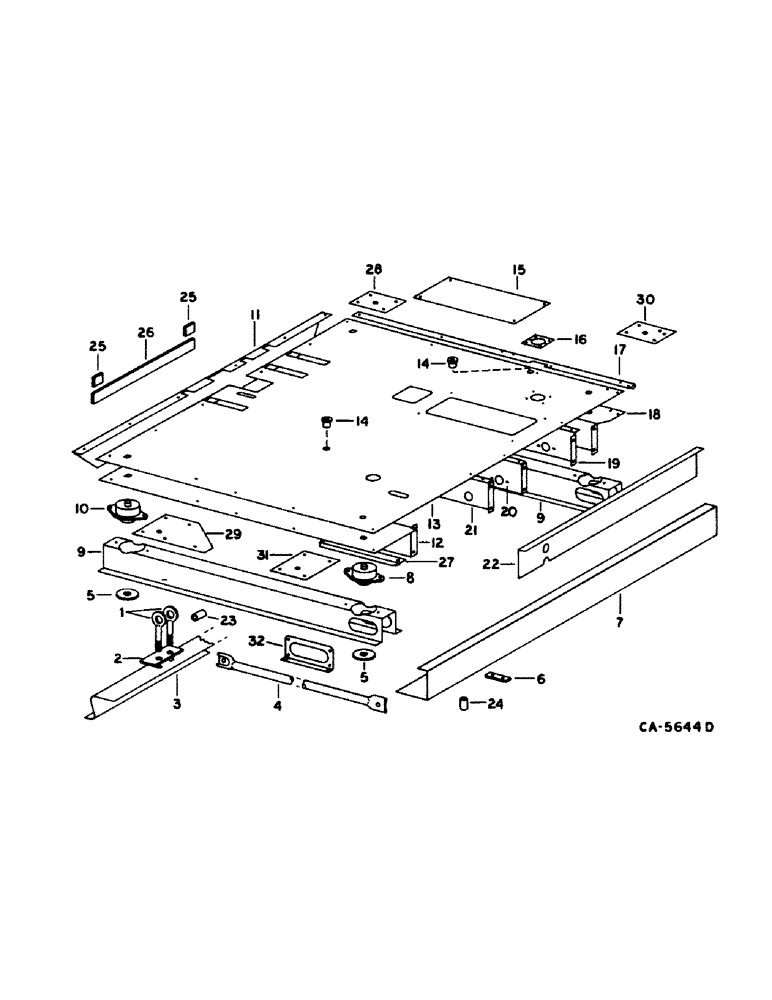

Запчасти Case IH 1480 (13-01) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE

1

165648C2

BOLT,3/4" - 10 x 4 1/2"

platform front leveling eye

4шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

2

196592C2

BAR

platform front leveling

2шт.

3

195522C4

SUPPORT

operators platform front

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

4

18764C2

ROD, operator platform extension

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

5

196591C1

WASHER

isolation mount

4шт.

6

193428C1

BAR

rear mounting channel, .625

2шт.

7

193427C2

SUPPORT

operators platform rear

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR, rear vibration

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

NLS

NO LONGER SERVICED

BOLT, 3/4 x 4-1/2 type 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

9

195507C6

SUPPORT

operator platform side

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

10

117722C4

INSULATOR

front vibration

2шт.

10

117722C4GV

INSULATOR

front vibration

2шт.

1317014C1

CARRIAGE BOLT,Short Sq Nk, 3/4" - 10 x 5", Type 5

BOLT, 3/4 x 5 crg type 5

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

478258R1

WASHER

1.156 x 1.750 x .105

1шт.

22266R1

WASHER

1.156 x 1.750 x .027

1шт.

11

195517C4

SUPPORT

operators platform front

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 51/6 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

187716C1

SUPPORT ASSY.

SUPPORT ASSY, operators platform LH, Serial Range: -1500

1шт.

12

195520C3

SUPPORT

operators platform LH, Start Serial: 1501

1шт.

13

195558C8

PLATE

operators

1шт.

14

195800C1

GROMMET

plug, condensate drain holes

2шт.

15

193029C2

PLATE

brake access rear

1шт.

172427

SHIELD

1/4 x 1/2 h/hd tap

1шт.

16

187533C1

BAR

platform wiring hole

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

17

196969C4

SUPPORT

platform stiffener right side

1шт.

18

187717C1

SUPPORT ASSY.

SUPPORT ASSY, operator platform RH, Serial Range: -1500

1шт.

18

195518C6

SUPPORT

operators platform RH, Start Serial: 1501

1шт.

19

195519D4

SUPPORT, operators platform right center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

20

195521C3

SUPPORT

operators platform center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

21

195557C7

SUPPORT

operator platform left center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

22

195516C2

SUPPORT

operators platform rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

23

591070R1

SPACER,3/4" Pipe x 1 7/16"

front leveling eyebolt

2шт.

280954

NUT,3/4"-10, G5

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

3/4 x 4-1/4 type 5

1шт.

24

HA4457

SPACER

.622 x .840 x .562 pipe

2шт.

25

187885C1

SEALING STRIP

STRIP, cab sill to front support seal, use 2 in., 50.8mm

2шт.

26

187885C1

SEALING STRIP

STRIP, cab sill to front support seal, 26.1 in., 662.9mm

1шт.

27

183680C1

ANGLE

platform stiffener LH

1шт.

28

183668C2

PLATE

platform right front

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

183669C2

PLATE

platform left front

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

183678C1

PLATE

platform right rear

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

31

183679C1

PLATE

platform left rear

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

32

1301442C1

SUPPORT

platform side reinforcement

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.
