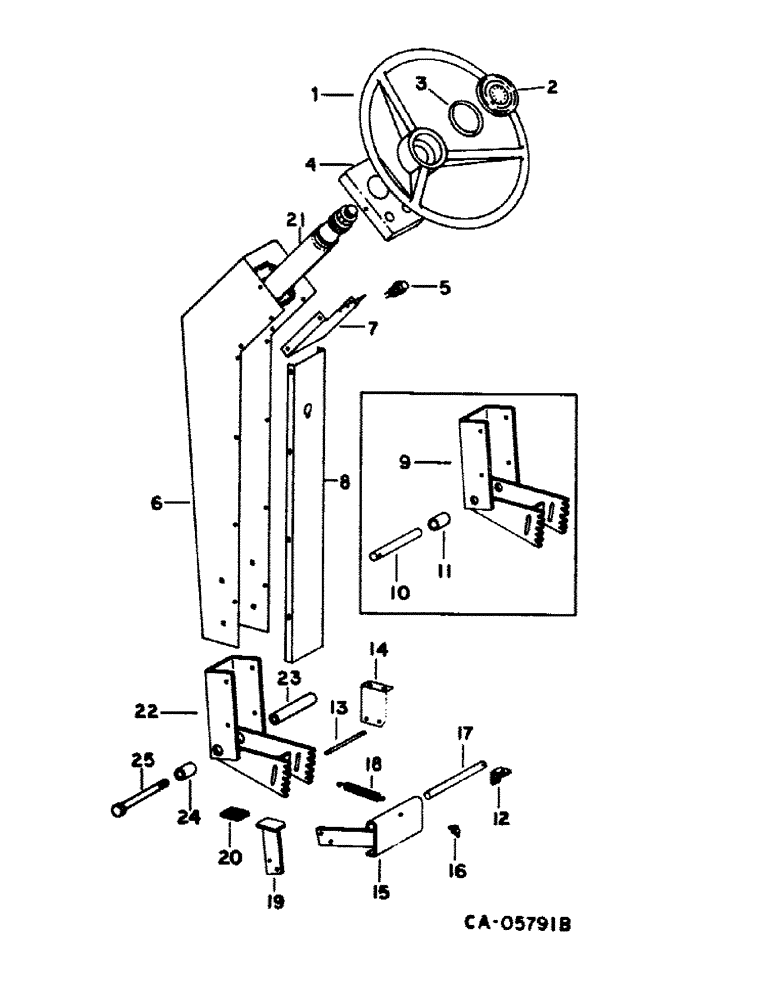

Запчасти Case IH 1480 (05-02) - STEERING, STEERING WHEEL, SERIAL NO. 24001 AND ABOVE (04) - STEERING

1

385156R1

WHEEL (STEERING)

WHEEL, steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

68837C2

CAP

ASSY, steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32

1шт.

4

1301362C1

SUPPORT

steering pump, for use with Ross steering hand pump

1шт.

.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 hex/hd flg lock

1шт.

4

1276302C1

SUPPORT

steering pump, for use with Danfoss steering hand pump

1шт.

.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

5

INDICATOR LIGHT, refer to group 8 under wiring diagram, left turn, grain tank, unloader, rear lights & fuel pump

1шт.

6

215723C3

POST

ASSY, steering

1шт.

.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4 crg type 5

1шт.

.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

7

210163C1

COVER ASSY

steering column upper

1шт.

.

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 PHC p/hdcr tap

1шт.

8

215964C2

CHANNEL

steering post cover

1шт.

.

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 PHC p/hdcr tap

1шт.

9

210087C1

SECTOR

ASSY, steering post pivot, with 5/8 inch pivot hole

1шт.

10

193233C1

PIN

steering column pivot shaft, use w/sector 210087C1

1шт.

.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

11

460416R1

SPACER

steering column pivot shaft, use w/sector 210087C1

1шт.

12

193244C1

ANGLE

steering column pivot

1шт.

13

215665C1

PIN

steering pivot stop

1шт.

.

648002

KNIFE

1/8" x 3/4"

1шт.

14

193263C1

SUPPORT

steering pivot stop pin

1шт.

15

193235C2

PIVOT ASSY.

PIVOT ASSY, steering release

1шт.

16

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive, Used with 193235C1 only

1шт.

17

193246C1

PIN

steering release

1шт.

.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

18

183608C1

SPRING

steering release pedal return

1шт.

.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

19

193238C1

PEDAL ASSY.

PEDAL ASSY, steering release

1шт.

.

68530C1

BOLT,Hex Serr, 1/4" - 20 x 3/4"

1/4 x 3/4 hex-hd flange

1шт.

.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

20

357444C1

PEDAL

PAD, foot pedal

1шт.

21

1282041C91

SHAFT ASSY.

SHAFT ASSY, steering hand pump, for use with Danfoss steering hand pump only

1шт.

.

NUT, 18 x 15mm, steering wheel

1шт.

.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

.

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

M18 x 1.5-M-17H-2-PHR

1шт.

22

1321449C1

SECTOR

ASSY, steering post pivot, with 3/4 inch pivot hole

1шт.

23

1321442C1

TUBE,13.51 mm ID, 19.05 mm OD

steering post pivot, use w/sector 1321449C1

1шт.

24

1321441C1

SPACER

steering column pivot bolt, use w/sector 1321449C1

1шт.

25

25690R1

BOLT,Hex, 1/2" - 13 x 8", Gr 8

1/2 x 8 PHC type 8, use w/sector 1321449C1

1шт.

.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 PHC HDN

1шт.

SB 13-87 for 934727R1 Stering Wheel Retaining Nut.

1шт.
