(15-21[1]) - POWER GUIDE WHEELS SERIAL NO. 54299 AND ABOVE DRIVE SWITCH AND MOUNTING

Запчасти Case IH 1480 (15-21[1]) - POWER GUIDE WHEELS SERIAL NO. 54299 AND ABOVE DRIVE SWITCH AND MOUNTING Wheels & Traction

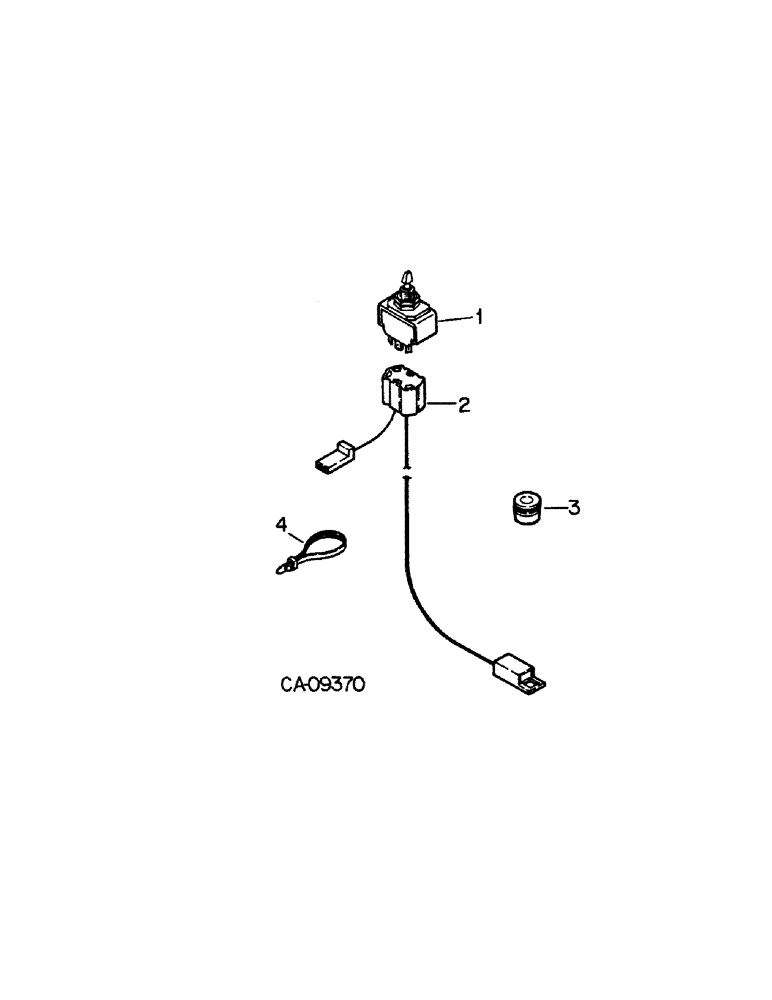

Схема запчастей Case IH 1480 - (15-21[1]) - POWER GUIDE WHEELS SERIAL NO. 54299 AND ABOVE DRIVE SWITCH AND MOUNTING Wheels & Traction
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1301521C1

SWITCH

ASSY, power guide drive

1шт.

2

1301523C1

HARNESS

ASSY, power guide drive

1шт.

3

198822C1

GROMMET,6.35mm ID x 41.1mm OD x 26.9mm Thk

1/4 ID

1шт.

4

702093C1

CABLE TIE

STRAP, tie

12шт.
