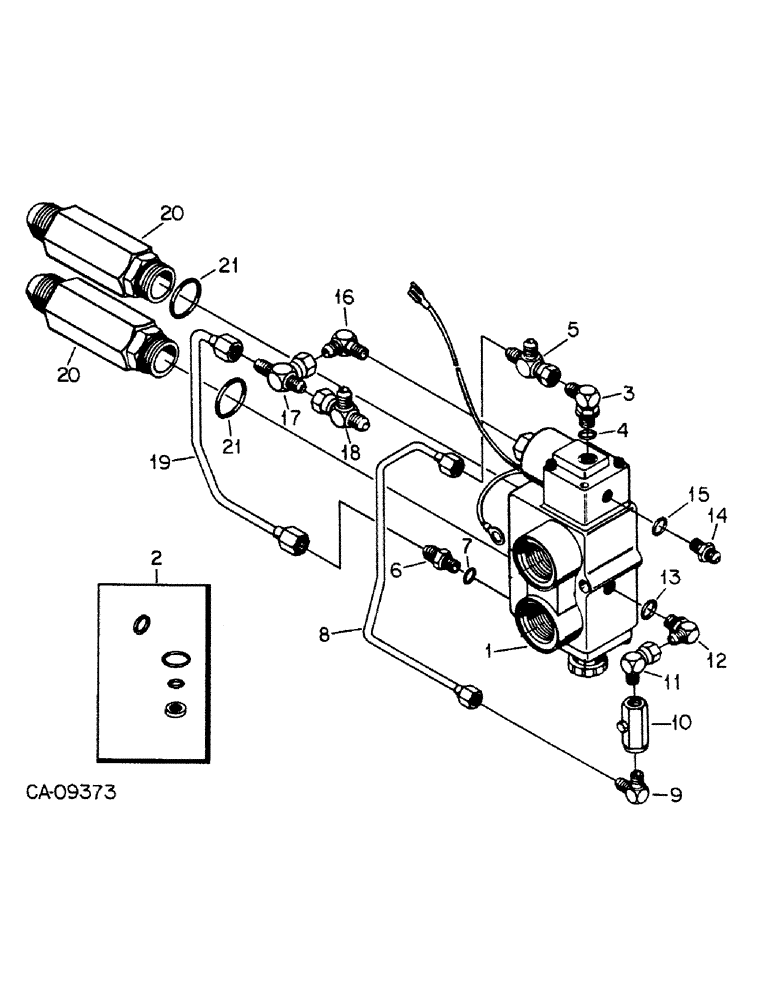

Запчасти Case IH 1480 (15-20) - WHEEL AND TRACTION, POWER GUIDE WHEELS, SERIAL NO. 54299 AND ABOVE, DRIVE SELECTOR VALVE Wheels & Traction

1315489C91

VALVE

ASSY, power guide drive selector, consists of ref no. 1 thru 21

1шт.

1

1324482C91

VALVE

selector

1шт.

2

1324483C1

SEAL KIT

ASSY, seal, consists of o-ring (NSS), (2) o-ring (NSS), seal, shaft (NSS), quad ring (NSS), (2) o-ring (NSS)

1шт.

3

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4 C-Z hyd fld adj 90D

1шт.

4

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

5

9410330

TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Run

1/4 C-Z hyd fld tube swivel

1шт.

6

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR, C-Z hyd fld 3/8 to 1/4 sht

1шт.

7

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

8

1324484C1

TUBE

charge pressure

1шт.

9

9402862

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1/4 C-Z hyd flared tube 90D

1шт.

10

1324485C1

VALVE

check

1шт.

11

1324486C1

ELBOW

90 deg

1шт.

12

1324487C1

ELBOW

90 deg

1шт.

13

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

14

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 1/4 C-Z hyd fld short swivel

1шт.

15

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

16

585694R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

C-Z hyd fld 3/8 to 1/8 90D

1шт.

17

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

3/8 C-Z hyd fld tube swivel

1шт.

18

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

3/8 C-Z hyd fld tube swivel

1шт.

19

1324488C1

TUBE

case drain

1шт.

20

1310542C1

VALVE

flow limiter 28 GPM

2шт.

21

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

2шт.

1301425C1

SUPPORT

valve

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 znd type 5

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.
