Запчасти Case IH 1480 (15-16) - WHEEL AND TRACTION, POWER GUIDE WHEELS, SERIAL NO. 54299 AND ABOVE, DRIVE ASSEMBLY Wheels & Traction

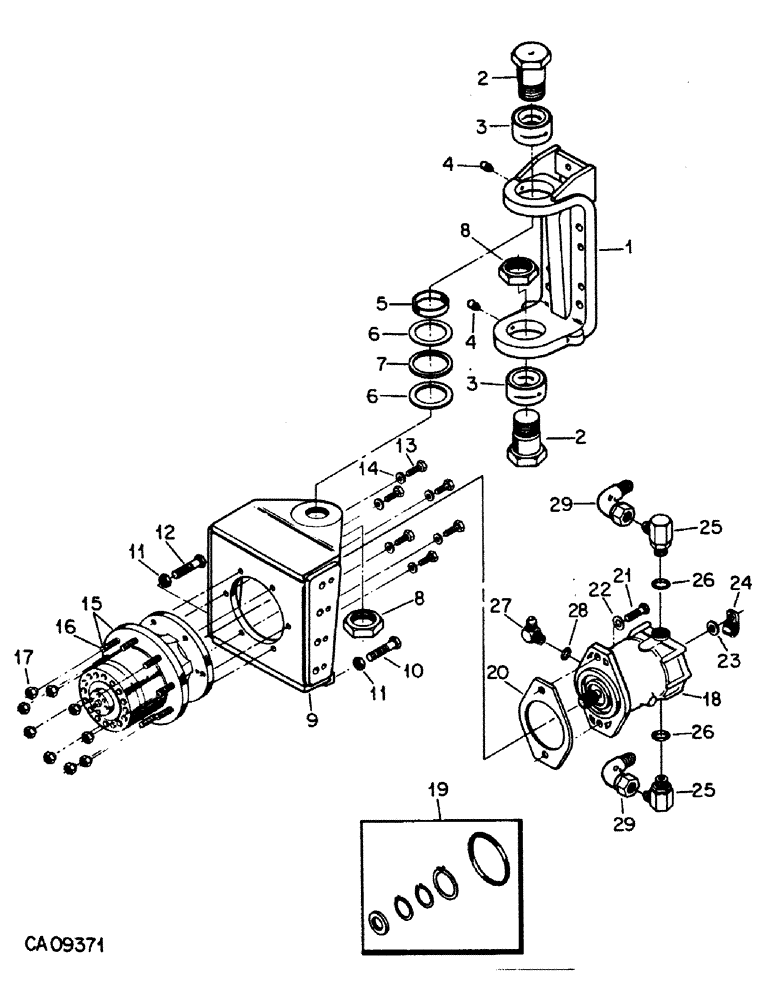

Схема запчастей Case IH 1480 - (15-16) - WHEEL AND TRACTION, POWER GUIDE WHEELS, SERIAL NO. 54299 AND ABOVE, DRIVE ASSEMBLY Wheels & Traction
28
17
25
4
3
5
29
24
20
25
2
7
11
13
15
12
2
9
4
14
22
18
27
26
29
10
23
26
3
8
19
6
6
16
21
11
1
8

Артикул

Название

Примечание

Количество

1

1314471C1

SUPPORT

ASSY, frame

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

8шт.

366866C1

LOCK WASHER,5/8"

5/8"

10шт.

24889R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

8шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

2

1324468C1

BOLT,1 5/8" - 12 x 2.74"

pivot pin

4шт.

3

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

BEARING, spherical radial

4шт.

4

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 lub

4шт.

5

1310560C1

THRUST WASHER

thrust washer spacer

2шт.

6

890477C1

WASHER

4шт.

7

1310562C1

THRUST WASHER

nylarron thrust

1шт.

8

9403299

LOCK NUT,Blkhd, 1 5/8"-12

NUT, 1-5/8 jam

4шт.

9

1314472C1

SUPPORT

ASSY, frame

2шт.

10

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

2шт.

11

25949R1

JAM NUT,Jam, 5/8"-11, G8

5/8 PHC jam type 8

4шт.

12

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

13

24873R1

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

12шт.

14

1324470C1

WASHER

machinery bushing

12шт.

15

1324465C91

HOUSING

CASE, w/studs, planetary gear

2шт.

1319387C1

SEAL KIT

seal, consists of (2) o-ring (NSS), retaining ring (NSS), roll pin (NSS), (2) seal (NSS), spindle seal (NSS)

1шт.

16

1310563C1

STUD,5/8" - 18 x 2.15"

wheel

18шт.

17

25676R1

NUT,5/8"-18, G8

5/8-NF PHC type 8

18шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC HDN

18шт.

18

1310556C91

MOTOR, ELECTRIC

MOTOR ASSY, fixed axial piston

2шт.

19

1272263C1

KIT

motor, consists of o-ring (NSS), retaining ring (NSS), retaining ring (NSS), shaft seal (NSS)

1шт.

20

1310555C1

GASKET

motor

2шт.

21

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

4шт.

22

55710R1

WASHER, .531 x 1.062 x .074

4шт.

23

27309R1

WASHER

.344 x .688 x .051

4шт.

24

28135R1

CLAMP

.938 dia znp coated med clo

2шт.

25

1324476C3

ELBOW

high pressure swivel (Replaces 1324476C2)

4шт.

26

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

4шт.

27

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D

2шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

29

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

2шт.

SB 085-87 Power Guide Axle High Pressure Swivel Elbows.

1шт.
