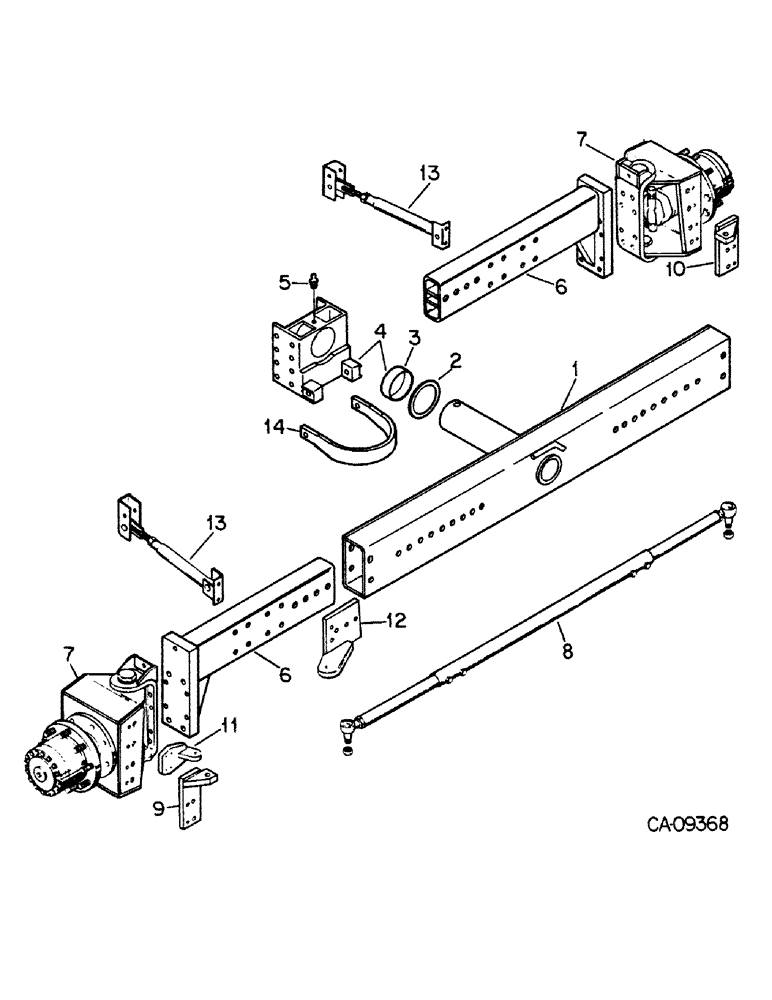

Запчасти Case IH 1480 (15-14) - WHEEL AND TRACTION, POWER GUIDE WHEELS, SERIAL NO. 54299 AND ABOVE, AXLE AND CONNECTIONS Wheels & Traction
№
Артикул
Название
Примечание
Количество
1
1302522C2
STEERING AXLE
AXLE ASSY, center steering
1шт.
NLS
NO LONGER SERVICED
BOLT, 3/4 x 4-1/2 znd type 5
3шт.
271783
CAGE,Hex, 3/4" - 10 x 5", Gr 5
3/4 x 5 znd type 5
4шт.
26523R1
BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 8
3/4 x 5-1/4 PHC type 8
3шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 PHC flange lock type 8
10шт.
2
168385C2
WASHER,102.6mm ID x 127mm OD x 3.3mm Thk
steering axle pivot
4шт.
3
177751C1
BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L
pivot support
2шт.
4
186599C92
SUPPORT ASSY.
SUPPORT ASSY, axle pivot
1шт.
25360R1
BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8
3/4 x 5-1/2 PHC type 8
2шт.
25712R1
WASHER
.812 x 1.500 x .179 HDN
8шт.
177744C1
FLANGE NUT,Flg, USR, 3/4"-10
3/4 PHC flange lock type 8
8шт.
5
80722
LUBE NIPPLE,3/16" x .55" lg, Drive
FITTING, 3/16 hole lub
2шт.
6
1324475C1
EXTENSION
SUPPORT ASSY, axle extension
2шт.
7
DRIVE ASSY, power guide wheel, refer to power guide wheel drive
2шт.
8
ROD ASSY, tie, refer to tie rod assembly
1шт.
9
1324461C1
SUPPORT
tie rod bracket LH
1шт.
24893R1
BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8
2шт.
9413983
NUT
3/4 PHC P/T lock type 8
2шт.
24867R1
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8
1/2 x 3-1/2 PHC type 8
2шт.
9412230
LOCK NUT
1/2 PHC P/T lock type 8
2шт.
10
1324463C1
SUPPORT
tie rod bracket RH
1шт.
24893R1
BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8
2шт.
9413983
NUT
3/4 PHC P/T lock type 8
2шт.
24867R1
BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8
1/2 x 3-1/2 PHC type 8
2шт.
9412230
LOCK NUT
1/2 PHC P/T lock type 8
2шт.
11
1324462C1
SUPPORT
steering bracket
1шт.
12
1324464C1
SUPPORT
steering bracket
1шт.
13
ROD, axle sta, refer to axle sta rod
1шт.
14
1302625C1
CHANNEL
tow-strap
1шт.
24879R1
BOLT,Hex, 5/8" - 11 x 3", Gr 8
2шт.
195313C1
FLANGE NUT,Flg, USR, 5/8"-12
5/8 PHC flange lock type 8
2шт.
Выбрано товаров: 32
