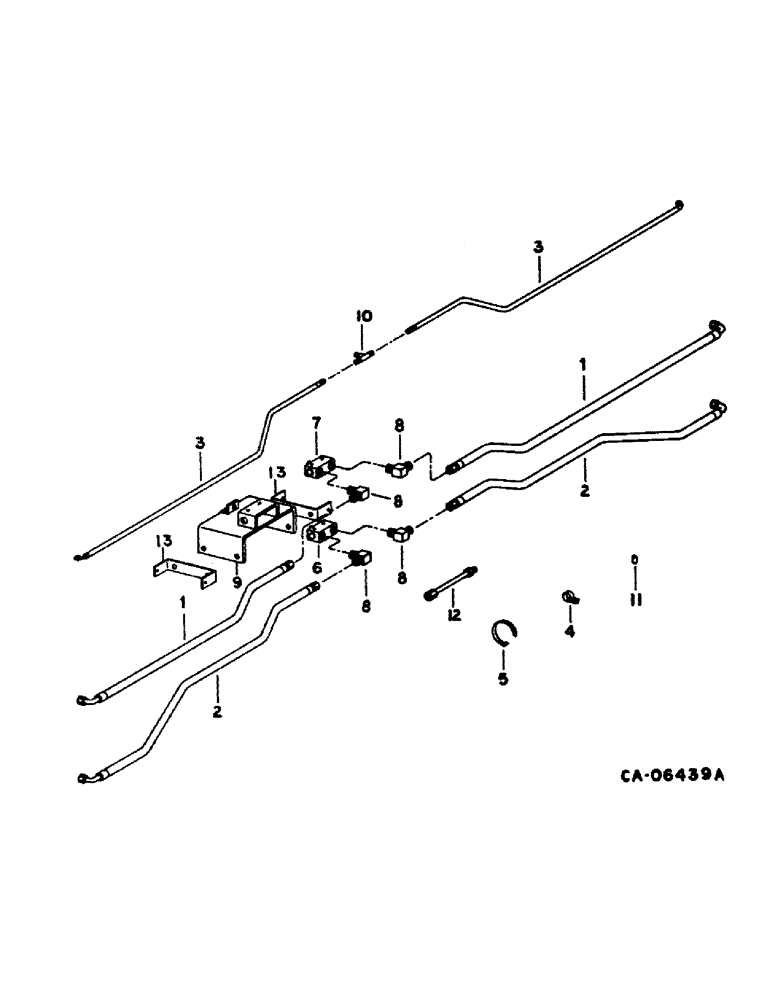

Запчасти Case IH 1480 (15-09) - WHEEL AND TRACTION, POWER GUIDE WHEELS, SERIAL NO. 54298 AND BELOW, HYD HOSES & POSITRACTION VALVE Wheels & Traction

1

1301614C1

HOSE

ASSY, wheel motor, 45 in., 1143.0mm

2шт.

2

1301615C1

HOSE ASSY.

HOSE ASSY, wheel motor, 58 in., 1473.2mm

2шт.

3

1301496C1

HOSE ASSY.

HOSE ASSY, wheel motor drain, 72 in., 1828.8mm

2шт.

4

299566C1

CLAMP

.688 dia. znp coated

1шт.

4

28149R1

CLAMP,1 1/4", Insul, 1/2" Bolt

1.25 dia. znp coated

1шт.

20617R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 type 8

1шт.

25235R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

5/16 x 2-1/2 PHC type 8

1шт.

9413977

NUT

5/16 PHC P/T lock type 8

1шт.

27309R1

WASHER

.344 x .688 x .051 pln

1шт.

5

533939R1

STRAP

hyd hose tie

4шт.

6

1310543C1

LOCK VALVE

VALVE ASSY, forward positraction

1шт.

7

1310544C1

LOCK VALVE

VALVE ASSY, reverse

1шт.

25958R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

3/8 x 3 type 8

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

8

1310580C1

ELBOW UNION

ELBOW, 1-1/16-12 90 deg hyd

4шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

9

1310546C1

SUPPORT ASSY.

SUPPORT, positraction valve

1шт.

10

1310575C1

TEE

hyd bulkhead

1шт.

11

27633R1

SPACER,3/8" X-Strng Pipe x 1 1/4"

3/8 x 1.250 pipe

2шт.

12

1301911C1

HYD TUBE

TUBE, drive pressure, for use w/120 in. axle

4шт.

13

(Not used in this application)

1шт.
