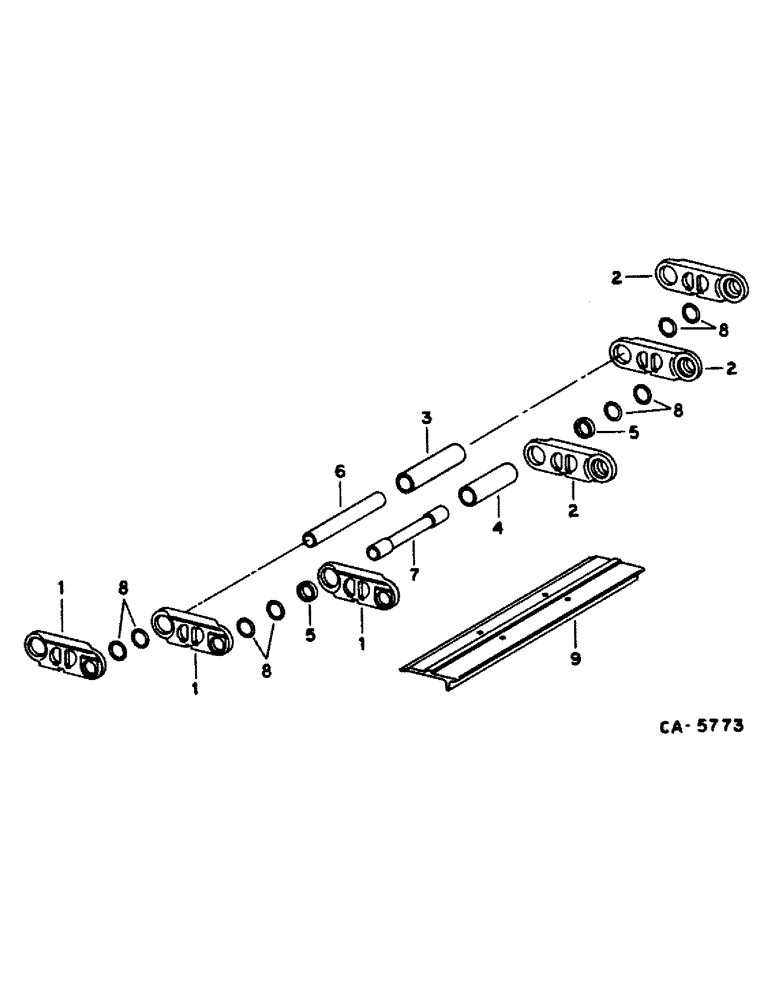

Запчасти Case IH 1480 (15-06) - WHEEL AND TRACTION, TRACK CHAIN Wheels & Traction

186835C91

CHAIN (CE)

CHAIN ASSY, 41 links w/o shoes, includes ref nos. 1 thru 8

2шт.

1

622150C1

CHAIN (AG)

LINK, track LH

82шт.

2

622151C1

LINK

track RH

82шт.

3

621296C1

BUSHING

link

80шт.

4

621297C1

BUSHING

master link

2шт.

5

616180C1

SPACER

master link

4шт.

6

263943R1

PIN

chain link

80шт.

7

616181C1

PIN

master link

2шт.

8

616178C1

SPRING WASHER

spring steel

320шт.

9

196085C1

SHOE

track, 20 in., 508.0mm

82шт.

80295R1

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8

1/2-NF x 1-1/2 PHC type 8

1шт.

616192C1

NUT

track bolt

1шт.
