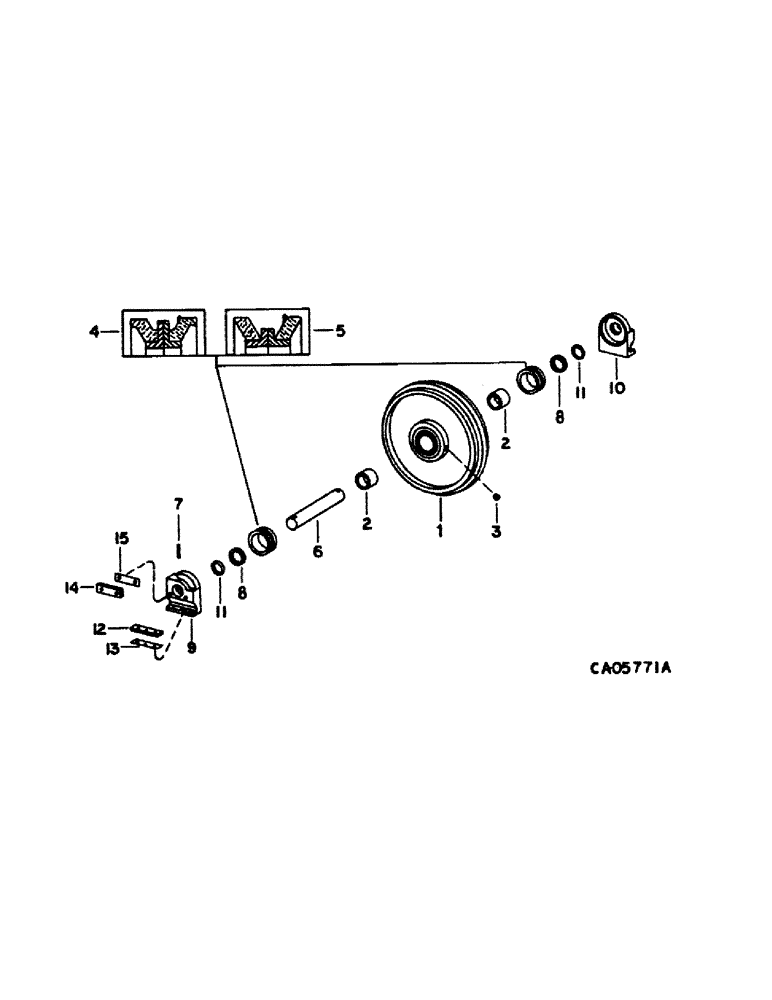

Запчасти Case IH 1480 (15-05) - WHEEL AND TRACTION, TRACK, IDLER Wheels & Traction

621414C93

FRONT IDLER

ROLLER ASSY, idler, includes ref nos. 1 thru 11

4шт.

1

621415C92

ROLLER

w/bushing, idler, includes ref. no. 2

4шт.

2

621417C4

BEARING

BUSHING, idler roller

8шт.

3

444783

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, idler roller

4шт.

4

740915C91

OIL SEAL

SEAL KIT, track idler, replaces 662591C91

8шт.

5

740915C91

OIL SEAL

SEAL KIT, track idler, replaces 655973C91

8шт.

6

621418C1

SHAFT

idler roller

4шт.

7

19424R1

PIN,3/8" x 1 1/2", Coiled

8шт.

8

621419C1

THRUST WASHER

idler roller thrust

8шт.

9

621420C1

HOUSING

SUPPORT, idler roller LH

4шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 type 8

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

1шт.

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

10

621421C1

HOUSING

SUPPORT, idler roller RH

4шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 type 8

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

1шт.

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

11

655266C1

O-RING,1.734" ID x 0.144" Width

idler roller support

8шт.

12

622044C1,

BAR, rear idler wear

4шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 type 8

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 rib lock

1шт.

13

621423C1

SHIM

rear idler support bottom

1шт.

14

621424C1

PLATE

rear idler side thrust

4шт.

15

621427C1

SHIM

rear idler support side

1шт.
