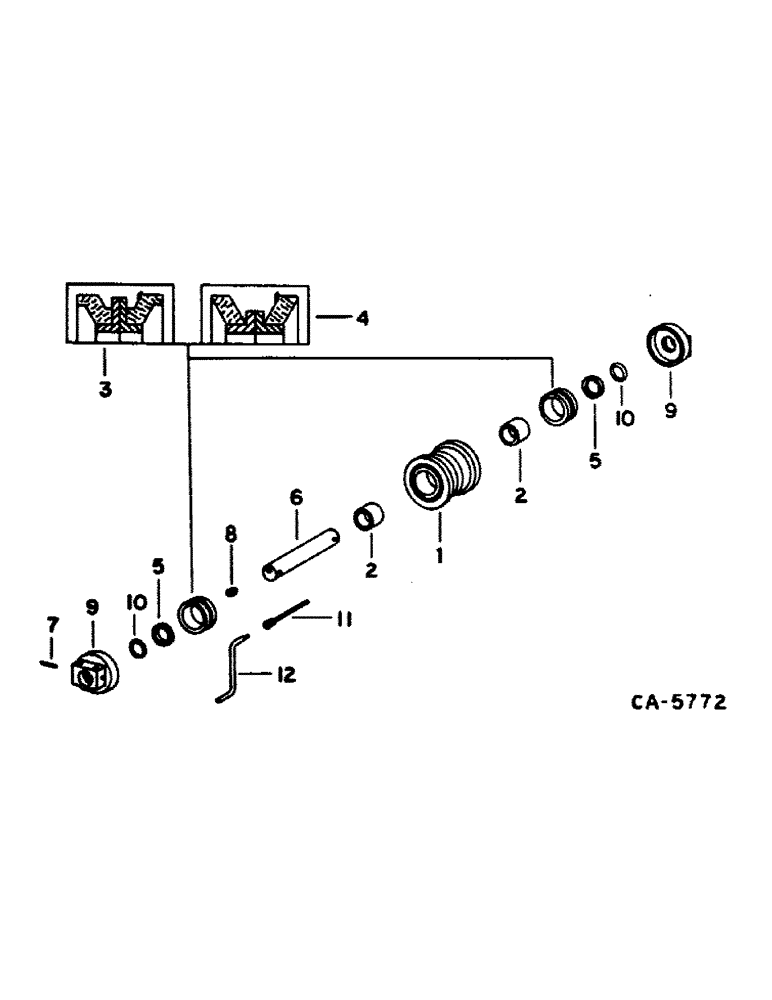

Запчасти Case IH 1480 (15-04) - WHEEL AND TRACTION, TRACK ROLLER Wheels & Traction

621462C94

ROLLER

ASSY, track, includes ref nos. 1 thru 10

12шт.

1

621455C94

ROLLER

w/bushing, track, includes ref. no. 2

12шт.

2

621458C3

BUSHING

track roller

24шт.

3

740915C91

OIL SEAL

SEAL KIT, track roller oil, replaces 662591C91

24шт.

4

740915C91

OIL SEAL

SEAL KIT, track roller oil, replaces 655973C91

24шт.

5

621419C1

THRUST WASHER

track roller thrust

24шт.

6

621459C1

SHAFT

track roller

12шт.

7

19424R1

PIN,3/8" x 1 1/2", Coiled

24шт.

8

444783

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, roller shaft

12шт.

9

621463C2

BRACKET

roller shaft support

24шт.

236486R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

1шт.

123174

LOCK WASHER,1/2"

1/2"

1шт.

10

655266C1

O-RING,1.734" ID x 0.144" Width

shaft support bracket

24шт.

11

1330259C1

TUBE,6.78" Length

ASSY, track lubricator, replaces 304909R91 by also ordering fitting 1330260C1

1шт.

1330260C1

FITTING

button head

1шт.

12

304910R2

SPECIAL WRENCH

WRENCH, socket plug

1шт.
