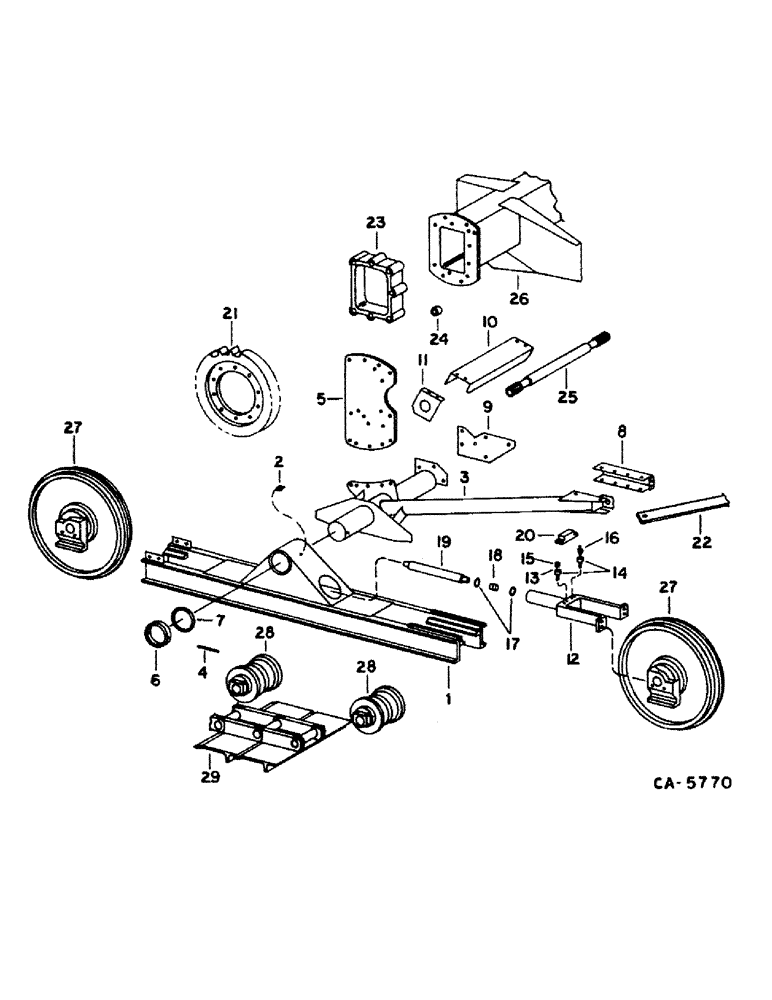

Запчасти Case IH 1480 (15-02) - WHEEL AND TRACTION, TRACK Wheels & Traction

1

186836C1

FRAME

ASSY, track

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

3

188487C1

FRAME

PIVOT ASSY, track frame LH

1шт.

3

188488C1

FRAME

PIVOT ASSY, track frame RH

1шт.

21610R1

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

3/4 x 2-1/2 type 8

1шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

1шт.

24771R1

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 type 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC HDN

1шт.

186851C1

FLANGE NUT

5/8 flange lock type 8

1шт.

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

1/2 flange lock type 8

1шт.

4

23854R1

LOCK PIN,1/2" x 5", Slotted

Pin, 1/2" x 5", Slotted

2шт.

5

186832C1

PLATE

outer pivot support

2шт.

23853R1

BOLT,Hex, 3/4" - 10 x 3", Gr 8

1шт.

22854R1

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

3/4 x 2-3/4 type 8

1шт.

25538R1

WASHER

.812 x 1.500 x .134 PHC HDN

1шт.

6

167791C1

SPACER

COLLAR, pivot axle retainer

2шт.

7

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

track pivot shaft

4шт.

8

188496C1

SUPPORT

Pivot Rear Anchor, LH, For factory installed track

1шт.

8

188498C1

BRACKET

SUPPORT, pivot rear anchor LH, for field installed track

1шт.

8

188497C1

SUPPORT

Pivot Rear Anchor RH, For factory installed track

1шт.

8

188499C1

BRACKET

SUPPORT, pivot rear anchor RH, for field installed track

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

24872R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC HDN

1шт.

186851C1

FLANGE NUT

5/8 flange lock type 8

1шт.

9

186006C1

SUPPORT

inner pivot, for hi-clear

2шт.

9

1302371C1

PLATE

SUPPORT, inner pivot LH

1шт.

9

1302372C1

PLATE

SUPPORT, inner pivot RH, for lo-clear

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

5/8 x 1-3/4 type 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC HDN

1шт.

186851C1

FLANGE NUT

5/8 flange lock type 8

1шт.

10

186015C1

GUARD

SHIELD, drive axle shaft

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

11

186016C1

SUPPORT

outer shaft shield LH

1шт.

11

186017C1

SUPPORT

outer shaft shield RH

1шт.

26308R1

BOLT

5/16 x 1-1/4 PHC P/T type 5

1шт.

12

621428C1

CLEVIS

FORK, rear idler roller adjustment

2шт.

24863R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

VALVE, w/plug, track adj bleeder, for service furnish reference numbers 14 and 15 (as required)

2шт.

14

D35287

CHECK VALVE,5/8" - 18

ASSY, bleeder, replaces 319628R91

4шт.

15

50410DA

PLUG

bleeder valve

2шт.

16

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/8 90 deg str lub

2шт.

17

622826C91

SEAL

AND SCRAPER, adjuster service kit

2шт.

18

622046C1

PISTON

track adjuster hyd

2шт.

19

196030C1

ROD

track adjuster control

2шт.

20

621430C1

GUARD

SHIELD, track adjuster check

2шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

21

162343C1

DRIVE SPROCKET

SPROCKET, track drive, 23 T

1шт.

25632R1

NUT,3/4"-16, G8

3/4-NF PHC type 8

1шт.

22

BAR, separator frame diagonal, refer to group 20 under separator sides

2шт.

23

(Not used in this application)

1шт.

24

619769R1

SPACER,1" X-Strng Pipe x 3/4"

drive axle track, required for lo clear position only

2шт.

25

SHAFT, axle drive, refer to group 7 under transmission differential shaft and gears

1шт.

26

AXLE ASSY, main, refer to group 7 under main axle

1шт.

27

ROLLER ASSY, idler, refer to this group under track idler

1шт.

28

ROLLER ASSY, track, refer to this group under track roller

1шт.

29

TRACK, chain, refer to this group under track chain

1шт.

For lubricating nozzle and adapter see SB 042 87.

1шт.
