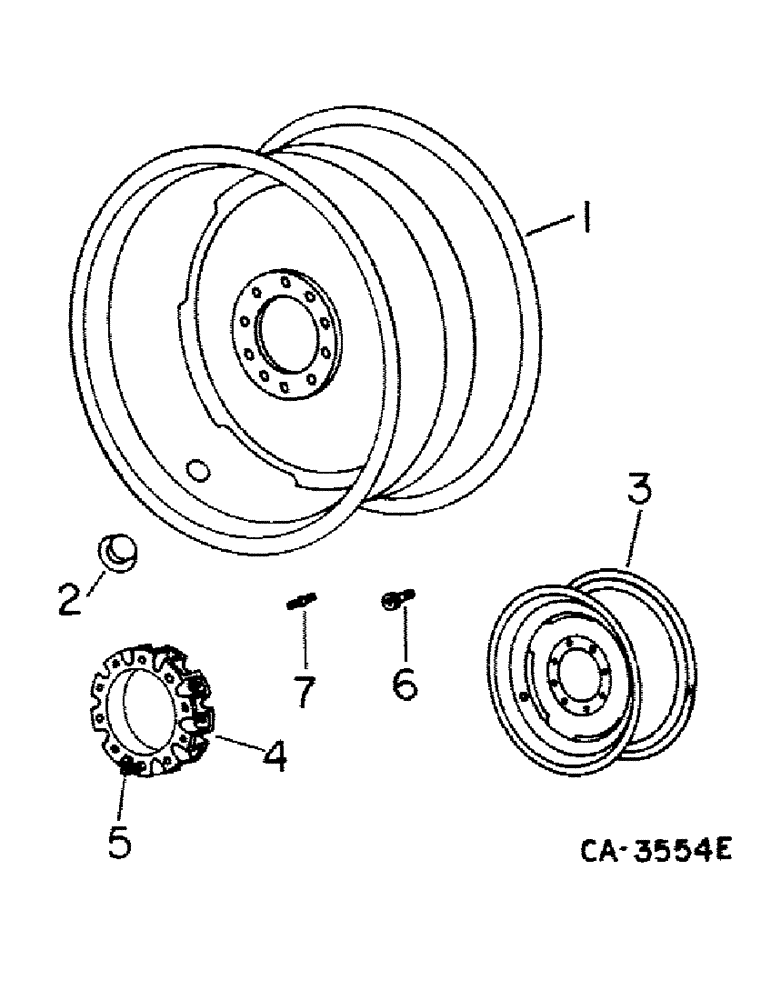

Запчасти Case IH 1480 (15-01) - WHEEL AND TRACTION, MAIN AND STEERING WHEEL RIMS AND DISC Wheels & Traction

1

193667C1

WHEEL

ASSY, 32 x DW 27 drive, for use 30.5 L-32 tire

2шт.

1

193666C1

WHEEL

ASSY, 32 x DW 21 drive, for use w/24.5-32 tires

2шт.

1

194268C2

RIM

WHEEL ASSY, 30 x DW 30 drive, for use w/67 & 34-30 flo-grip tires

2шт.

2

383697R1

PLUG

valve hole, for tube type tires

2шт.

2

417194C1

PLUG

valve hole, for tubeless tires

2шт.

3

672128R91

WHEEL

RIM AND DISC ASSY, 16 x WH 10C steering, for use w/12.4-16 & 11.00-16 tires

2шт.

3

186642C2

WHEEL

RIM AND DISC ASSY, 16.1 x 16lb steering

2шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC HDN, for use with 18.4 x 16.1 tires, minimum tread setting 104 in.

1шт.

3

376196R91

WHEEL

RIM AND DISC ASSY, w/12 x 24 steering, for use w/14.9-24 tires

2шт.

3

188928C1

WHEEL

ASSY, w/12 x 24 steering

2шт.

25676R1

NUT,5/8"-18, G8

5/8-NF PHC type 8

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC HDN, for use w/14.9-24 tires & power guide wheels

1шт.

4

178912C92

RETAINER

ASSY, drive wheel, 3 in. spacer, includes ref. no. 5

2шт.

4

188124C91

RETAINER

ASSY, drive wheel, 2 in. spacers, includes ref. no. 5

2шт.

5

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel spacer

20шт.

25632R1

NUT,3/4"-16, G8

3/4-NF PHC type 8

1шт.

6

179482C1

VALVE STEM

VALVE ASSY, tubeless tire

2шт.

6

536705R91

VALVE

ASSY, steering rim

2шт.

7

407184C1

VALVE STEM

CORE, tire

1шт.
