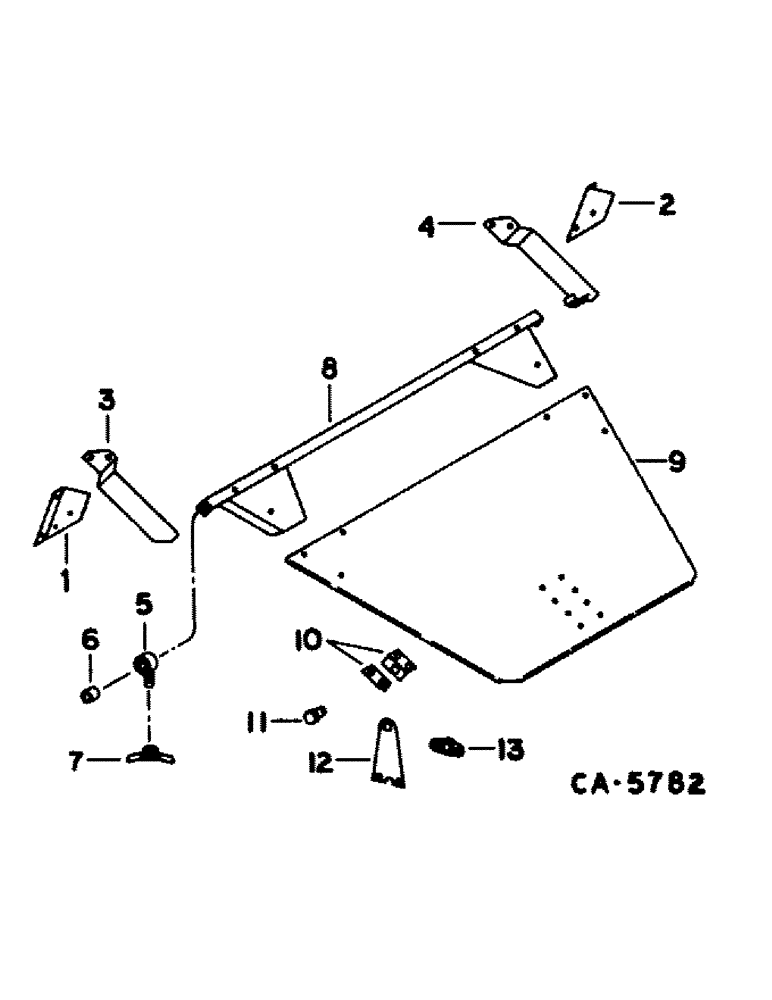

Запчасти Case IH 1480 (14-04) - SUSPENSION, STEERING AXLE SHIELD RICE, OSCILLATING, SERIAL NO. 24000 AND BELOW Suspension

1

1302046C1

SUPPORT

ASSY, hood extension LH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

2

1302047C1

SUPPORT

ASSY, hood extension RH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

3

1302778C3

ARM ASSY.

ARM ASSY, axle shield LH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

1302779C3

ARM ASSY.

ARM ASSY, axle shield RH

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

5

181342C91

END ASSY.

END ASSY, axle shield, includes ref. no. 6

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

6

564103R91

COMPOSITE RING

BUSHING, axle shield end

2шт.

7

177531C1

FLANGE NUT

HANDLE, guide axle shield

2шт.

8

185322C1

ANGLE

ASSY, steering axle shield

2шт.

9

182915C1

GUARD

SHIELD ASSY, steering axle

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

10

182920C2

ANGLE

shield pivot pin upper

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

11

28021R1

HEADED PIN,3/4" x 1 1/2"

PIN, hyd 3/4 x 1-1/2 znd type 5

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

495-11081

WASHER,3/4", SAE

.812 x 1.460 x .108

1шт.

12

181412C1

SUPPORT

BAR, axle shield pivot

1шт.

13

A63366

SPHERICAL BEARING,19mm ID

BEARING, pivot link, replaces 382508R91

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

1300098C92

SHIELD

PACKAGE, oscillating steering axle shield, consists of ref nos. 1 thru 13 and instruction manual

1шт.
