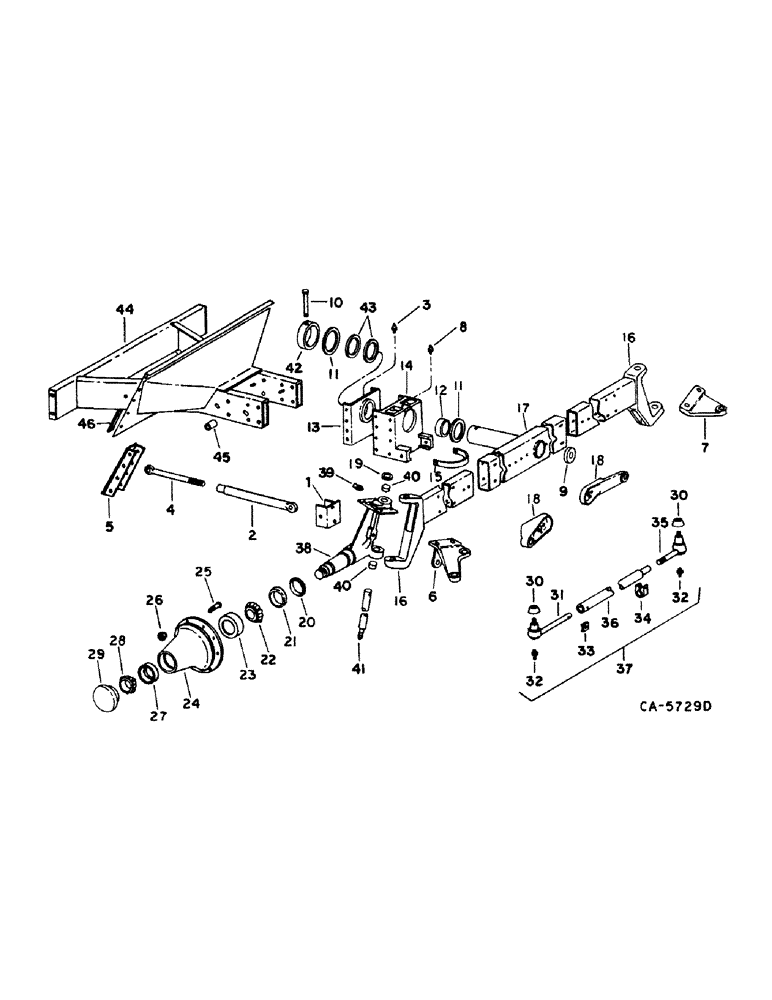

Запчасти Case IH 1480 (14-01) - SUSPENSION, STEERING AXLE, SUPPORT AND TIE ROD, ADJUSTABLE Suspension

1

183152C1

SUPPORT

ASSY, rod rear, for wide adjustable

2шт.

2

181444C1

TIE-ROD,1" - 8

ROD, axle rod rear eye, for wide adjustable

2шт.

23313R1

HEADED PIN,7/8" x 3 1/2"

PIN, HEADED, 7/8" x 3 1/2"

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

9849633

NUT,1"-8, G5

1шт.

3

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive lub

2шт.

4

181442C2

BOLT

axle front eye, for wide adjustable

2шт.

23729R1

HEADED PIN,22.23mm OD x 76.2mm L

PIN, 7/8 x 3 hd type 5

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

5

183151C1

SUPPORT

ASSY, rod front, for wide adjustable

2шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

6

186641C1

LEVER

steering LH

1шт.

25340R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

5/8 x 3-1/4 PHC type 8

1шт.

24883R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

5/8 x 5 PHC type 8

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

7

186639C1

LEVER

steering RH

1шт.

25340R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

5/8 x 3-1/4 PHC type 8

1шт.

24883R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

5/8 x 5 PHC type 8

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

8

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str lub

2шт.

9

167955C2

SEAL

PAD, steering hose

2шт.

10

177762C1

PIN

pivot tube, Serial Range: -1500

1шт.

10

28147R1

HEADED PIN,3/4" x 5 1/2"

PIN, 3/4 x 5.5 hd type 1, Start Serial: 1501

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

11

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

pivot tube

1шт.

12

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

pivot

2шт.

13

177781C92

SUPPORT ASSY.

SUPPORT ASSY, front pivot, includes ref. no. 43, Serial Range: -1500

1шт.

13

182792C92

SUPPORT ASSY.

SUPPORT ASSY, front pivot, includes ref. no. 43, Start Serial: 1501

1шт.

24896R1

BOLT,Hex, 3/4" - 10 x 5", Gr 8

1шт.

25712R1

WASHER

.812 x 1.500 x .179 HDN

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

14

186599C92

SUPPORT ASSY.

SUPPORT ASSY, pivot, includes ref. no. 12

1шт.

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

25712R1

WASHER

.812 x 1.500 x .179 HDN

1шт.

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

3/4 x 5-1/2 PHC type 8

1шт.

15

1302625C1

CHANNEL

combine tow

1шт.

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 PHC flange lock type 8

1шт.

16

186045C2

EXTENSION ASSY.

EXTENSION ASSY, axle, for wide adjustable

2шт.

16

1865952C

EXTENSION ASSY, axle, for narrow adjustable

2шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

NLS

NO LONGER SERVICED

BOLT, 3/4 x 4-1/2 type 5

1шт.

17

186317C2

AXLE

ASSY, wide adjustable, 92 to 120 in., 2336.8mm to 3048.0mm, for grain, for use w/stationary shield

1шт.

17

1302522C2

STEERING AXLE

AXLE ASSY, wide adjustable, 92 to 120 in., 2336.8mm to 3048.0mm, for corn and rice, for use w/oscillating shield

1шт.

17

186593C1

HITCH PIN

AXLE ASSY, narrow adjustable, 68 to 88 in., 1727.2mm to 2235.2mm, for use w/stationary shield, Serial Range: -1500

1шт.

17

182797C3

AXLE

ASSY, narrow adjustable, 68 to 88 in., 1727.2mm to 2235.2mm, for corn and rice, for use w/oscillating shield, Start Serial: 1501

1шт.

17

1302492C2

SHAFT

AXLE ASSY, narrow adjustable, 68 to 88 in., 1727.2mm to 2235.2mm, for grain, for use w/stationary shield, Start Serial: 1501

1шт.

18

186574C1

ANCHOR

steering cylinder, 92 to 120 in., Serial Range: 2336.8mm-3048.0mm

1шт.

18

186598C1

BRACKET

ANCHOR, steering cylinder, 68 to 88 in., Serial Range: 1727.2mm-2235.2mm

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

26523R1

BOLT,Hex, 3/4" - 10 x 5 1/4", Gr 8

3/4 x 5-1/4 PHC type 8

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

1шт.

19

596829R91

BEARING ASSY,2.014" ID x 2.9475" OD x 0.635"

ASSY, knuckle thrust

2шт.

20

169329C91

OIL SEAL,63.3mm ID x 95.81mm OD x 8mm Thk

knuckle oil

2шт.

21

169328C1

SLEEVE

RING, steering hub oil seal wear

2шт.

22

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

BEARING ASSY, hub inner cone

2шт.

23

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, hub inner cup

2шт.

24

169293C11

HUB

ASSY, axle, includes ref nos. 21, 23, 25, 26 and 27

2шт.

25

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

hub

16шт.

26

554480R1

WHEEL NUT

wheel hub bolt

16шт.

27

663558R1

BEARING CUP

BEARING, hub outer cup

2шт.

28

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING ASSY, hub outer cone

2шт.

29

560950R1

HUB CAP

CAP, hub

2шт.

30

A31186

BOOT

SEAL, tie rod stud, replaces 180800C1

2шт.

31

180799C91

TIE-ROD

END ASSY, tie rod LH, Inc. 30, for wide adjustable

1шт.

31

180803C91

JOINT

END ASSY, tie rod LH, 30, for narrow adjustable

1шт.

25779R1

BOLT,Hex, 3/8" - 24 x 3", Gr 8

3/8-NF x 3 PHC type 8

1шт.

32

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

33

A43369

CLAMP

WASHER, tie rod end clamp LH, replaces 180586C1

4шт.

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.

34

446308C91

CLAMP

tie rod end RH, 1-3/8 in. ID, or

1шт.

34

1319476C91

CLAMP

tie rod end RH, 1-1/2 in. ID

1шт.

35

180798C91

END ASSY.

END ASSY, tie rod RH, incldes ref. no. 30

1шт.

36

180801C1

TUBE

tie rod, 92 to 120 in., Serial Range: 2336.8mm-3048.0mm

1шт.

36

180802C1

TUBE,1.533" ID x 68.88" L

tie rod, 68 to 88 in., 1727.2mm to 2235.2mm

1шт.

37

186139C91

DRAG LINK

ROD ASSY, axle tie, Inc. 30 thru 36, 92 to 120 in., Serial Range: 2336.8mm-3048.0mm

1шт.

37

186603C91

ROD

ASSY, axle tie, includes ref. nos. 30 thru 36, 68 to 88 in., Serial Range: 1727.2mm-2235.2mm

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

358901R1

SLOTTED NUT

5/8-NF slt type 5

1шт.

38

185439C91

STEERING KNUCKLE

KNUCKLE ASSY, steering LH, Inc. 40

1шт.

38

185440C91

STEERING KNUCKLE

KNUCKLE ASSY, steering RH, Inc. 40

1шт.

427652

SLOTTED NUT,1"-14, G5

NUT, 1-NF slt type 5

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

39

87414

LUBE NIPPLE,1/4" - 28

FITTING, lub 1/4-28

4шт.

40

186680C1

BUSHING,50.93mm ID x 55.56mm OD x 50.8mm L

knuckle

4шт.

41

186052C1

PIN,50.8mm OD x 508mm L

ROD, steering knuckle king

2шт.

272083

BRACKET

1-1/2 pln slt type 5

1шт.

551293R1

WASHER

1-17/32 x 3 x 11 ga

1шт.

137318

COTTER PIN,1/4" x 3"

Pin, Split (Cotter). 1/4" x 3"

1шт.

42

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

axle pivot, Start Serial: 1501

1шт.

43

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

pivot support, Serial Range: -1500

1шт.

43

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING, pivot support, Start Serial: 1501

2шт.

44

1315447C2

SUPPORT

ASSY, steering axle, replaces 194078C1

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 type 8

1шт.

380916R1

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 8

3/4 x 1-1/2 type 8

1шт.

177744C1

FLANGE NUT,Flg, USR, 3/4"-10

3/4 PHC flange lock type 8

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

25712R1

WASHER

.812 x 1.500 x .179 HDN

1шт.

45

177748C1

SPACER

steering axle support 13/16 x 1-1/4 x 2-13/16

12шт.

46

1324514C1

BAR

rod spacer

1шт.
