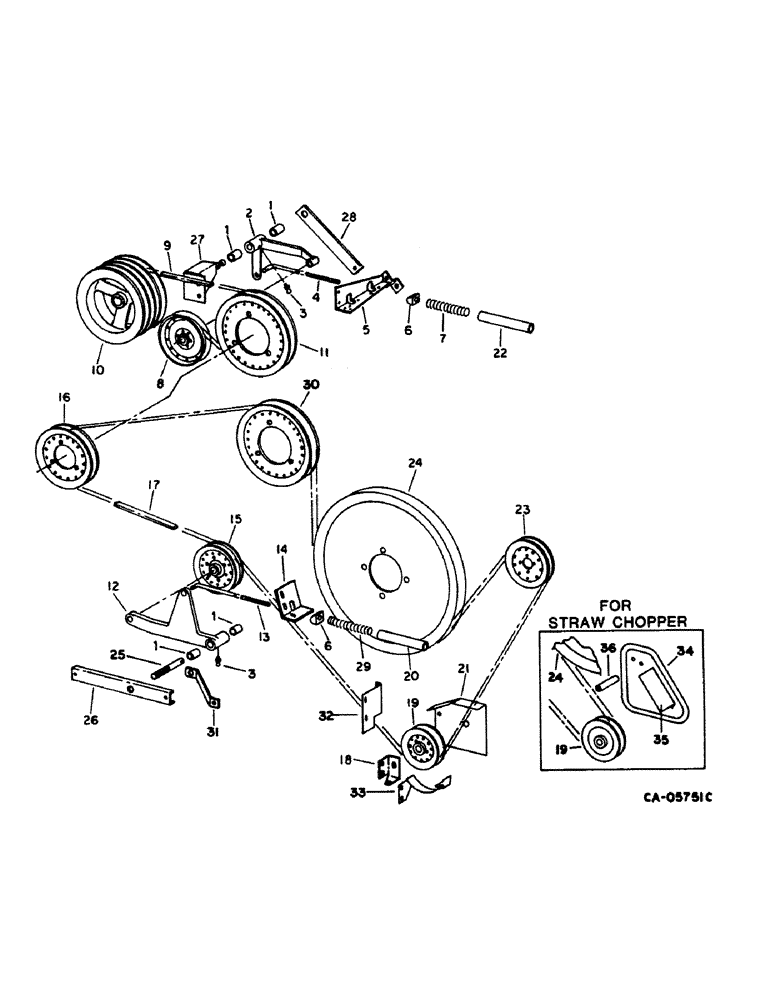

Запчасти Case IH 1480 (20-17) - SEPARATOR, BELT DRIVE - RH SIDE Separation

1

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

fan jackshaft drive

4шт.

2

194179C91

LEVER

ASSY, fan jackshaft drive, includes ref. no. 1

1шт.

131017

WASHER

.812 x 1.469 x .108

1шт.

3

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 str self-tap lub

2шт.

4

174520C2

ROD

fan jackshaft drive arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

22770R1

WASHER

.531 x 1.500 x .164

1шт.

5

188485C1

SUPPORT

ASSY, fan jackshaft drive rod

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

6

194652C1

PIVOT

BAR, pivot arm

2шт.

7

155311C1

SPRING

arm rod

1шт.

8

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

fan jackshaft drive idler, 8-3/4 in. OD, 222.2mm OD

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

1шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

9

188213C1

BELT

fan jackshaft drive, 127 in. OC, 3225.8mm OC

1шт.

10

193999C1

PULLEY

feeder drive, 12 in. OD, 304.8mm OD

1шт.

11

194777C1

PULLEY

ASSY, cleaning unit driven, 13.00 in OD, 330.2mm OD, Serial Range: -14000

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

25709R1

WASHER

.406 x .812 x .089 HDN

3шт.

11

183325C1

PULLEY

ASSY, cleaning unit driven, 13.00 in. OD, 330.2mm OD, Start Serial: 14001

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

142619H

WASHER

.406 x .750 x .105

1шт.

12

193447C91

ARM

LEVER ASSY, elevator jackshaft idler, includes ref. no. 1

1шт.

NLS

NO LONGER SERVICED

.812 x 1.469 x .108

1шт.

13

192359C1

ROD

elevator drive idler lever, for discharge beater

1шт.

13

181145C1

ROD

cleaning unit drive, for straw chopper

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

25710R1

WASHER

.531 x 1.062 x .134 HDN

1шт.

22191R1

WASHER

.531 x 1.750 x .164

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

14

186489C1

ANGLE

elevator drive bar

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27309R1

WASHER

WASER, .344 x .688 x .051 pln

1шт.

15

673214R91

PULLEY

ASSY, elevator idler, 7.3 in. OD, 185.4mm OD

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

16

193948C1

PULLEY,39.61mm W x 254mm OD

ASSY, jackshaft drive, 9.75 in. OD, 247.7mm OD

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21843R1

WASHER

.406 x 1.000 x .209

1шт.

17

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Elevator drive, OC, For use w/discharge beater 0.879" W x 255.99" L

1шт.

17

181055C1

BELT,0.879" W x 200.99" L

V-BELT , Cleaning unit drive, OC, For use w/straw chopper 0.879" W x 200.99" L

1шт.

18

188253C2

SUPPORT

elevator drive fixed idler, replaces 1304455C1

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

673214R91

PULLEY

elevator drive fixed idler, 7.3 in. OD, 185.4mm OD

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

1шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 type 5

1шт.

124847

COLLAR

5/8 jam type 5

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

.656 x 1.312 x .150 PHC HDN

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

186515C1

ELEVATOR TUBE

TUBE, elevator drive spring

1шт.

21

188254C1

SUPPORT

drive fixed idler, Serial Range: 1501-24000

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

21

1302350C1

SHIELD

elev. fixed idler, not straw chopper, Start Serial: 24001

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

22

185396C1

TUBE,34.93 mm OD, 228.6 mm Length

fan jackshaft idler spring

1шт.

23

195161C1

PULLEY

ASSY, beater drive, 8.38 in. OD, 212.9mm OD

1шт.

120376

NUT,5/16"-18, G5

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

193682C1

PULLEY

ASSY, shaker shaft driven, 25 in. OD, 635.0mm OD

1шт.

104234

RIVET,FH, 3/16" x 3/8"

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

188298C2

STUD

jackshaft pivot arm

1шт.

280954

NUT,3/4"-10, G5

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

26

186588C2

CHANNEL

pivot arm support

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

27

192277C1

SUPPORT

fan jackshaft idler drive

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

28

188486C1

CHANNEL

outer fan pivot

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

195086C1

SPRING

elevator drive idler lever

1шт.

30

180954C91

PACKAGE

PULLEY AND HUB, elevator drn package, consists of, Serial Range: -1500

1шт.

183210C91

HUB

ASSY, slip clutch

1шт.

183212C1

HUB ASSY.

HUB, plate

1шт.

183325C1

PULLEY

jackshaft driven

1шт.

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

clutch hub

1шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8 x 6 type 5

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 CAD P/T lock type 5 instructions (NSS)

1шт.

30

183325C1

PULLEY

ASSY, jackshaft driven, 13.00 in. OD, 330.2mm OD, Start Serial: 1501

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

9413979

LOCK NUT,3/8"-16, GC

NUT, 3/8 PHC P/T lock type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

31

182676C2

SUPPORT

elevator pivot

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

25932R1

JAM NUT,Jam, 3/8"-16, G5

3/8 PHC jam type 8

1шт.

32

1302067C1

GUIDE

elevator belt upper, Serial Range: -2400

1шт.

32

1302352C1

GUIDE

elev. belt upper, for combines, Start Serial: 24001

1шт.

32

1302352C1

GUIDE

elev. belt upper, w/straw chopper, Serial Range: -24000

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

21403R1

WASHER

.406 x 1.000 x .120

1шт.

33

1302068C2

GUIDE

elevator belt lower

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

34

1302353C1

GUARD

SHIELD, elevator fixed idler, Start Serial: 24001

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

35

1302351C1

DEFLECTOR

elevator rear shield, Start Serial: 24001

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

36

564737R1

SPACER,7/8" Tube x 2 1/16"

.656 x .88 x 2.06, Start Serial: 24001

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

534939R1

WASHER

.656 x 2.5 x .105 pln

1шт.
