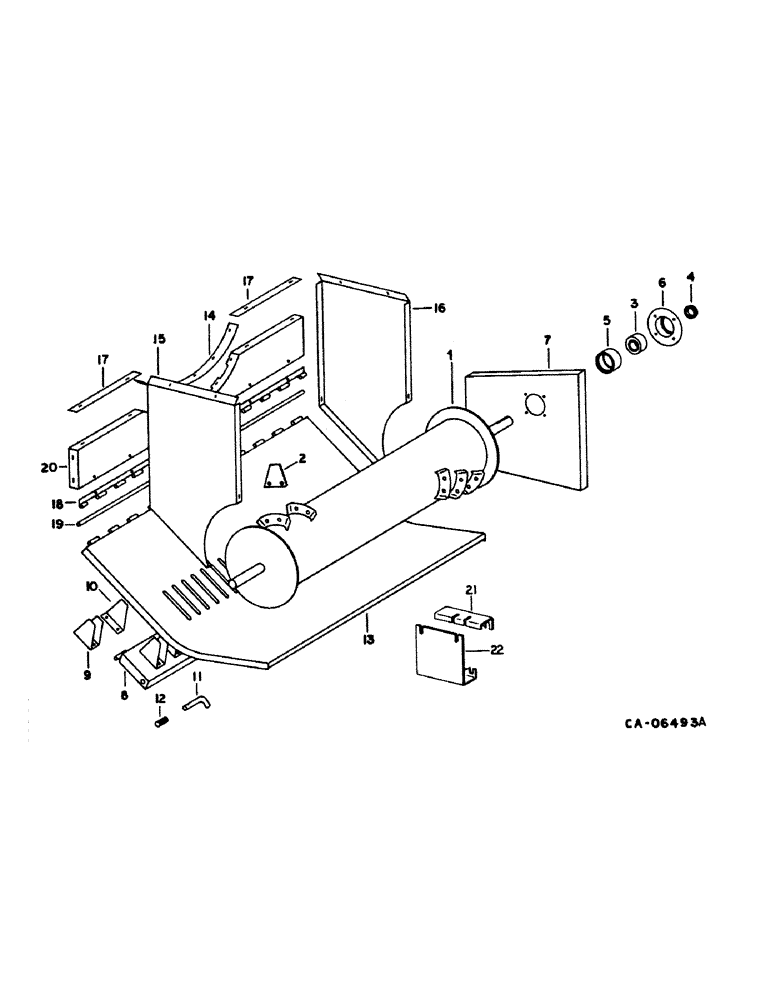

Запчасти Case IH 1480 (20-15) - SEPARATOR, STRAW CHOPPER ROTOR AND CONCAVE Separation

1

185158C91

ROTOR

ASSY, straw chopper

1шт.

26963R1

NUT,7/8"-14, G8

NUT, 7/8-NF slt type 8

1шт.

23071R1

WASHER

.906 x 2.000 x .164

1шт.

21779R1

WASHER

1.344 x 2.000 x .105

1шт.

21290R1

WASHER

1.34 x 2.000 x .054

1шт.

2

197124C1

PACKAGE

BLADE, straw chopper rotor, set of 2

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 PHC flange lock type 8

1шт.

26963R1

NUT,7/8"-14, G8

NUT, 7/8-NF slt type 8

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

3

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING ASSY

2шт.

4

455112R11

COLLAR

ASSY, bearing

2шт.

5

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

straw chopper bearing

2шт.

6

936130R1

FLANGE

bearing

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

181057C1

SUPPORT

ASSY, chopper LH

1шт.

7

181058C1

SUPPORT

ASSY, chopper RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

8

185135C91

BAR

ASSY, straw chopper concave, includes ref nos. 9 and 10

1шт.

9

1302763C1

KNIFE

BLADE, chopper concave

12шт.

10

1302764C1

KNIFE

BLADE, chopper concave

1шт.

11

186736C1

ROD

chopper concave bar

2шт.

121224

SUPPORT

3/32" x 1"

1шт.

25709R1

WASHER

.406 x .812 x .089 HDN

1шт.

12

540815R1

SPRING

concave bar

2шт.

13

181147C2

PLATE

BOTTOM ASSY, straw chopper deflector

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

.406 x 1.125 x .134 PHC HDN

1шт.

14

182950C1

SUPPORT

cage filler rear, standard on rice

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

15

182948C2

DEFLECTOR

discharge LH, standard on rice

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

16

182949C2

DEFLECTOR

discharge RH, standard on rice

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

17

182895C1

FILLER

BAR, bulkhead rear, standard on rice

2шт.

18

182893C1

HINGE

straw chopper concave, standard on rice

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

19

182980C1

ROD,11.11mm OD x 1556mm L

concave hinge, standard on rice

1шт.

20

SUPPORT, rear, refer to group 21 under cage

1шт.

21

181209C1

SUPPORT

sensor

1шт.

25933R1

JAM NUT,Jam, 1/2"-13, G8

1/2 PHC jam type 8

1шт.

22

181208C1

SUPPORT

shaft

1шт.

25933R1

JAM NUT,Jam, 1/2"-13, G8

1/2 PHC jam type 8

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.
